Descriere

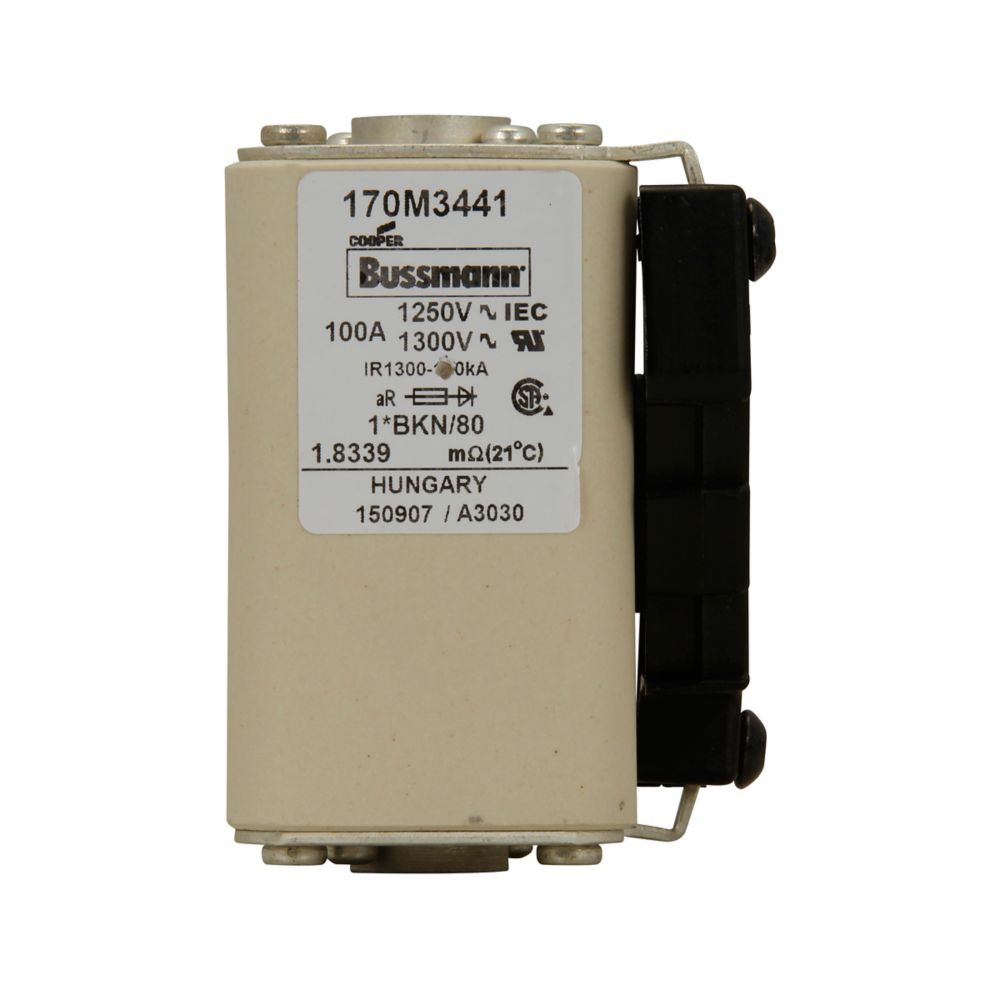

Fuse, Fuse-link, high speed, 100 A, AC 1250 V, compact size 1, 45 x 59 x 81 mm, aR, IEC, UL, single indicator, square body with flush end contacts, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | IEC 60269-4 flush end connections type A |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 1250 |
| Rated voltage DC | - |
| Rated current | 100 |
| Breaking capacity | 100 |
| Power loss at rated current | 30 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 74 |
| Package 1 | |
| volume | 0,00089976 |
| weight | 0,393333 |
| length | 0,094 |
| width | 0,165 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516010662 |
| Package 2 | |
| volume | 0,00104975 |
| weight | 1,18 |
| length | 0,17 |
| width | 0,095 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| Dimensions of product | |
| Volume | 0,00089976 |
| Weight | 0,000885 |
| Length | 0,092 |
| Width | 0,163 |
| Depth | 0,06 |
