Descriere

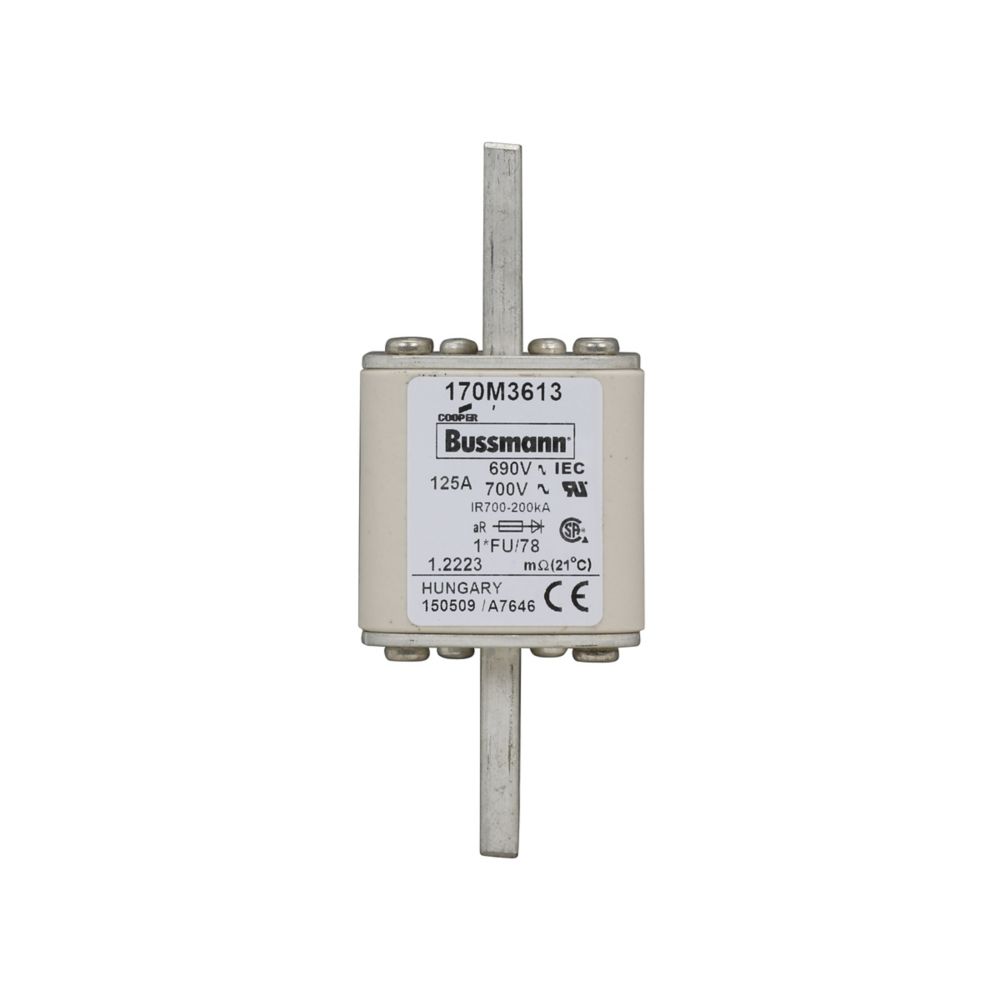

Fuse, Fuse-link, high speed, 125 A, AC 690 V, compact size 1, 45 x 45 x 110 mm, aR, IEC, UL, square body with centre-bolted tags, US style, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 1 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 125 |
| Breaking capacity | 200 |
| Power loss at rated current | 26 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 78.5 |
| Package 1 | |
| volume | 0,002875 |
| weight | 0,319 |
| length | 0,307 |
| width | 0,147 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590448642 |
| Package 2 | |
| volume | 0,01724775 |
| weight | 1,914 |
| length | 0,305 |
| width | 0,145 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5996516011072 |
| Dimensions of product | |
| Volume | 0,002875 |
| Weight | 0,319 |
| Length | 0,305 |
| Width | 0,145 |
| Depth | 0,065 |
