Descriere

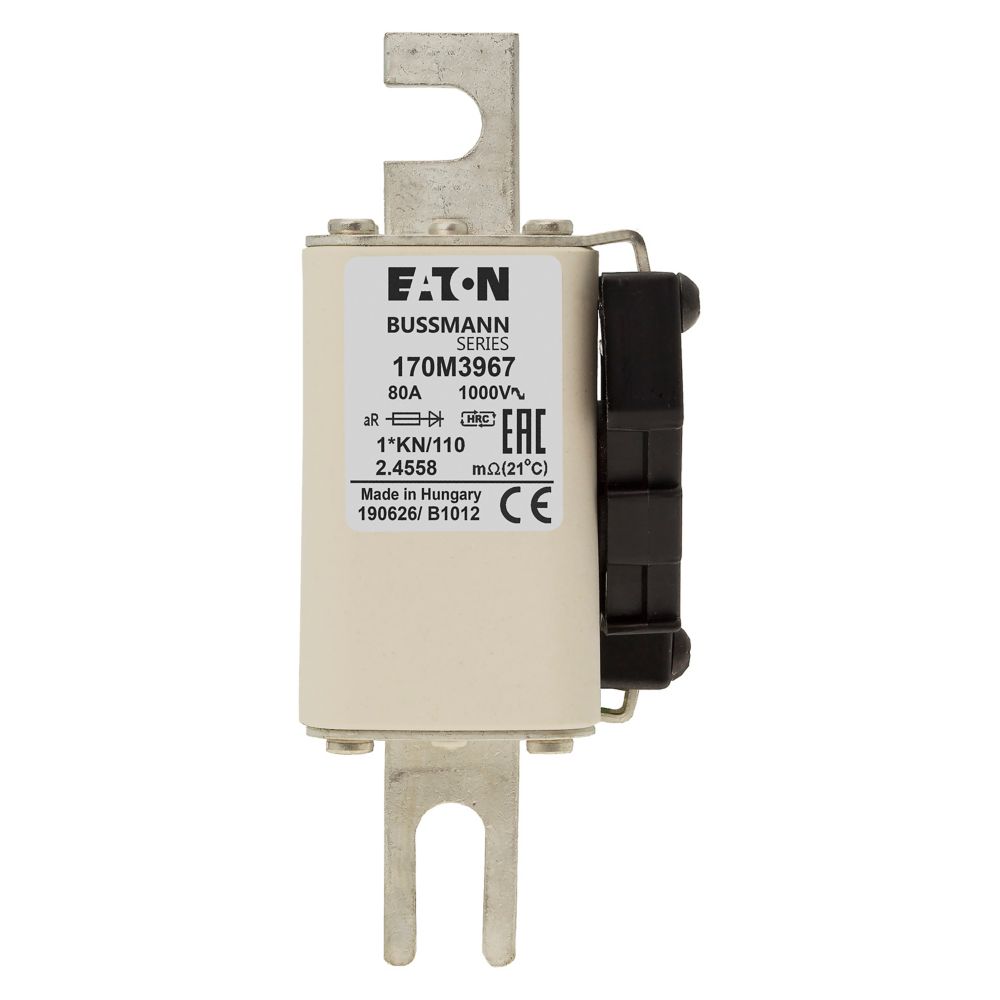

Fuse, Fuse-link, high speed, 80 A, AC 1000 V, compact DIN 1, 43 x 61 x 138 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style K for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 150 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 1000 |
| Rated voltage DC | - |
| Rated current | 80 |
| Breaking capacity | 125 |
| Power loss at rated current | 30 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 106 |
| Package 1 | |
| volume | 0,002553 |
| weight | 0,9 |
| length | 0,292 |
| width | 0,144 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590450669 |
| Package 2 | |
| volume | 0,01531896 |
| weight | 5,4 |
| length | 0,29 |
| width | 0,142 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5996516027776 |
| Dimensions of product | |
| Volume | 0,002553 |
| Weight | 0,0009 |
| Length | 0,29 |
| Width | 0,142 |
| Depth | 0,062 |
