Descriere

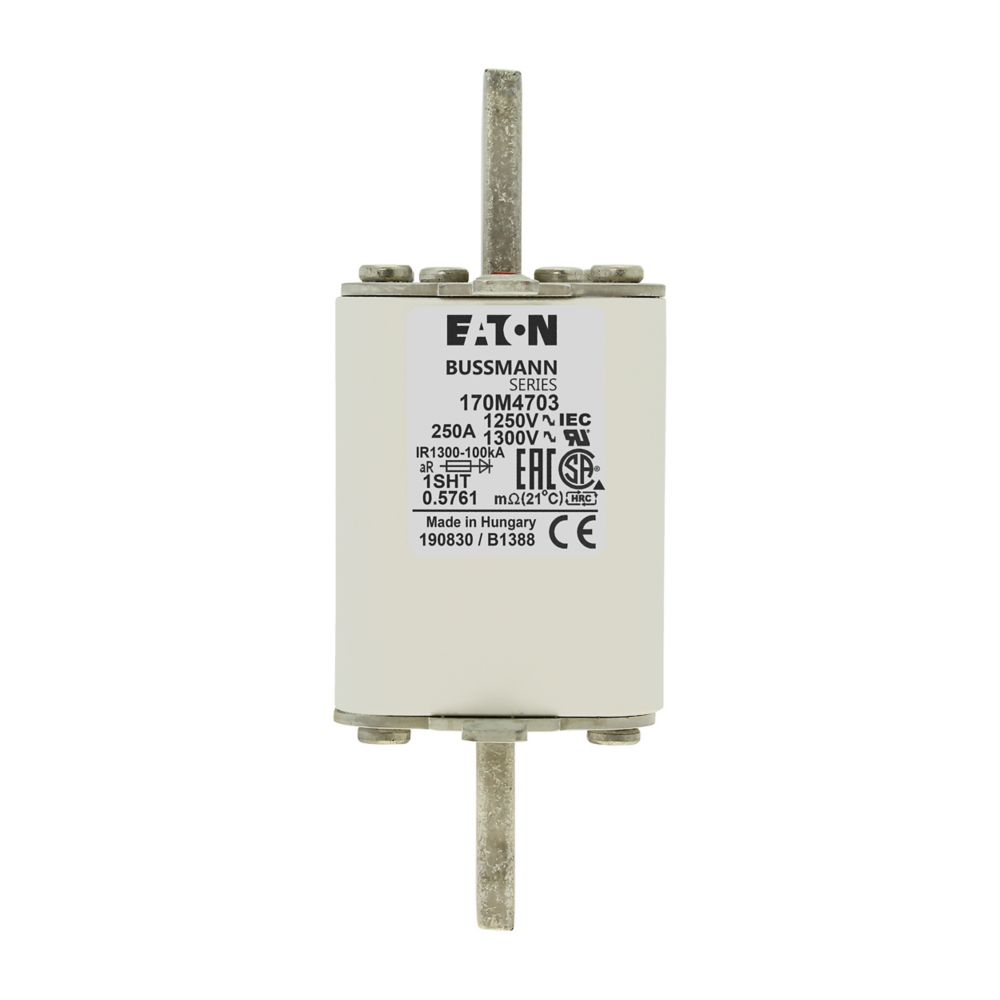

Fuse, Fuse-link, high speed, 250 A, AC 1250 V, size 1, 53 x 63 x 135 mm, aR, IEC, single indicator, square body with special bladed contacts, live gripping lugs, indicator style T for microswitch, Special type, semiconductor protection, IEC 60269-4, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 1 |
| Rated voltage AC | 1250 |
| Rated voltage DC | - |
| Rated current | 250 |
| Breaking capacity | 100 |
| Power loss at rated current | 60 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | - |
| Connection | |
| Centre-to-centre distance of connections | - |
| Package 1 | |
| volume | 0,002157 |
| weight | 0,231 |
| length | 0,247 |
| width | 0,144 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590454001 |
| Package 2 | |
| volume | 0,00647094 |
| weight | 0,693 |
| length | 0,245 |
| width | 0,142 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5996516013793 |
| Package 3 | |
| volume | 0,018865 |
| weight | 92,89 |
| length | 0,385 |
| width | 0,28 |
| qmax | 142 |
| qmin | 142 |
| um | CT |
| Dimensions of product | |
| Volume | 0,002157 |
| Weight | 0,21 |
| Length | 0,245 |
| Width | 0,142 |
| Depth | 0,062 |
