Descriere

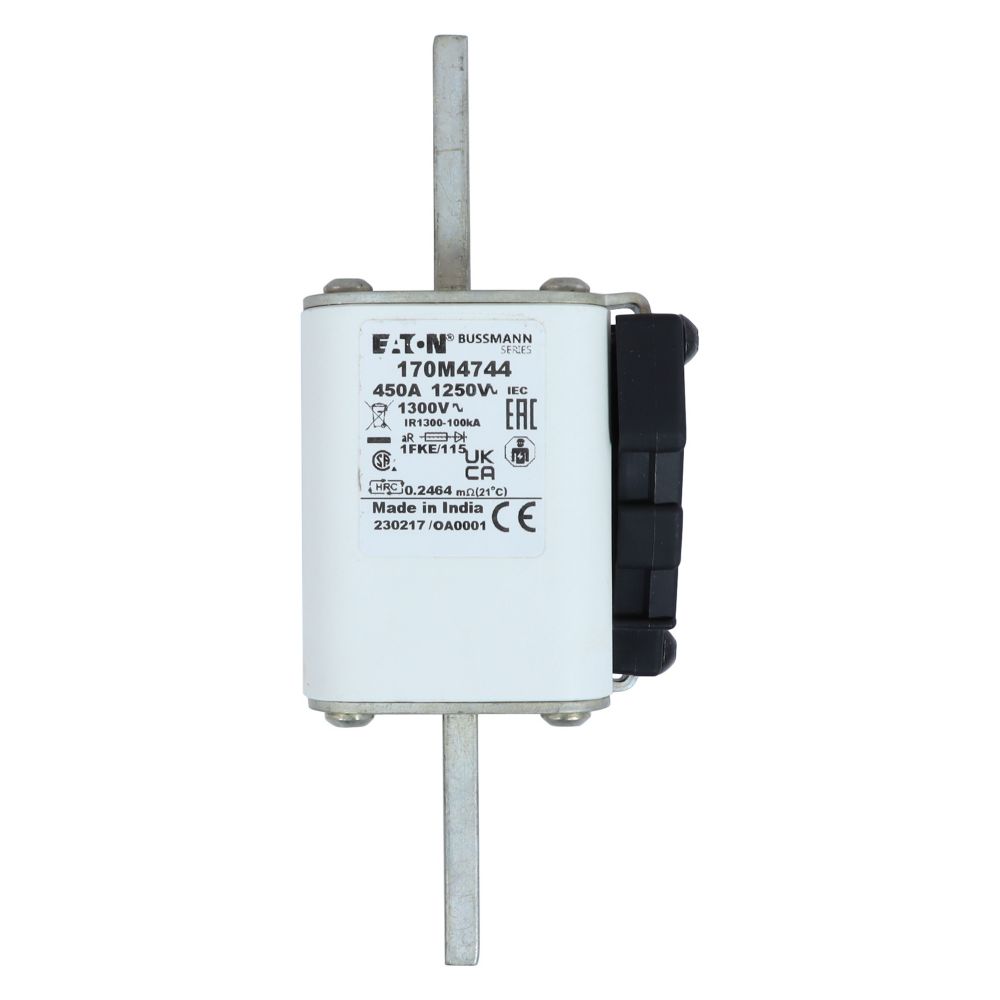

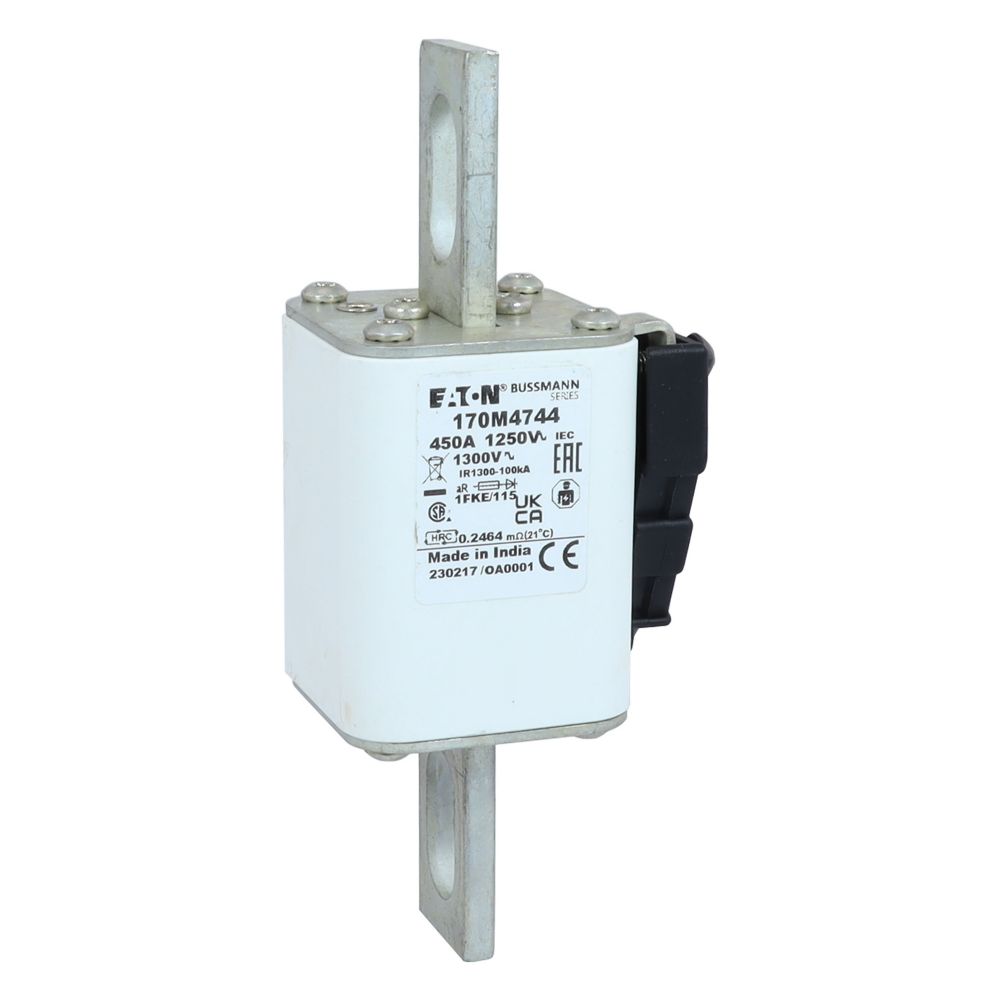

Fuse, Fuse-link, high speed, 450 A, AC 1250 V, size 1, 53 x 69 x 160 mm, aR, IEC, UL, single indicator, square body with centre-bolted tags, US style, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 1 |
| Rated voltage AC | 1250 |
| Rated voltage DC | - |
| Rated current | 450 |
| Breaking capacity | 100 |
| Power loss at rated current | 80 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M12 |
| Connection | |
| Centre-to-centre distance of connections | 115 |
| Package 1 | |
| volume | 0,0064532 |
| weight | 0,688 |
| length | 0,073 |
| width | 0,17 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516013953 |
| Package 2 | |
| volume | 0,018865 |
| weight | 9,632 |
| length | 0,385 |
| width | 0,28 |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 5027590349000 |
| Dimensions of product | |
| Volume | 0,00064532 |
| Weight | 0,622 |
| Length | 0,073 |
| Width | 0,17 |
| Depth | 0,052 |
