Descriere

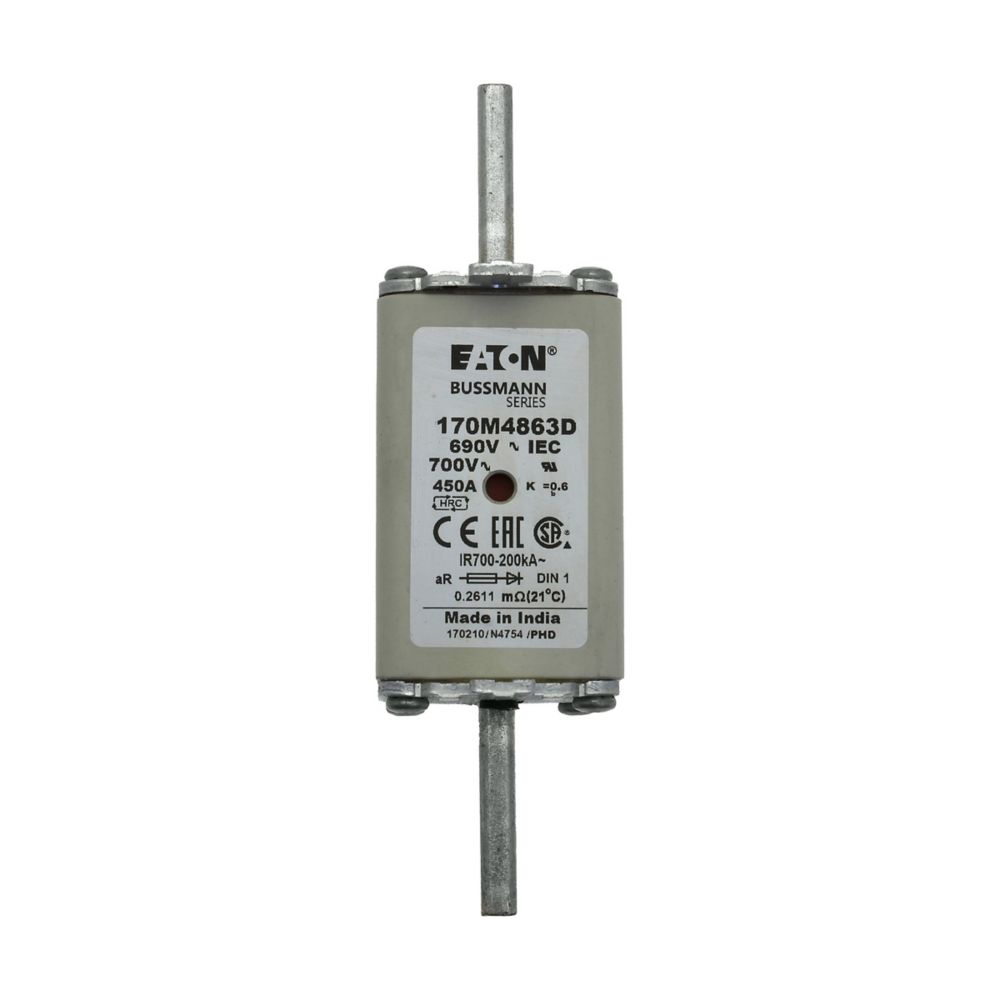

High speed square body fuse, Voltage rating: 690 V (IEC), 700 V (UL), Amperage rating: 450 A, Fuse size: 1, Fuse indicator: Combination fuse status indicator, Fuse shape: Square body, knife blade contacts, DIN 43620, Utilization category: aR (accompanied semiconductor protection)
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 1 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 450 |
| Breaking capacity | 200 |
| Power loss at rated current | 26.3 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Combination fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | - |
| Connection | |
| Centre-to-centre distance of connections | - |
| Package 1 | |
| volume | 0,0003456 |
| weight | 0,426667 |
| length | 0,137 |
| width | 0,042 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590454841 |
| Package 2 | |
| volume | 0,0029029 |
| weight | 2,56 |
| length | 0,29 |
| width | 0,143 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590252461 |
| Package 3 | |
| volume | 0,018865 |
| weight | 10,684 |
| length | 0,385 |
| width | 0,28 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 5027590352758 |
| Dimensions of product | |
| Volume | 0,0003456 |
| Weight | 0,427 |
| Length | 0,135 |
| Width | 0,04 |
| Depth | 0,064 |
