Descriere

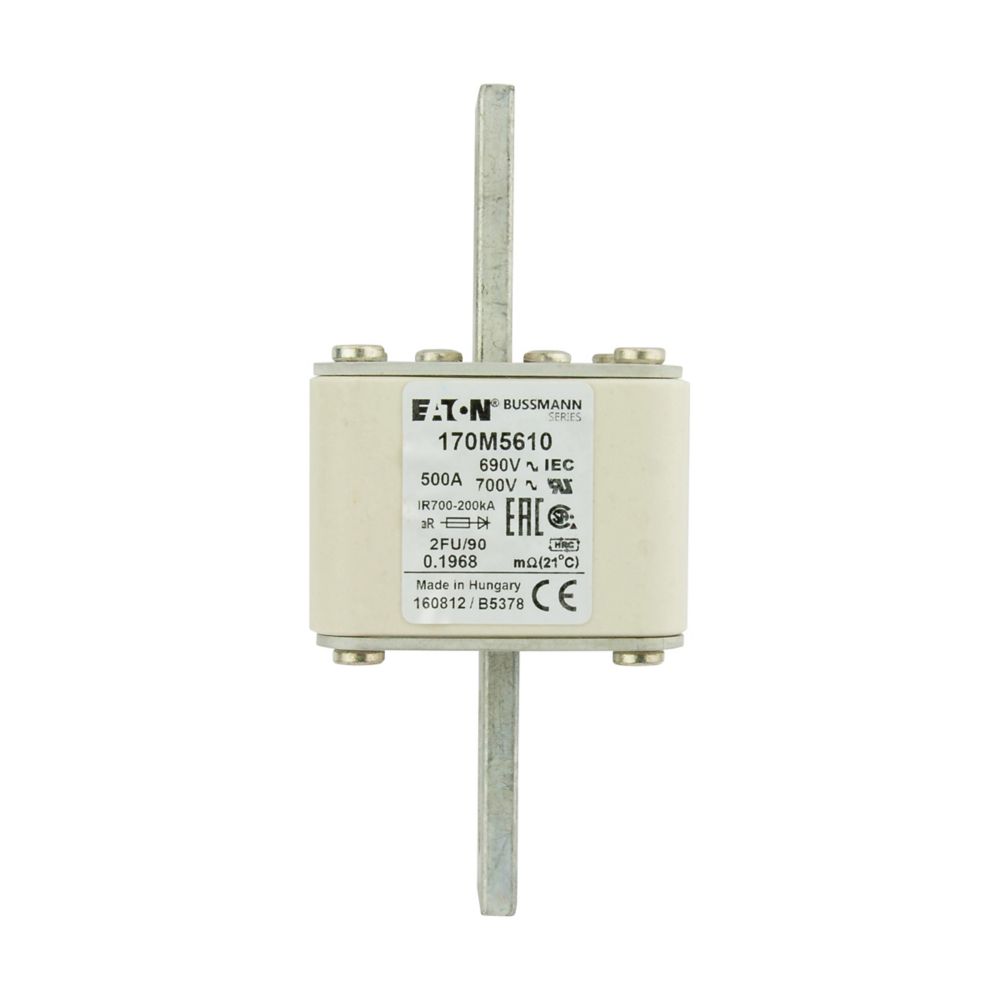

High speed square body fuse, Voltage rating: 690 V, Amperage rating: 500 A, Fuse size: 2, Fuse indicator: None, Fuse shape: Square body, center bolted tags, US Style, FU/Without indicator, Utilization category: aR (accompanied semiconductor protection)
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 2 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 500 |
| Breaking capacity | 200 |
| Power loss at rated current | 75 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M12 |
| Connection | |
| Centre-to-centre distance of connections | 90.9 |
| Package 1 | |
| volume | 0,001314 |
| weight | 0,318 |
| length | 0,137 |
| width | 0,167 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590457873 |
| Package 2 | |
| volume | 0,00311454 |
| weight | 0,954 |
| length | 0,286 |
| width | 0,165 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5996516016312 |
| Dimensions of product | |
| Volume | 0,001314 |
| Weight | 0,318 |
| Length | 0,135 |
| Width | 0,165 |
| Depth | 0,059 |
