Descriere

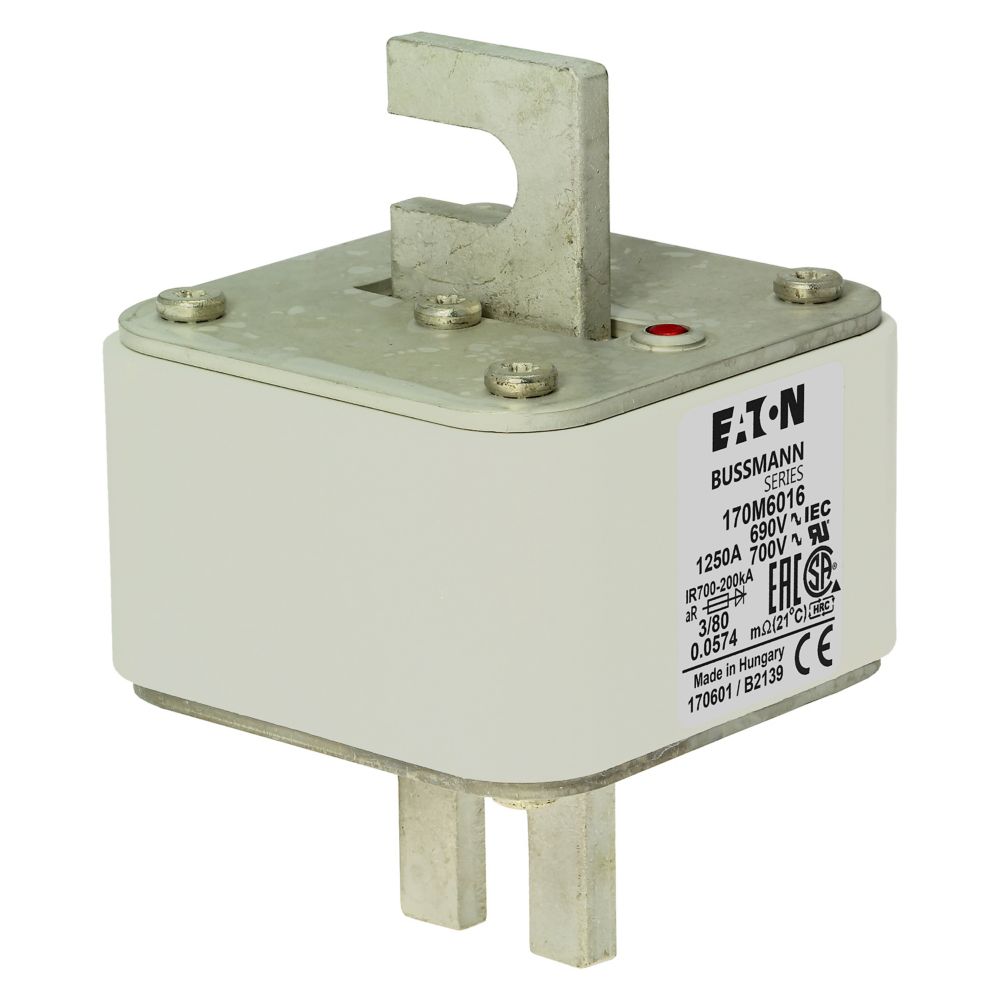

Fuse, Fuse-link, high speed, 1250 A, AC 690 V, DIN 3, 76 x 90 x 109 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style T for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 1250 |
| Breaking capacity | 200 |
| Power loss at rated current | 140 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 78 |
| Package 1 | |
| volume | 0,0010656 |
| weight | 2 |
| length | 0,09 |
| width | 0,16 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516017494 |
| Dimensions of product | |
| Volume | 0,001066 |
| Weight | 2 |
| Length | 0,09 |
| Width | 0,16 |
| Depth | 0,074 |
