Descriere

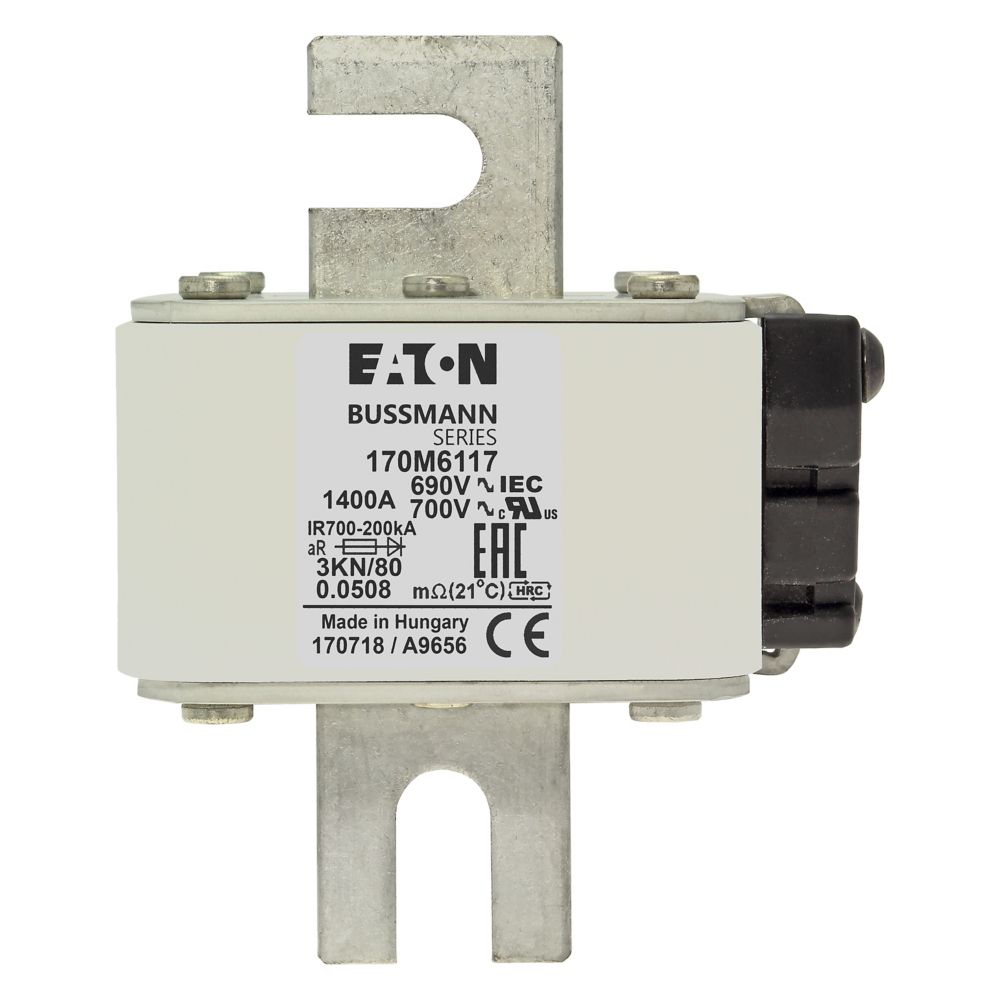

Fuse, Fuse-link, high speed, 1400 A, AC 690 V, DIN 3, aR, DIN, IEC, single (top) indicator system, square body with offset bolted tags (slotted), live gripping lugs, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 1400 |
| Breaking capacity | 200 |
| Power loss at rated current | 155 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 78 |
| Package 1 | |
| volume | 0,00121296 |
| weight | 0,912 |
| length | 0,168 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516017807 |
| Dimensions of product | |
| Volume | 0,00036018 |
| Weight | 0,912 |
| Length | 0,138 |
| Width | 0,058 |
| Depth | 0,045 |
