Descriere

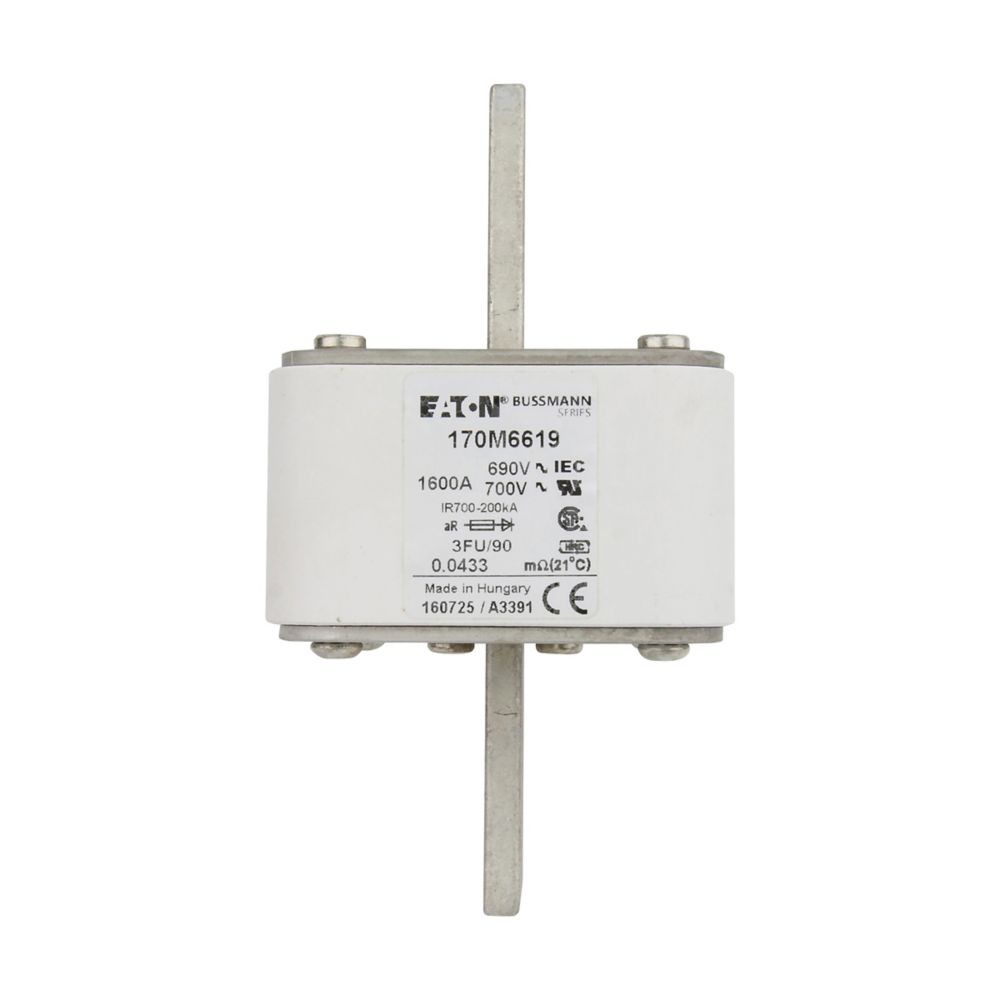

Fuse, Fuse-link, high speed, 1600 A, AC 690 V, size 3, 76 x 92 x 135 mm, aR, IEC, UL, square body with centre-bolted tags, US style, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 1600 |
| Breaking capacity | 200 |
| Power loss at rated current | 160 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | Other |
| Connection | |
| Centre-to-centre distance of connections | 91.3 |
| Package 1 | |
| volume | 0,00124032 |
| weight | 1,234 |
| length | 0,17 |
| width | 0,096 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5704057035712 |
| Dimensions of product | |
| Volume | 0,00124 |
| Weight | 1,234 |
| Length | 0,17 |
| Width | 0,096 |
| Depth | 0,076 |
