Descriere

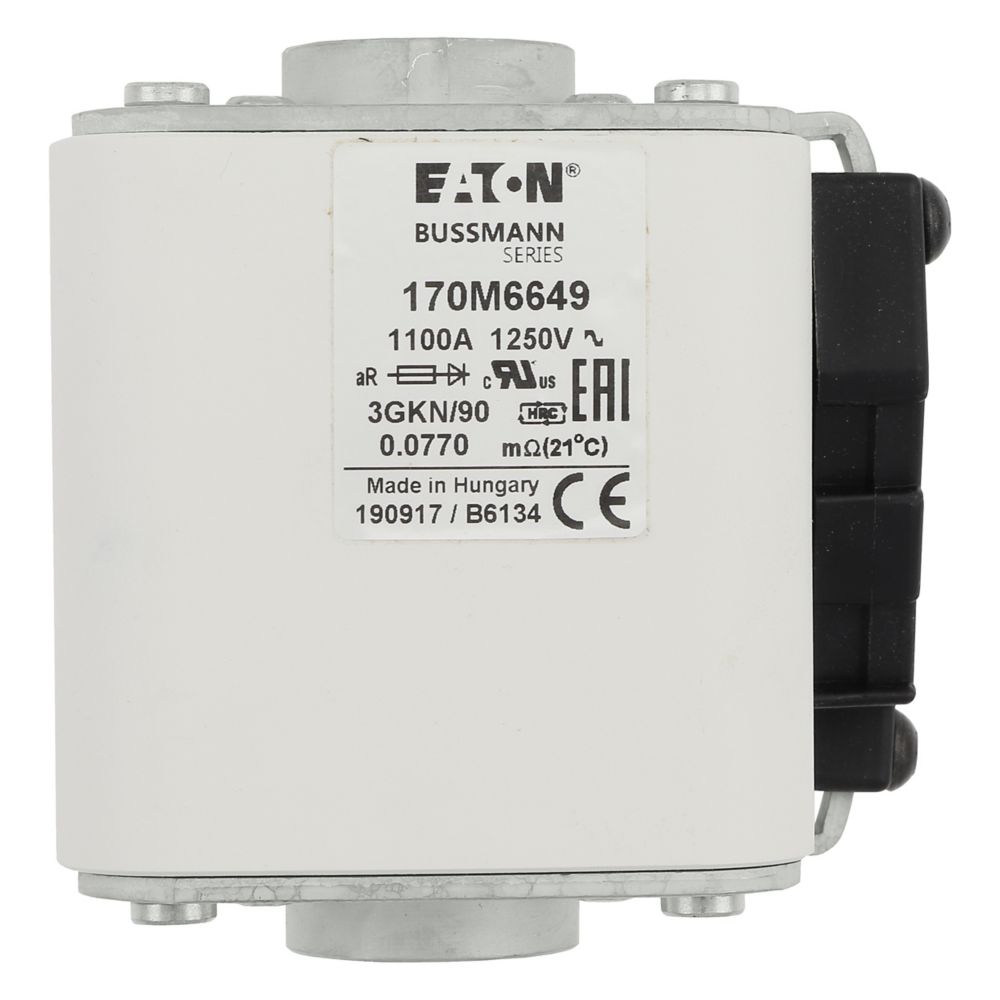

Fuse-link, high speed, 1100 A, AC 1250 V, size 3, 76 x 92 x 91 mm, aR, IEC, UL, single indicator, US thread
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | 1250 |
| Rated voltage DC | - |
| Rated current | 1100 |
| Breaking capacity | 100 |
| Power loss at rated current | 140 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | Other |
| Connection | |
| Centre-to-centre distance of connections | 91.4 |
| Package 1 | |
| volume | 0,0010656 |
| weight | 1,4 |
| length | 0,16 |
| width | 0,09 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516020241 |
| Dimensions of product | |
| Volume | 0,001355 |
| Weight | 1,3 |
| Length | 0,098 |
| Width | 0,175 |
| Depth | 0,079 |
