Descriere

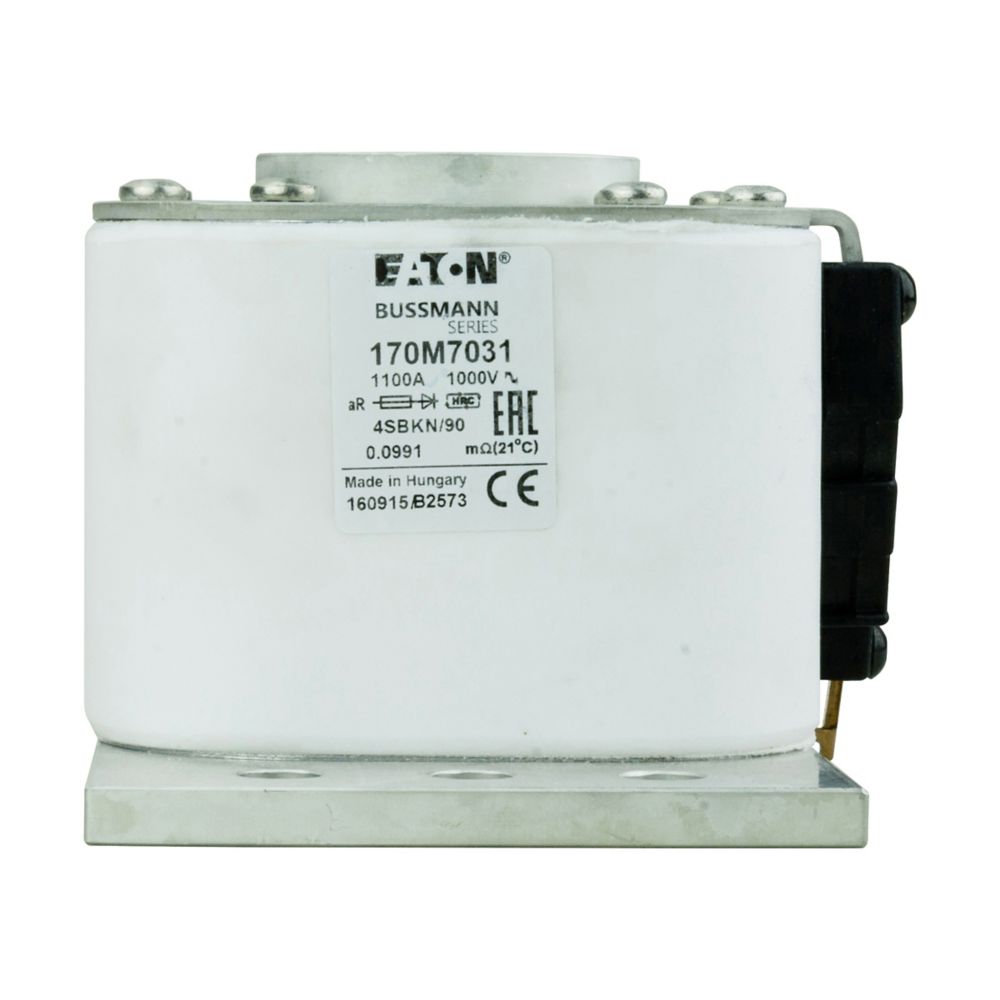

Fuse-link, high speed, 1100 A, AC 1000 V, 200 kA, size 4, 100 x 133 x 90 mm, aR, IEC, type K indicator
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 4 |
| Rated voltage AC | 1000 |
| Rated voltage DC | - |
| Rated current | 3000 |
| Breaking capacity | 200 |
| Power loss at rated current | 200 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 61.4 |
| Package 1 | |
| volume | 0,00328048 |
| weight | 3,5 |
| length | 0,202 |
| width | 0,14 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516020920 |
| Dimensions of product | |
| Volume | 0,00097356 |
| Weight | 3,329 |
| Length | 0,061 |
| Width | 0,133 |
| Depth | 0,12 |
