Descriere

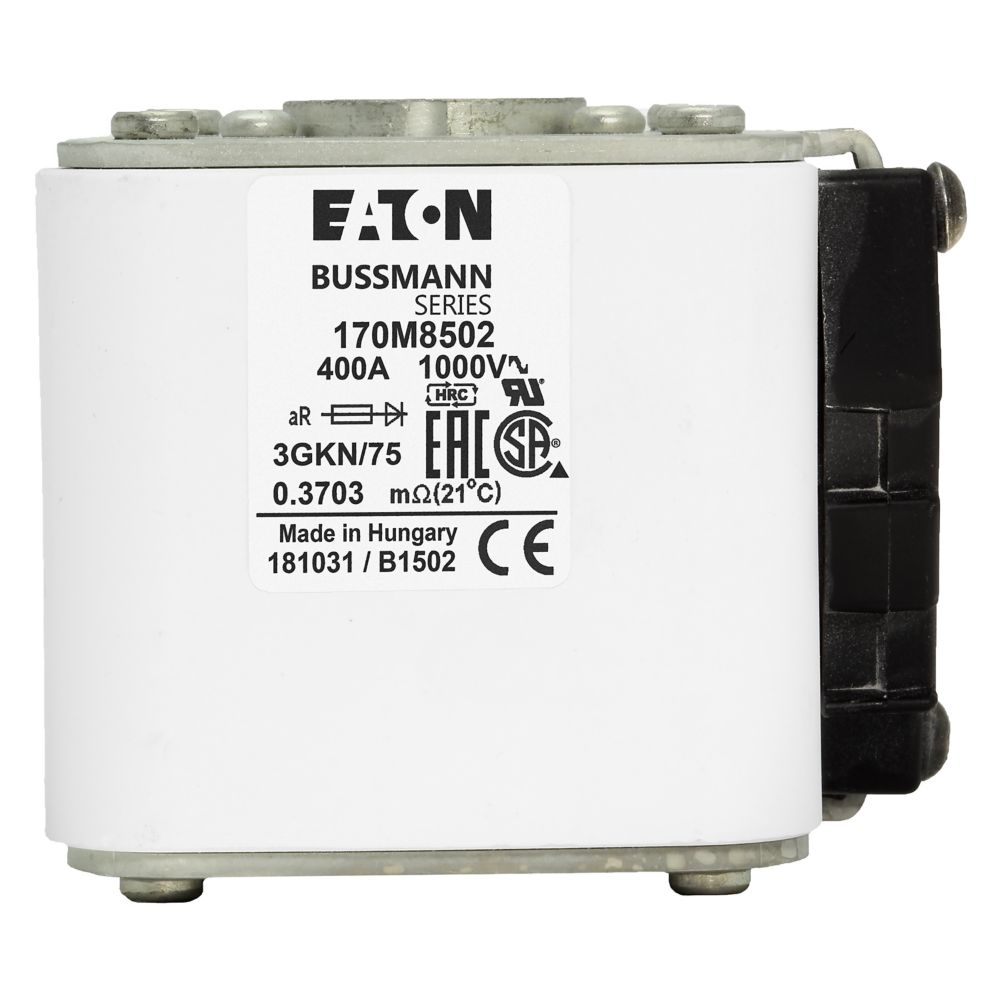

Fuse-link, high speed, 400A, AC 1000 V, 150 kAIC, Top fuse status indicator, Fuse, Class aR, Flush
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | 1000 |
| Rated voltage DC | - |
| Rated current | 400 |
| Breaking capacity | 125 |
| Power loss at rated current | 105 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 75.4 |
| Package 1 | |
| volume | 0,001066 |
| weight | 0,915 |
| length | 0,092 |
| width | 0,162 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590464888 |
| Package 2 | |
| volume | 0,00121296 |
| weight | 1,83 |
| length | 0,168 |
| width | 0,095 |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 5027590327923 |
| Dimensions of product | |
| Volume | 0,001066 |
| Weight | 0,915 |
| Length | 0,09 |
| Width | 0,16 |
| Depth | 0,074 |
