Descriere

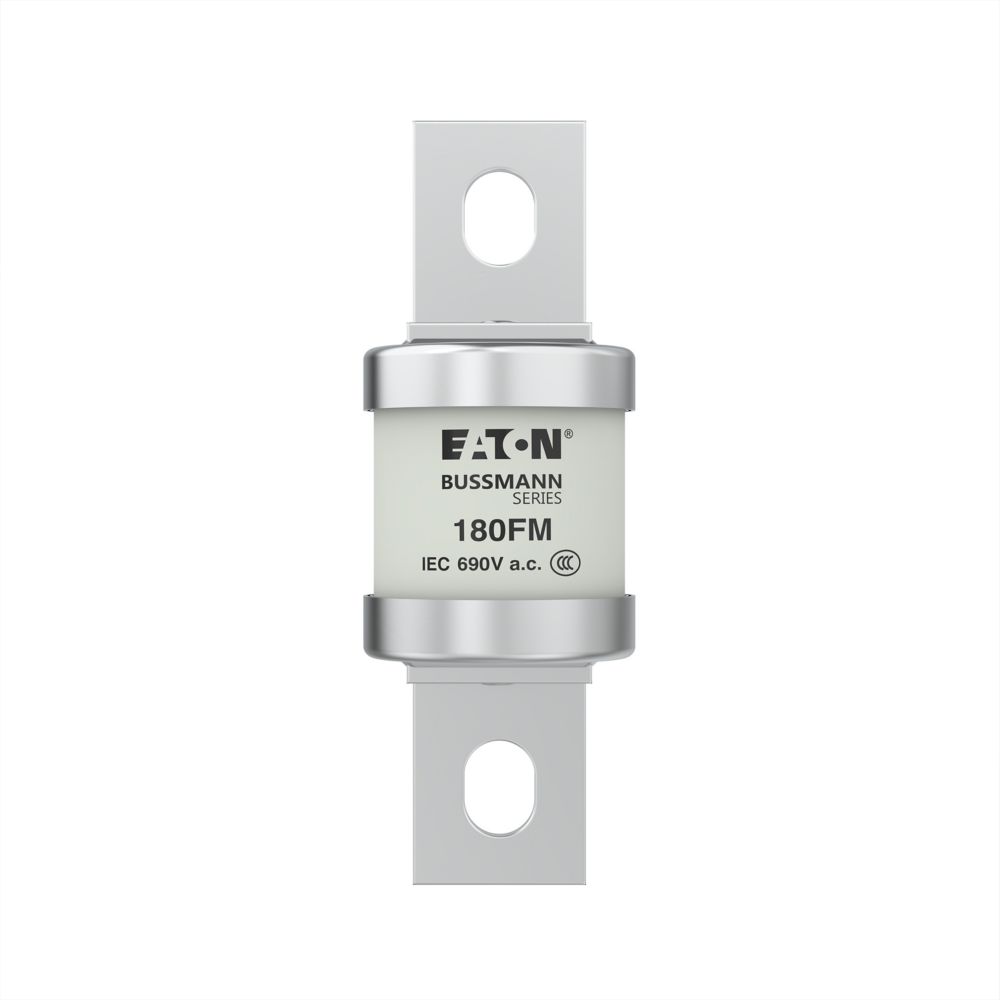

Fuse, Fuse-link, high speed, 180 A, AC 690 V, DC 450 V, BS88, 41 x 113 mm, aR, BS, offset bolted tags, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, BS88-4, IEC 60269-4, Breaking Capacity 200 kA, Optional accessories fuse-holder BH-1133
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 690 |
| Rated voltage DC | 450 |
| Rated current | 180 |
| Breaking capacity | 200 |
| Power loss at rated current | 40 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 84 |
| Package 1 | |
| volume | 0,00023805 |
| weight | 0,224 |
| length | 0,046 |
| width | 0,115 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590036221 |
| Package 2 | |
| volume | 0,018865 |
| weight | 10,664 |
| length | 0,385 |
| width | 0,28 |
| qmax | 45 |
| qmin | 45 |
| um | CT |
| gtin | 5027590356831 |
| Dimensions of product | |
| Volume | 0,00017035 |
| Weight | 0,224 |
| Length | 0,112 |
| Width | 0,039 |
| Depth | 0,039 |
