200NHG02B

Cod produs: 200NHG02B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590466608

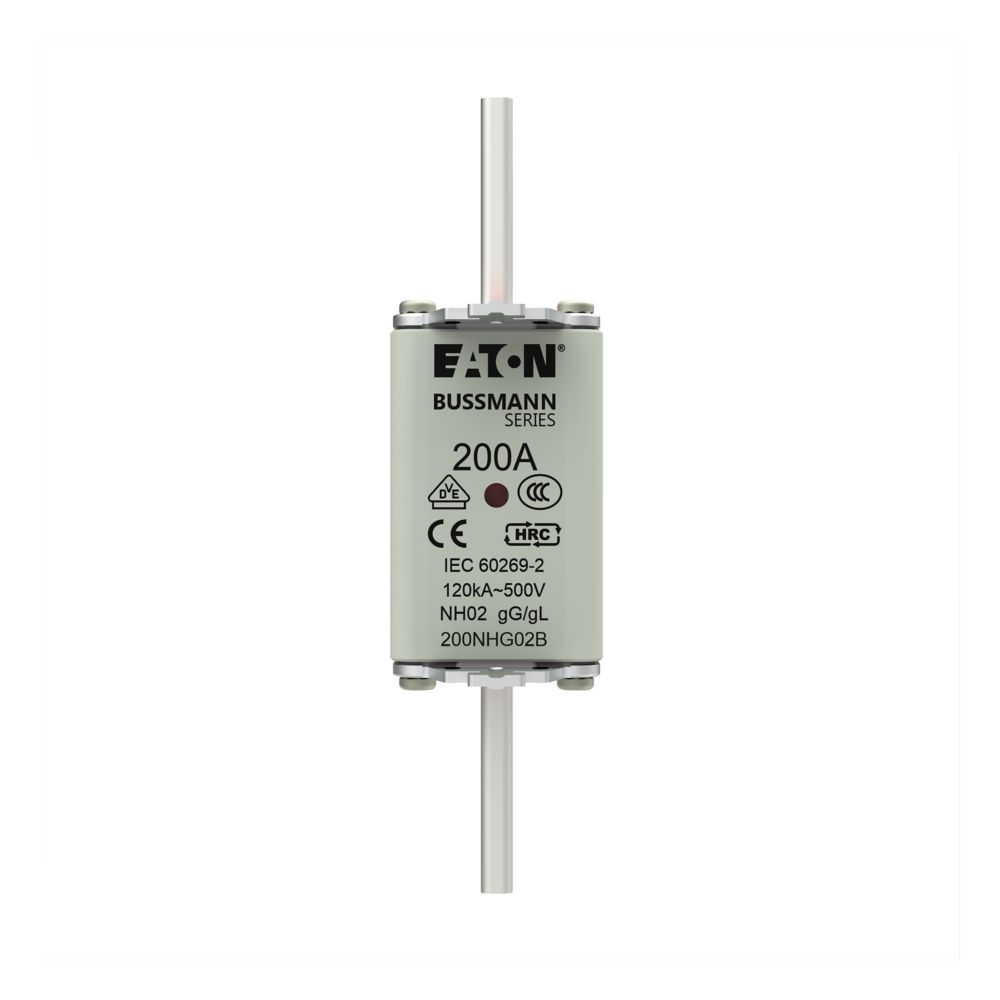

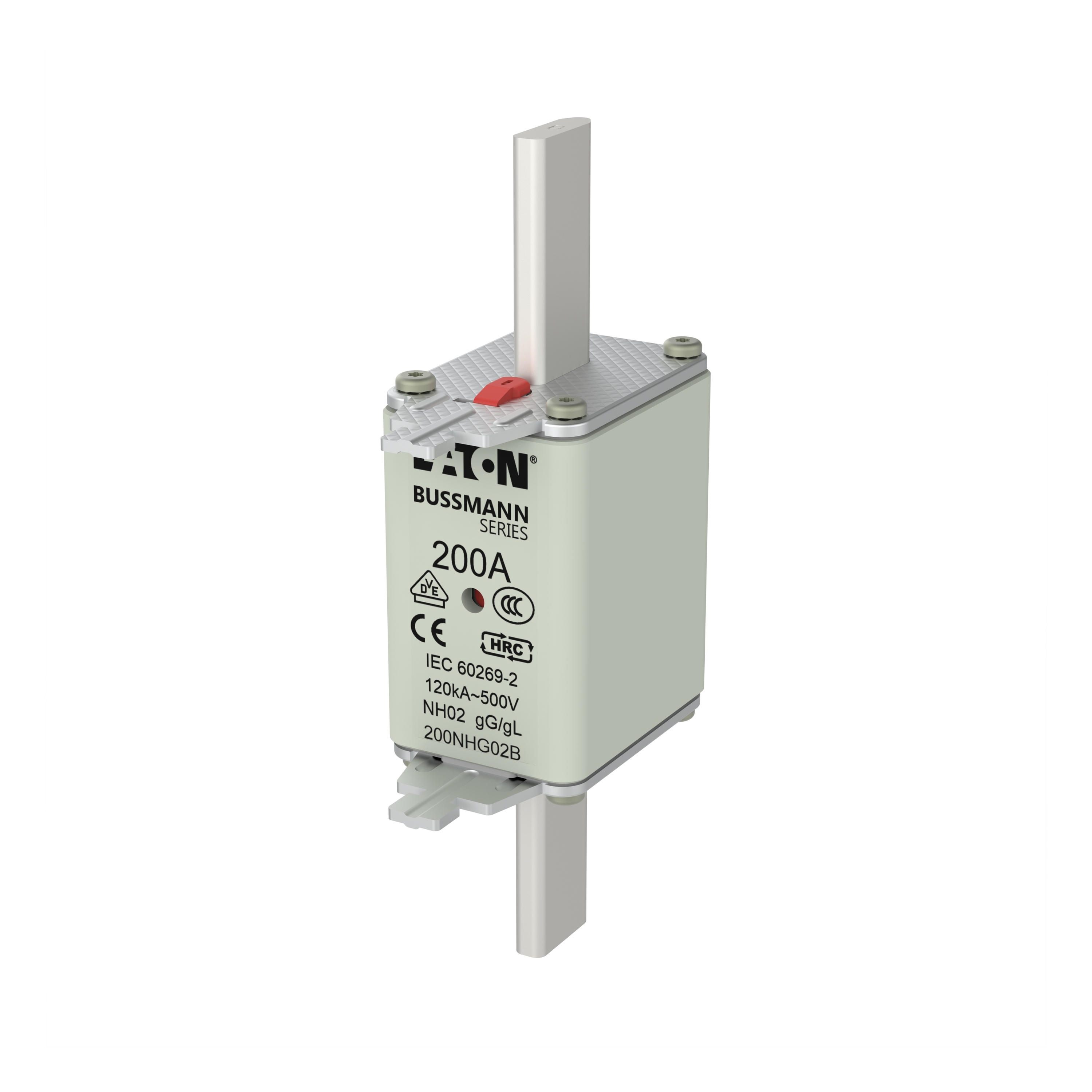

NH FUSE 200A 500V GL/GG SIZE 02 DUAL IN

Fisa tehnica

Electrical
Fuse construction type according to IEC 60269	NH02
Voltage type	AC
Rated current	200
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,000378
weight	0,426667
length	0,152
width	0,042
qmax	1
qmin	1
um	CS
gtin	5027590466608
Package 2
volume	0,00152486
weight	1,28
length	0,152
width	0,132
qmax	3
qmin	3
um	CT
gtin	5027590194570
Package 3
volume	0,02352
weight	16,125
length	0,42
width	0,32
qmax	36
qmin	36
um	CT
gtin	5027590363600
Dimensions of product
Volume	0,000378
Weight	0,395333
Length	0,15
Width	0,04
Depth	0,063

Afiseaza mai multe specificatii
