200NHG1B

Cod produs: 200NHG1B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590467209

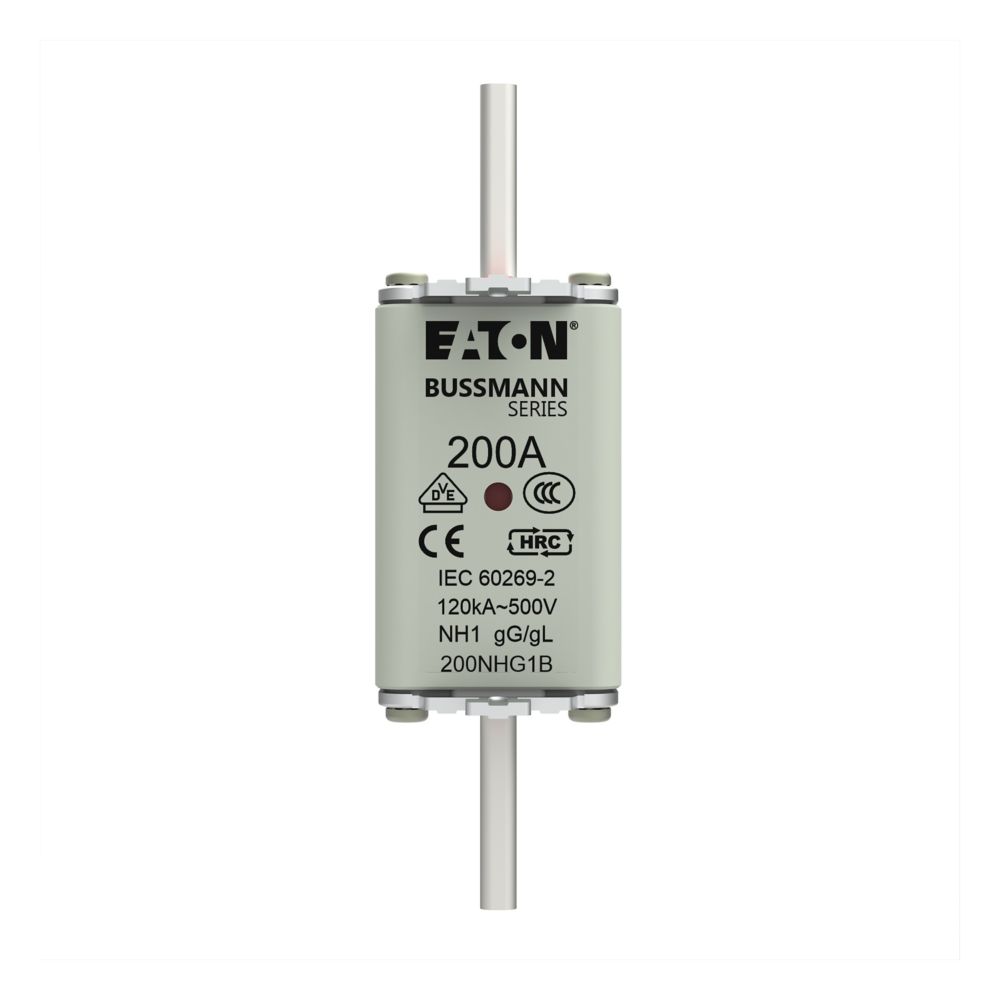

NH FUSE 200A 500V GG/GL SIZE 1

Electrical
Fuse construction type according to IEC 60269	NH1
Voltage type	AC
Rated current	200
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,0003402
weight	0,407333
length	0,137
width	0,042
qmax	1
qmin	1
um	CS
gtin	5027590467209
Package 2
volume	0,00124834
weight	1,222
length	0,137
width	0,134
qmax	3
qmin	3
um	CT
gtin	5027590194587
Package 3
volume	0,02135125
weight	15,199
length	0,475
width	0,29
qmax	36
qmin	36
um	CT
gtin	5027590363624
Dimensions of product
Volume	0,0003402
Weight	0,407333
Length	0,135
Width	0,04
Depth	0,063

Afiseaza mai multe specificatii
