20NHG0B

Cod produs: 20NHG0B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590468190

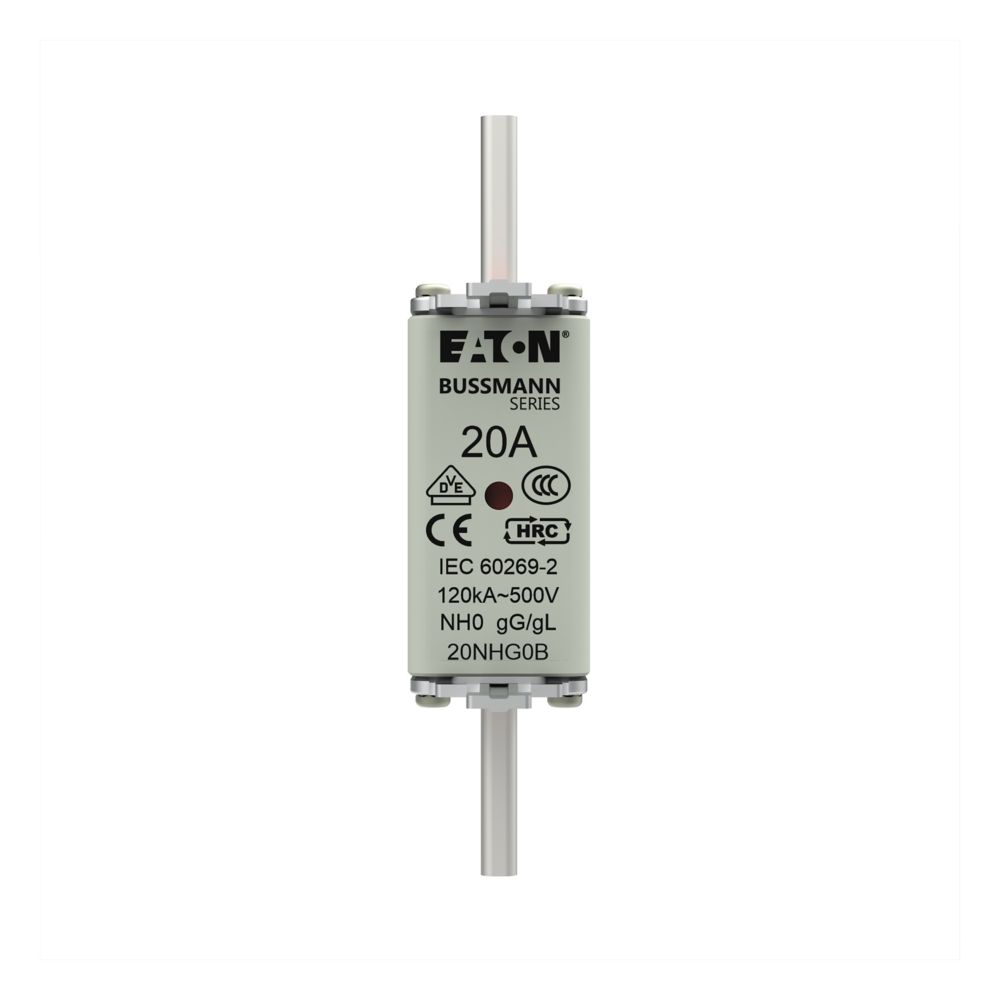

NH FUSE 20A 500V GL/GG SIZE 0 DUAL IN

Fisa tehnica

Electrical
Fuse construction type according to IEC 60269	NH0
Voltage type	AC
Rated current	20
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,0002175
weight	0,299333
length	0,127
width	0,032
qmax	1
qmin	1
um	CS
gtin	5027590468190
Package 2
volume	0,0008161
weight	0,898
length	0,127
width	0,102
qmax	3
qmin	3
um	CT
gtin	5027590194334
Package 3
volume	0,013068
weight	10,354
length	0,27
width	0,22
qmax	36
qmin	36
um	CT
gtin	5027590363655
Dimensions of product
Volume	0,0002175
Weight	0,299333
Length	0,125
Width	0,03
Depth	0,058

Afiseaza mai multe specificatii
