224NHG1B

Cod produs: 224NHG1B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590468541

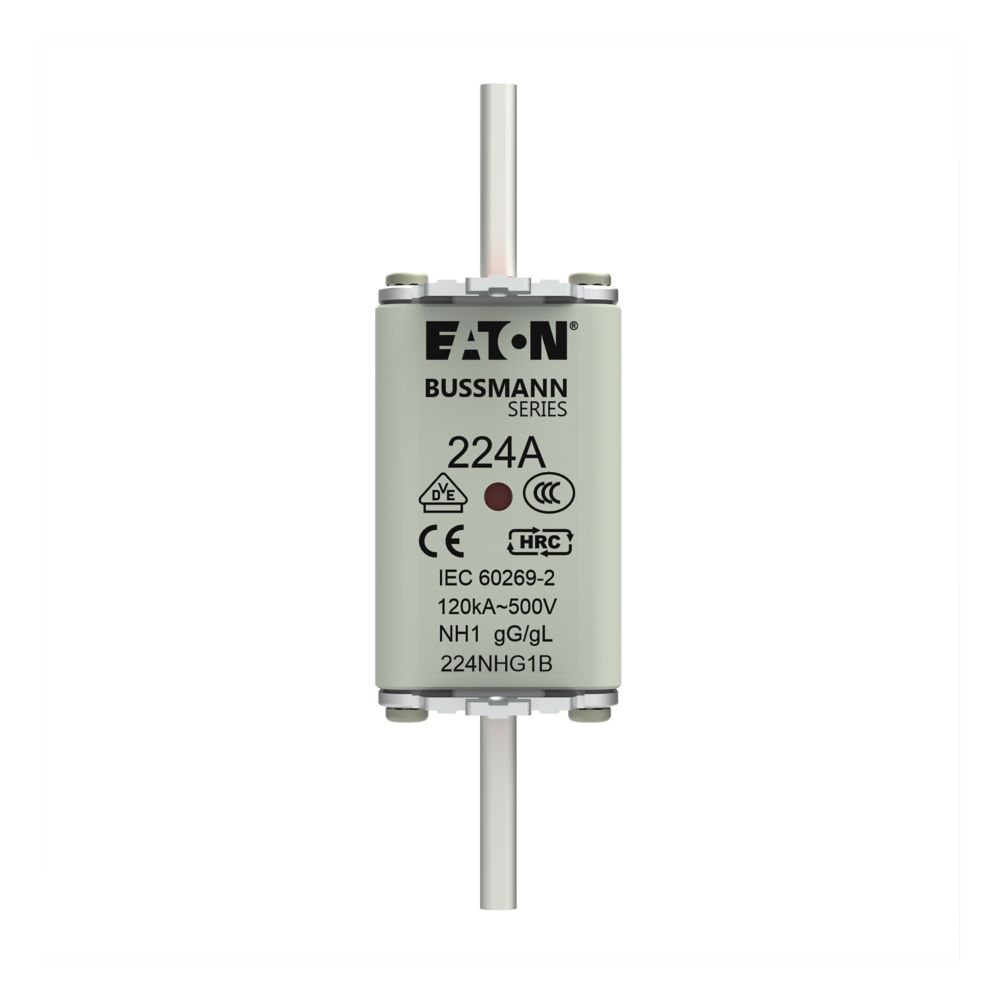

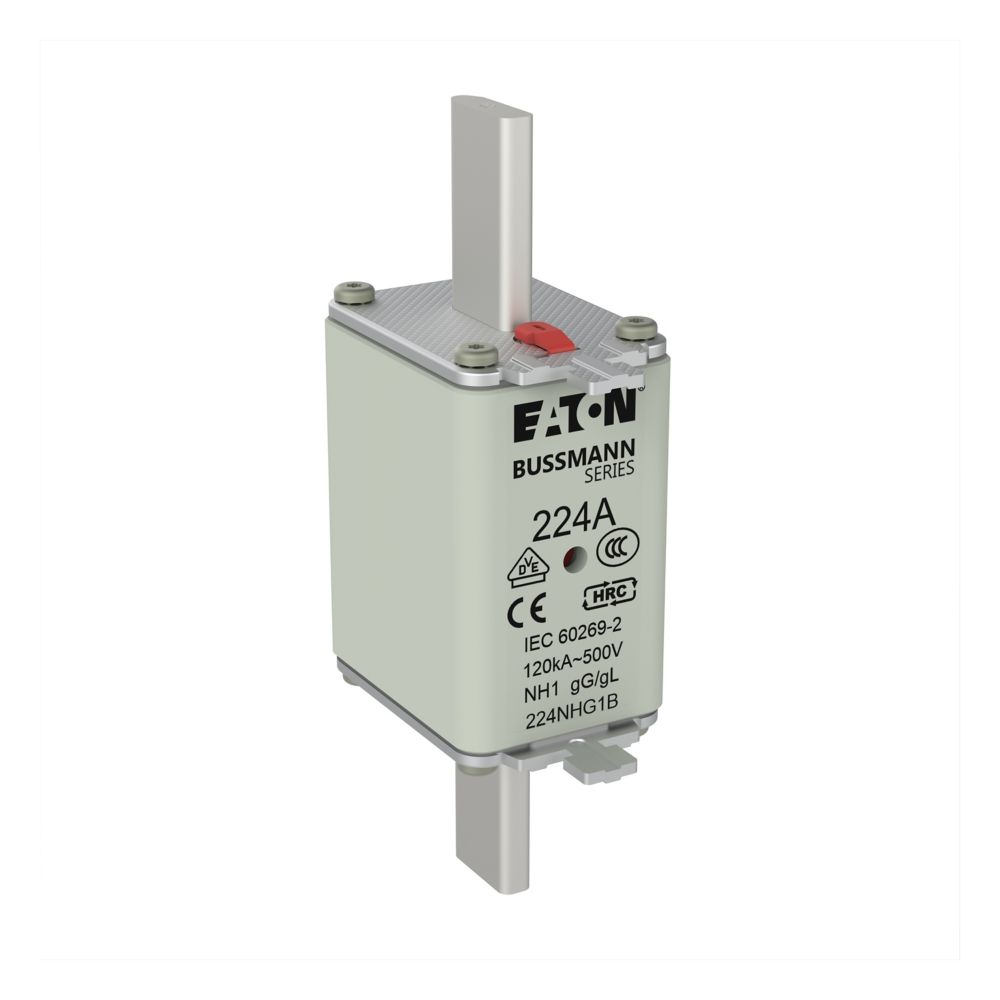

NH FUSE 224A 500V GG/GL SIZE 1

Electrical
Fuse construction type according to IEC 60269	NH1
Voltage type	AC
Rated current	224
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,0003402
weight	0,407333
length	0,137
width	0,042
qmax	1
qmin	1
um	CS
gtin	5027590468541
Package 2
volume	0,00124834
weight	1,222
length	0,137
width	0,134
qmax	3
qmin	3
um	CT
gtin	5027590194877
Package 3
volume	0,02135125
weight	15,199
length	0,475
width	0,29
qmax	36
qmin	36
um	CT
gtin	5027590363686
Dimensions of product
Volume	0,0003402
Weight	0,407333
Length	0,135
Width	0,04
Depth	0,063
