Descriere

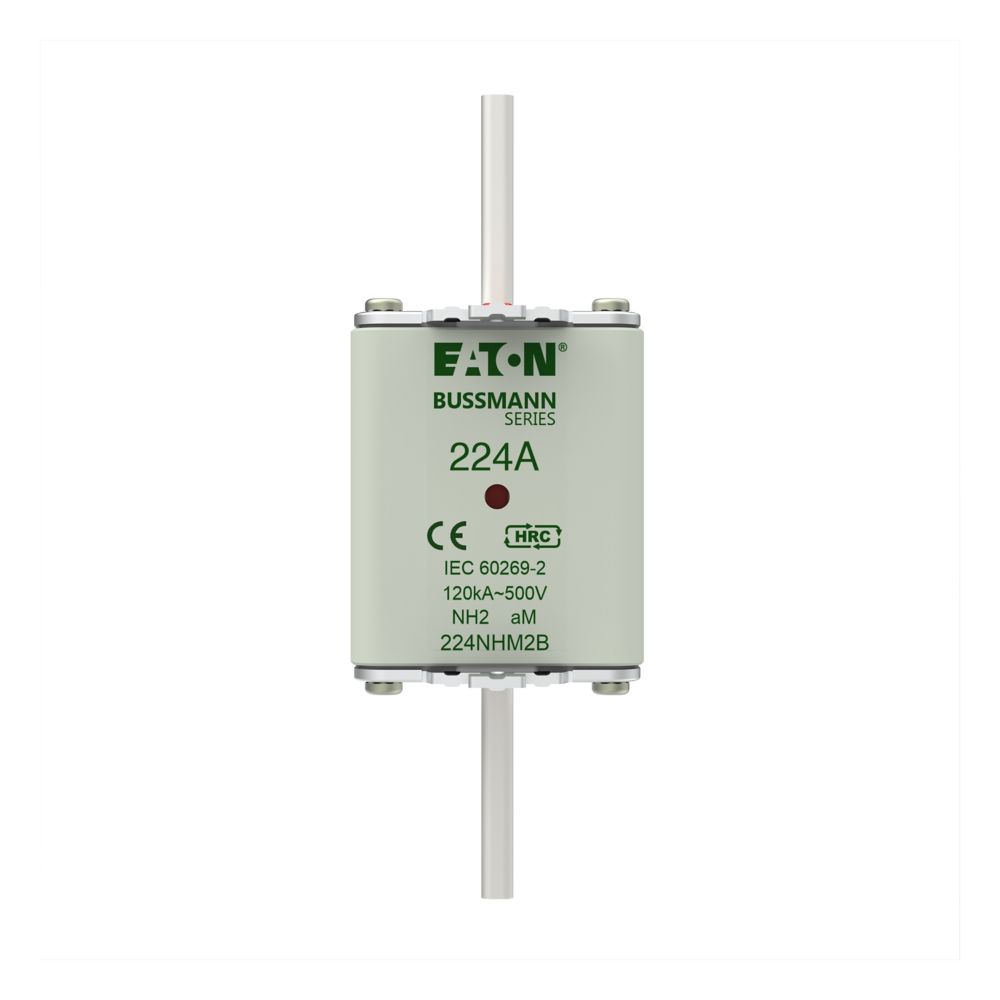

Fuse, Fuse-link, low voltage, 224 A, AC 500 V, NH2, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH2 |
| Voltage type | AC |
| Rated current | 224 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Power loss at rated current | 15 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| volume | 0,0005751 |
| weight | 0,643333 |
| length | 0,152 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590468688 |
| Package 2 | |
| volume | 0,00200002 |
| weight | 1,93 |
| length | 0,153 |
| width | 0,172 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590328616 |
| Package 3 | |
| volume | 0,019272 |
| weight | 16,04 |
| length | 0,365 |
| width | 0,32 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 5027590364171 |
| Dimensions of product | |
| Volume | 0,0005751 |
| Weight | 0,643 |
| Length | 0,15 |
| Width | 0,054 |
| Depth | 0,071 |
