250NHG02BI

Cod produs: 250NHG02BI

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590469579

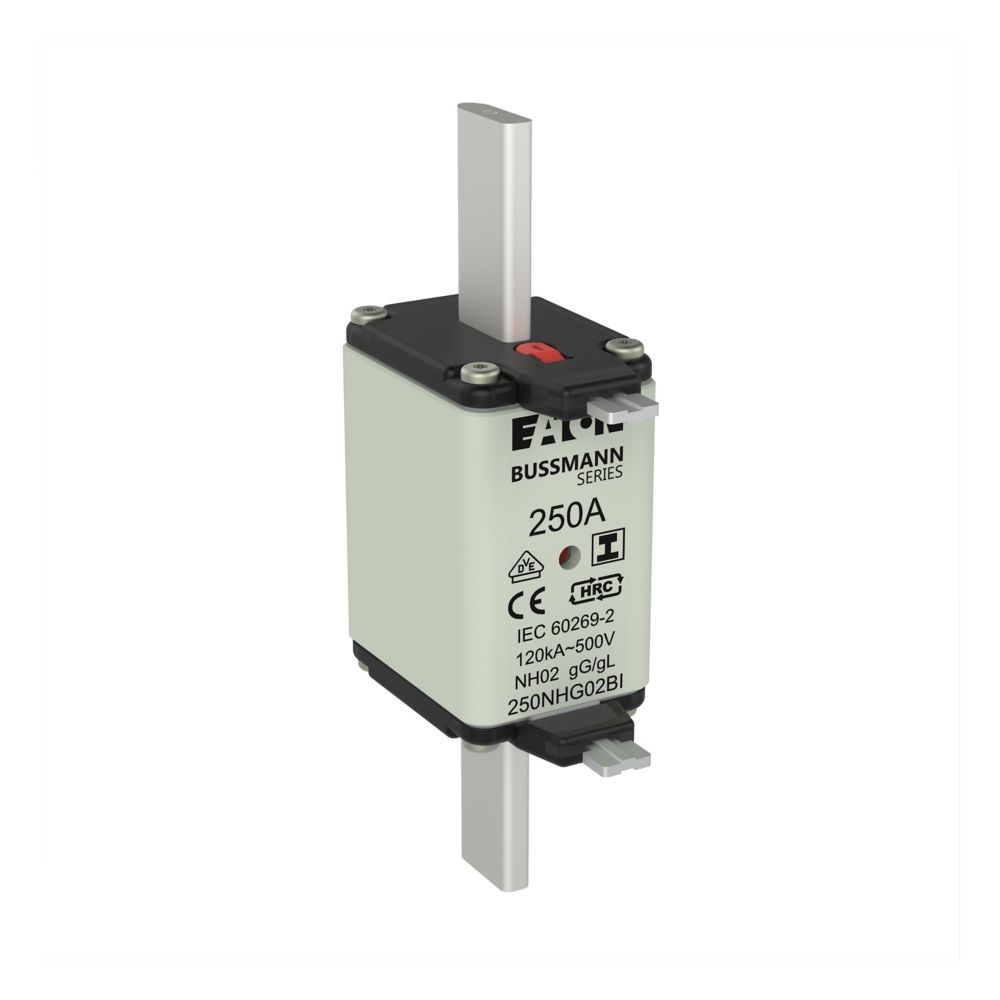

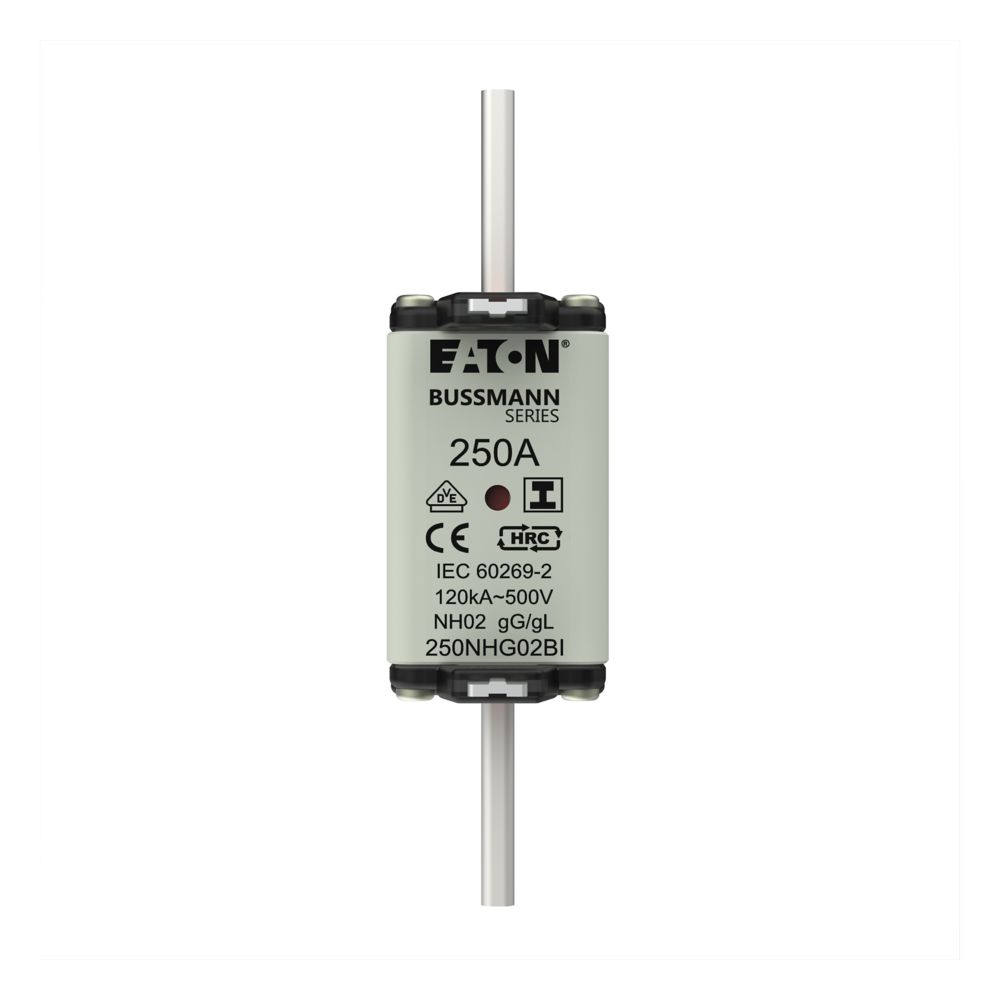

NH FUSE 250A 500V GL/GG SIZE 02

Electrical
Fuse construction type according to IEC 60269	NH02
Voltage type	AC
Rated current	250
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	Yes
Package 1
volume	0,00036855
weight	0,407333
length	0,152
width	0,041
qmax	1
qmin	1
um	CS
gtin	5027590469579
Package 2
volume	0,00152486
weight	1,222
length	0,152
width	0,132
qmax	3
qmin	3
um	CT
gtin	5027590132466
Package 3
volume	0,01919365
weight	15,199
length	0,385
width	0,28
qmax	36
qmin	36
um	CT
gtin	5027590342544
Dimensions of product
Volume	0,00036855
Weight	0,407333
Length	0,15
Width	0,039
Depth	0,063
