Descriere

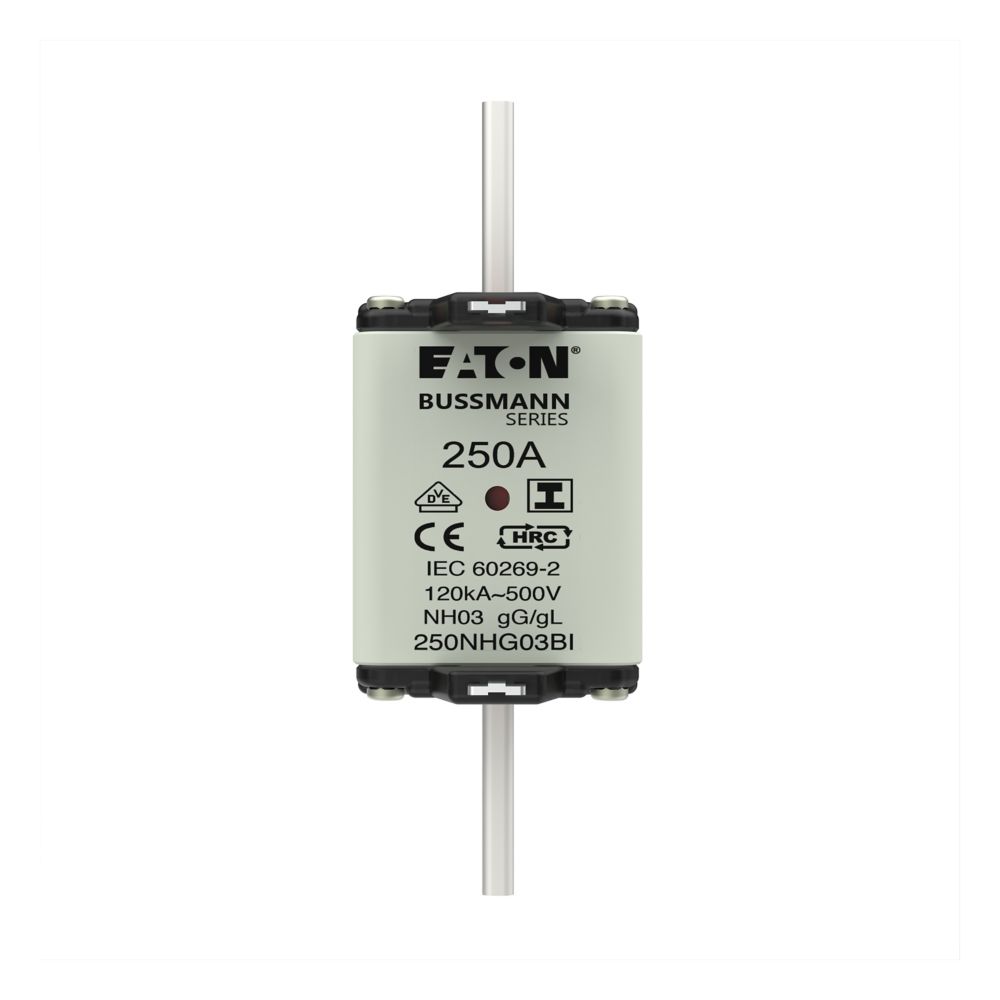

Fuse, Fuse-link, low voltage, 250 A, AC 500 V, NH03, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH03 |
| Voltage type | AC |
| Rated current | 250 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Power loss at rated current | 20 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Package 1 | |
| volume | 0,0005565 |
| weight | 0,656667 |
| length | 0,152 |
| width | 0,055 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590469623 |
| Package 2 | |
| volume | 0,00232742 |
| weight | 1,97 |
| length | 0,152 |
| width | 0,174 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590146111 |
| Package 3 | |
| volume | 0,022776 |
| weight | 16,41 |
| length | 0,385 |
| width | 0,28 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 5027590364218 |
| Dimensions of product | |
| Volume | 0,0005565 |
| Weight | 0,657 |
| Length | 0,15 |
| Width | 0,053 |
| Depth | 0,07 |
