Descriere

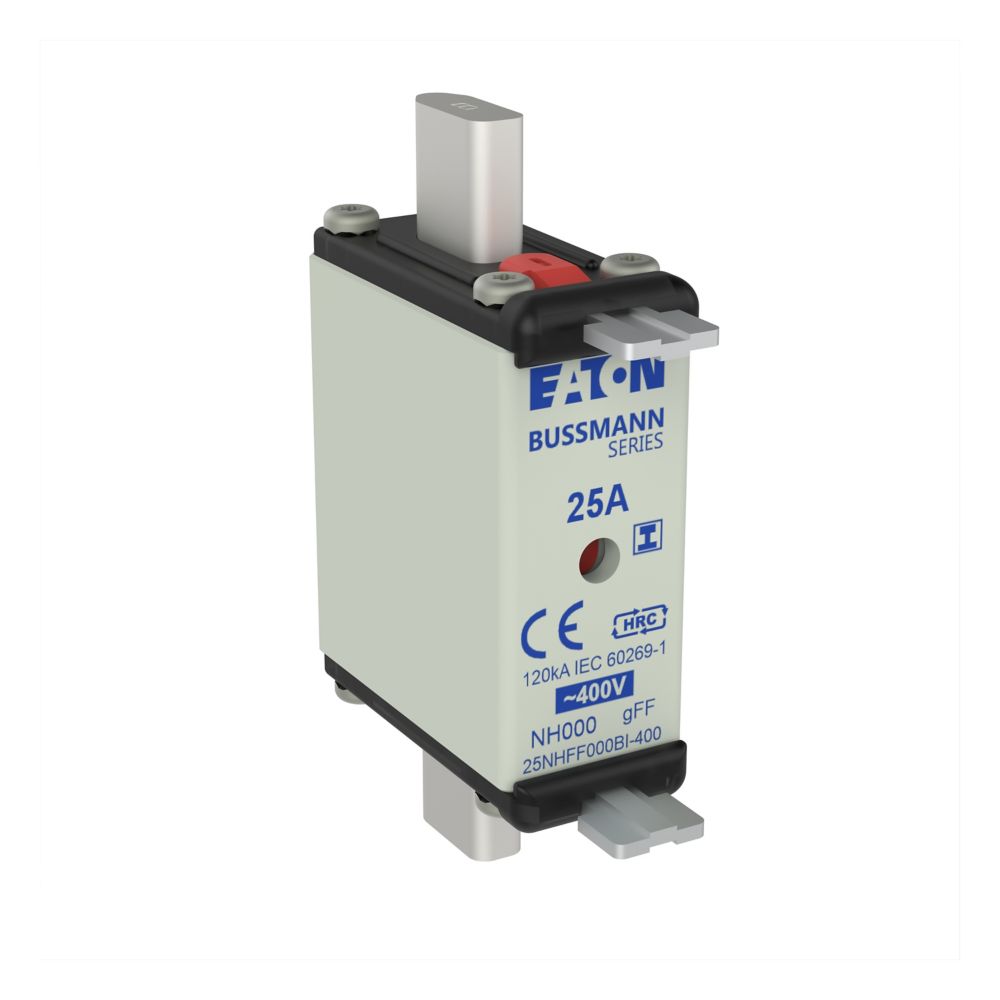

Fuse, fuse-link, low voltage, 25 A, AC 400 V, NH000, gFF, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-1. Breaking capacity 120 kA
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH000 |
| Voltage type | AC |
| Rated current | 25 |
| Rated voltage AC | 400 |
| Rated voltage DC | - |
| Power loss at rated current | 2.3 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | - |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Package 1 | |
| volume | 0,00008461 |
| weight | 0,113333 |
| length | 0,081 |
| width | 0,023 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590470926 |
| Package 2 | |
| volume | 0,00036254 |
| weight | 0,34 |
| length | 0,083 |
| width | 0,078 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590369381 |
| Package 3 | |
| volume | 0,013608 |
| weight | 8,3 |
| length | 0,42 |
| width | 0,18 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 5027590369718 |
| Dimensions of product | |
| Volume | 0,00008461 |
| Weight | 0,113333 |
| Length | 0,079 |
| Width | 0,021 |
| Depth | 0,051 |
