25NHG000B

Cod produs: 25NHG000B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590470933

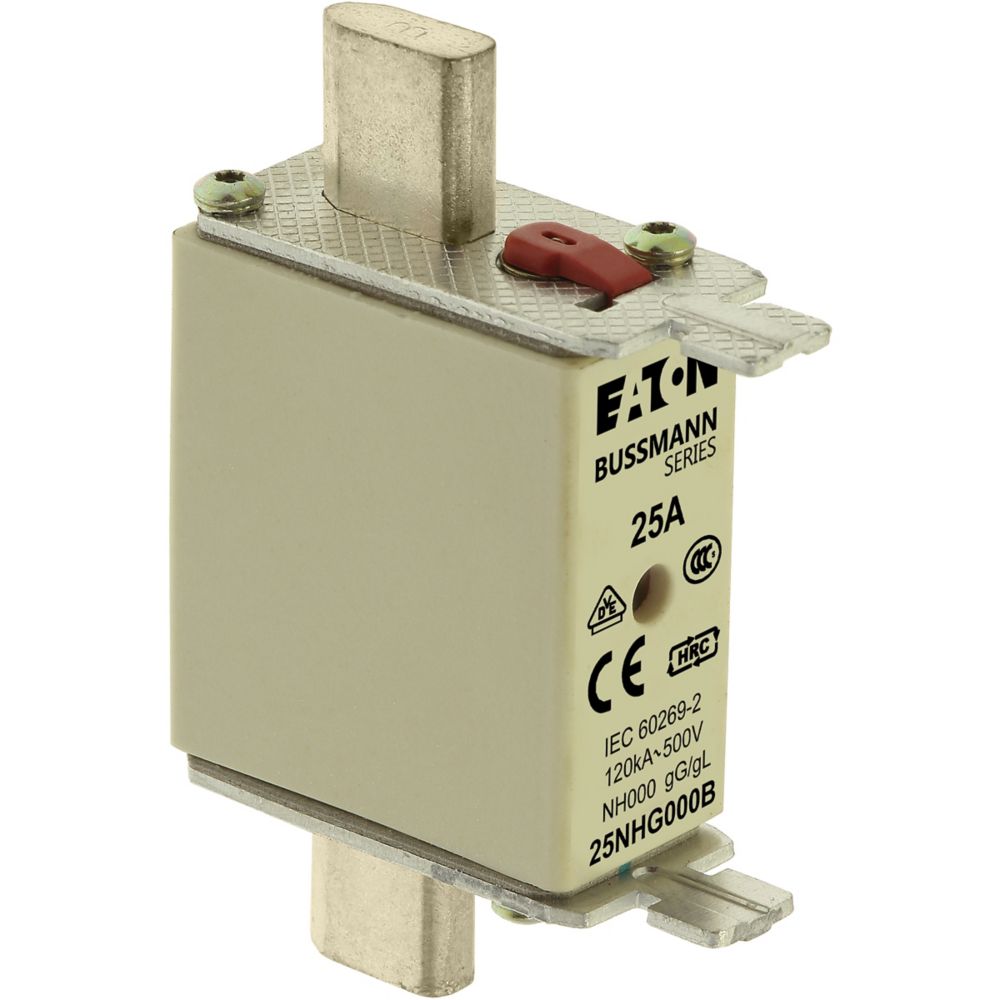

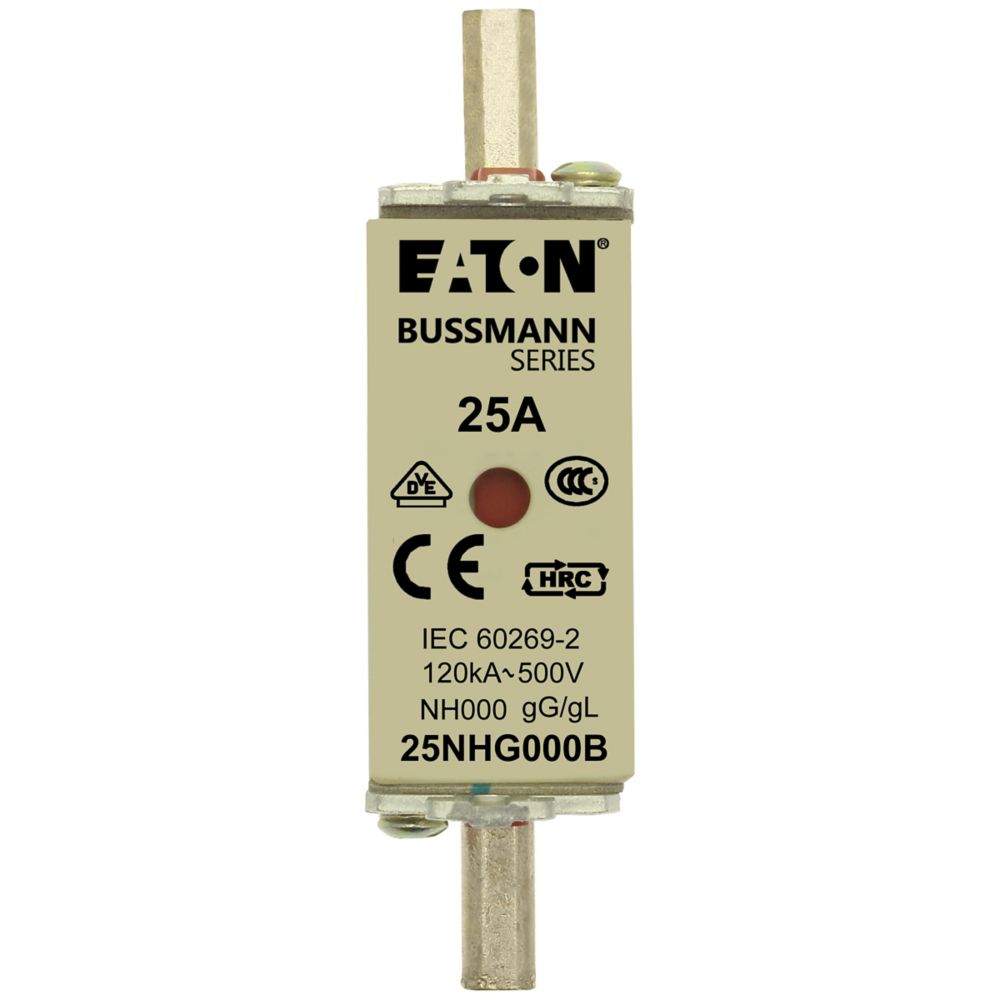

NH FUSE 25AMP 500V SIZE 000 GG MGL

Electrical
Fuse construction type according to IEC 60269	NH000
Voltage type	AC
Rated current	25
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,00008461
weight	0,130667
length	0,081
width	0,023
qmax	1
qmin	1
um	CS
gtin	5027590470933
Package 2
volume	0,00036254
weight	0,392
length	0,083
width	0,078
qmax	3
qmin	3
um	CT
gtin	5027590196406
Package 3
volume	0,010584
weight	8,205
length	0,42
width	0,18
qmax	60
qmin	60
um	CT
gtin	5027590363723
Dimensions of product
Volume	0,00008461
Weight	0,12
Length	0,079
Width	0,021
Depth	0,051

Afiseaza mai multe specificatii
