32NHG01B

Cod produs: 32NHG01B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590476881

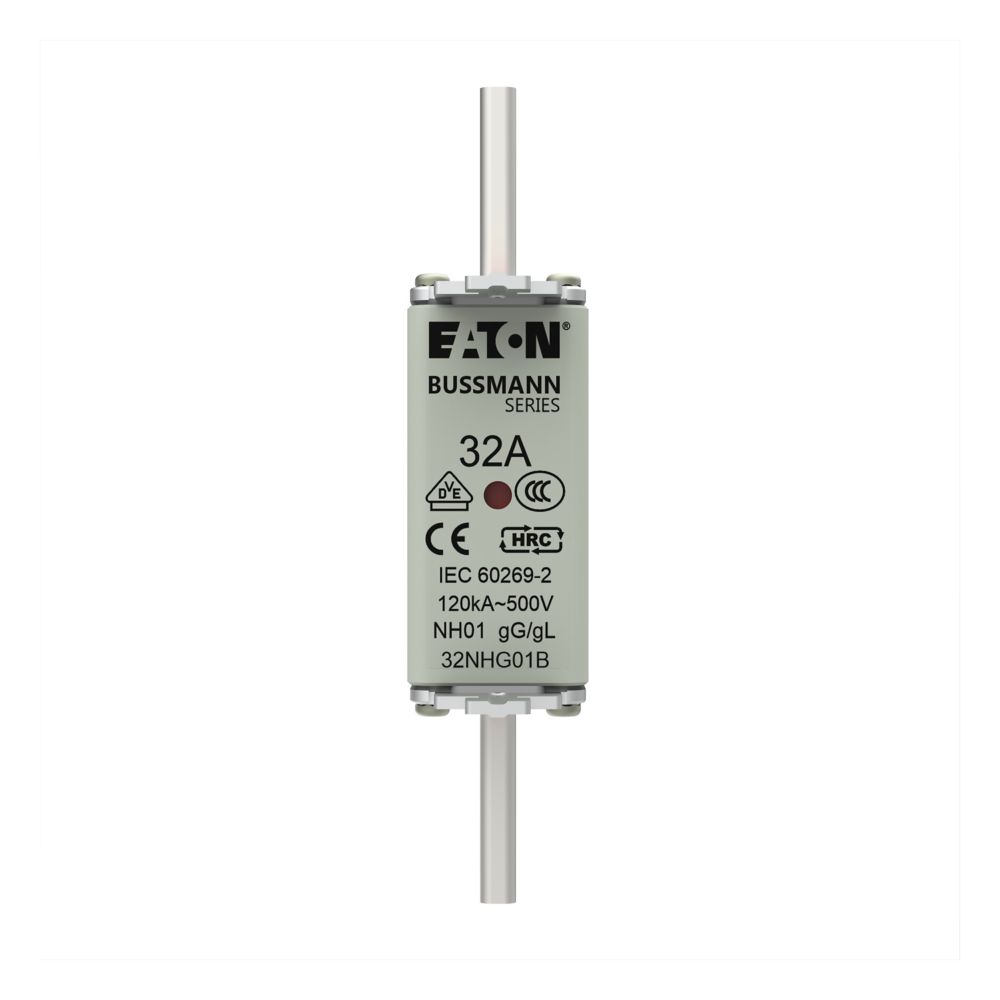

NH FUSE 32A 500V GG/GL SIZE 01

Fisa tehnica

Electrical
Fuse construction type according to IEC 60269	NH01
Voltage type	AC
Rated current	32
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,00023058
weight	0,294667
length	0,137
width	0,0316
qmax	1
qmin	1
um	CS
gtin	5027590476881
Package 2
volume	0,00095023
weight	0,884
length	0,137
width	0,102
qmax	3
qmin	3
um	CT
gtin	5027590147774
Package 3
volume	0,01460875
weight	11
length	0,325
width	0,29
qmax	36
qmin	36
um	CT
gtin	5027590363778
Dimensions of product
Volume	0,00023058
Weight	0,295
Length	0,135
Width	0,0296
Depth	0,0578

Afiseaza mai multe specificatii
