400NHG2B

Cod produs: 400NHG2B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590479776

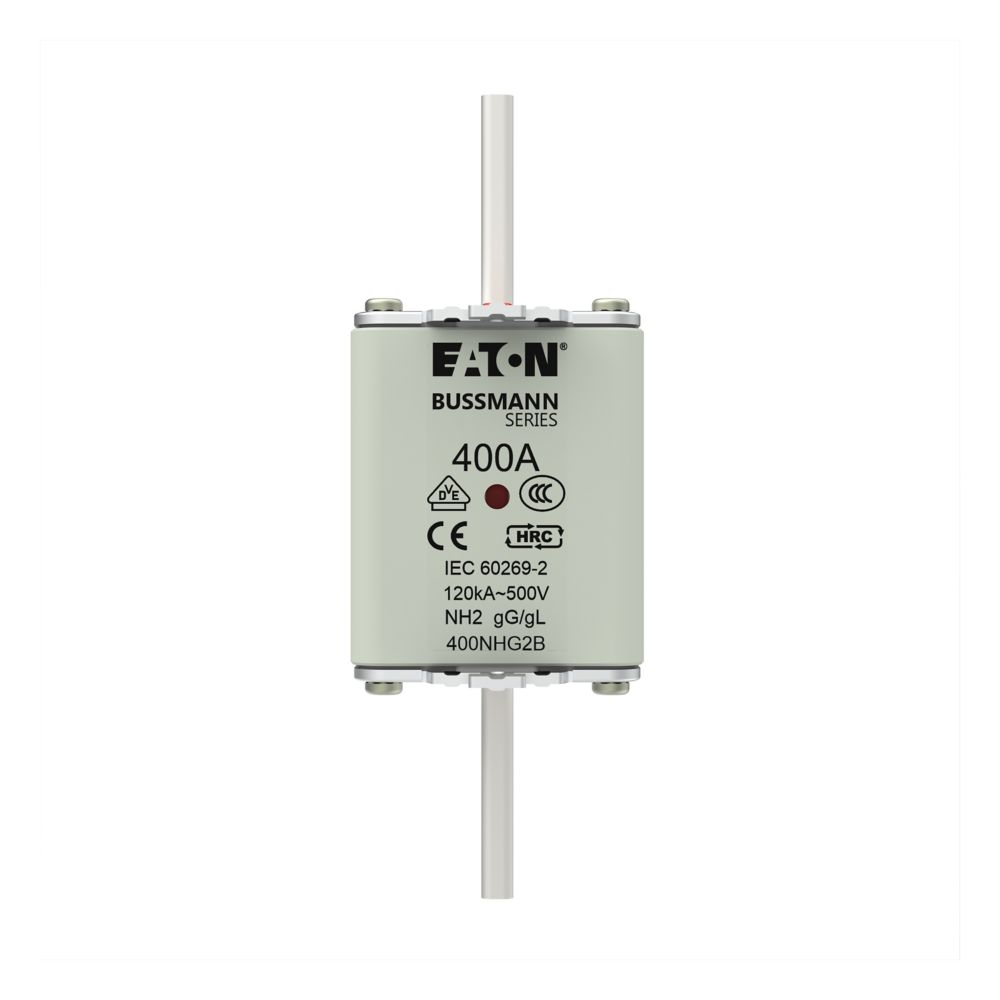

NH FUSE 400A 500V GG/GL SIZE 2

Fisa tehnica

Electrical
Fuse construction type according to IEC 60269	NH2
Voltage type	AC
Rated current	400
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,0005751
weight	0,659333
length	0,152
width	0,056
qmax	1
qmin	1
um	CS
gtin	5027590479776
Package 2
volume	0,00200002
weight	1,978
length	0,153
width	0,172
qmax	3
qmin	3
um	CT
gtin	5027590201513
Package 3
volume	0,019272
weight	16,474
length	0,365
width	0,32
qmax	24
qmin	24
um	CT
gtin	5027590364751
Dimensions of product
Volume	0,0005751
Weight	0,659
Length	0,15
Width	0,054
Depth	0,071

Afiseaza mai multe specificatii
