Descriere

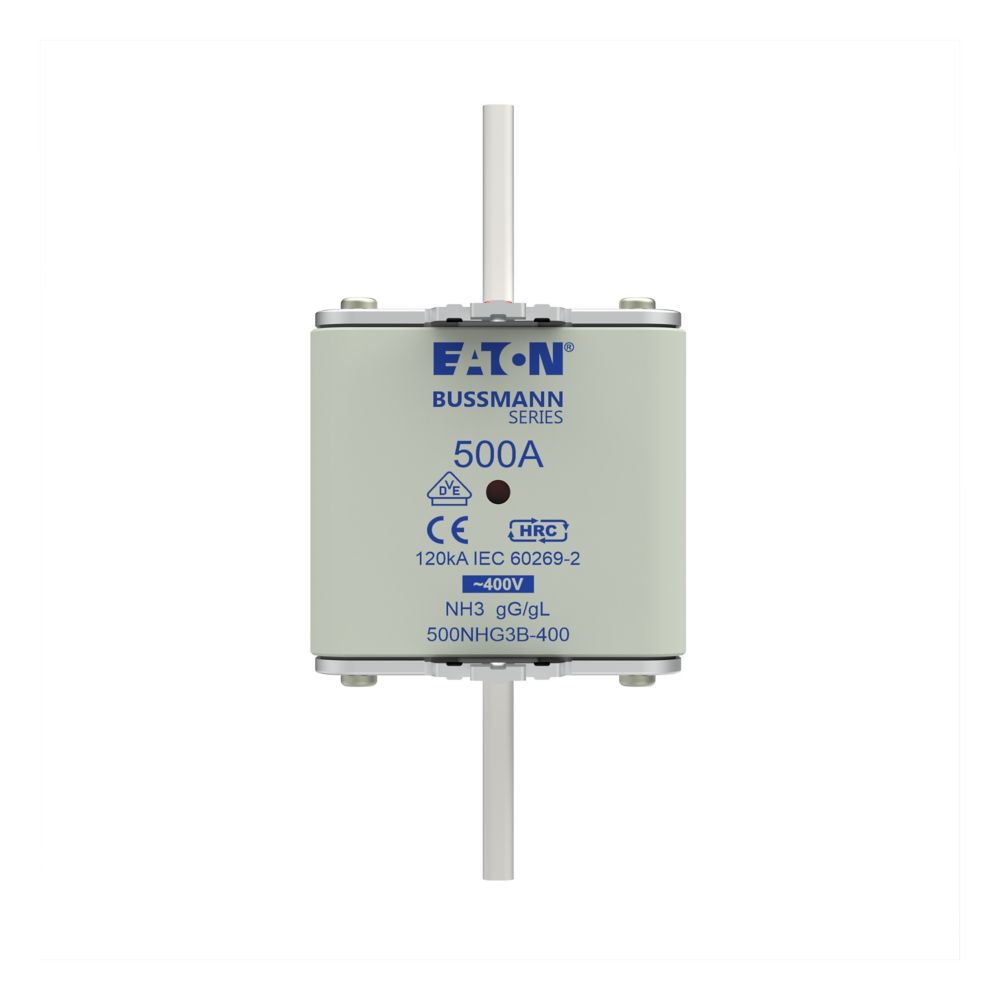

Fuse, fuse-link, low voltage, 500 A, AC 400 V, NH3, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH3 |
| Voltage type | AC |
| Rated current | 500 |
| Rated voltage AC | 440 |
| Rated voltage DC | - |
| Power loss at rated current | 30 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| volume | 0,0009159 |
| weight | 1,139333 |
| length | 0,152 |
| width | 0,073 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590482752 |
| Package 2 | |
| volume | 0,0034656 |
| weight | 3,418 |
| length | 0,24 |
| width | 0,152 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590131568 |
| Package 3 | |
| volume | 0,018365 |
| weight | 14,197 |
| length | 0,33 |
| width | 0,265 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 5027590364935 |
| Dimensions of product | |
| Volume | 0,0009159 |
| Weight | 1,14 |
| Length | 0,15 |
| Width | 0,071 |
| Depth | 0,086 |
