Descriere

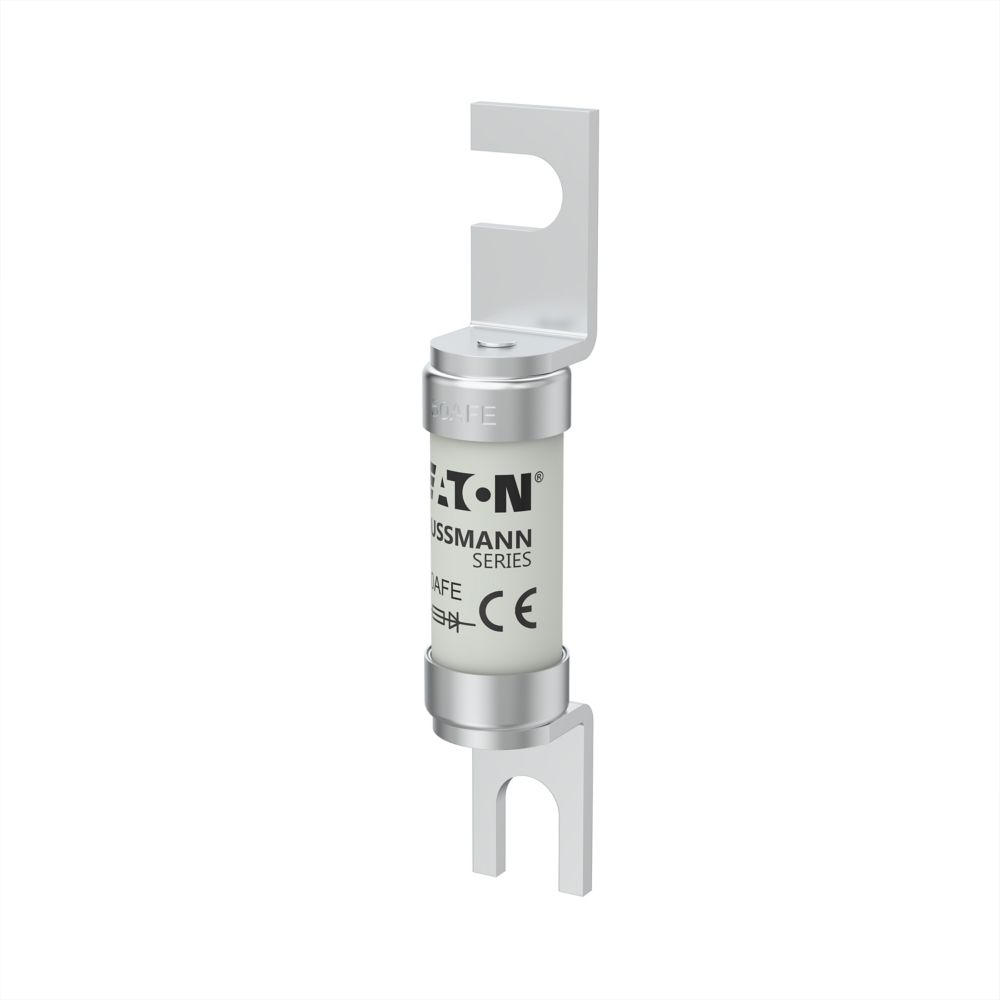

Fuse, Fuse-link, high speed, 50 A, AC 690 V, DC 500 V, BS88, 18 x 96 mm, aR, BS, offset bolted tags (slotted), Special 80 mm fixing centres, thyristor fuse, traction, BS88-4, IEC 60269-4, Breaking Capacity 200 kA, Optional accessories BH-0111 fuse holder
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 690 |
| Rated voltage DC | 500 |
| Rated current | 50 |
| Breaking capacity | 200 |
| Power loss at rated current | 11 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 76 |
| Package 1 | |
| volume | 0,0004114 |
| weight | 0,0458 |
| length | 0,102 |
| width | 0,189 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590482868 |
| Package 2 | |
| volume | 0,004114 |
| weight | 0,458 |
| length | 0,1 |
| width | 0,187 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590049238 |
| Package 3 | |
| volume | 0,018865 |
| weight | 5,596 |
| length | 0,385 |
| width | 0,28 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 5027590354585 |
| Dimensions of product | |
| Volume | 0,0004114 |
| Weight | 0,0458 |
| Length | 0,1 |
| Width | 0,187 |
| Depth | 0,022 |
