Descriere

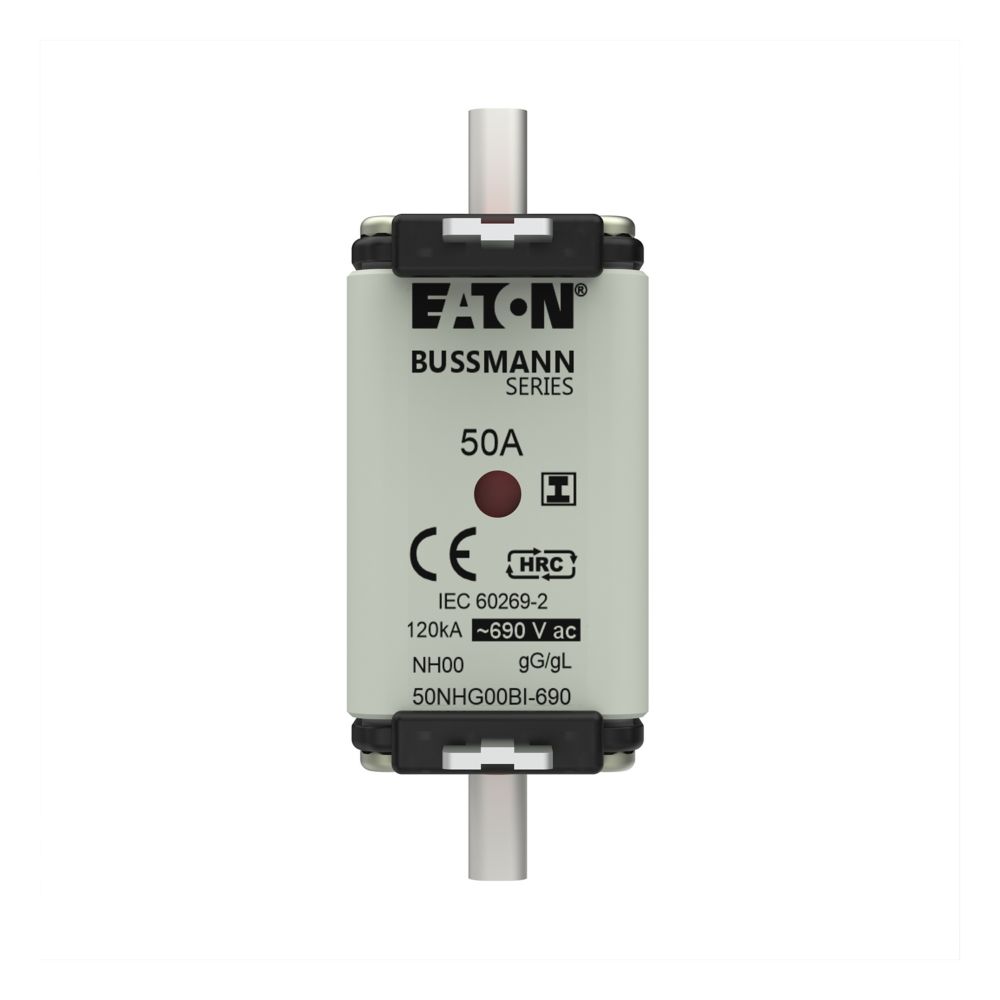

Fuse, fuse-link, low voltage, 50 A, AC 690 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH00 |
| Voltage type | AC |
| Rated current | 50 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Power loss at rated current | - |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Package 1 | |
| volume | 0,00013746 |
| weight | 0,196667 |
| length | 0,081 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590483261 |
| Package 2 | |
| volume | 0,00051408 |
| weight | 0,59 |
| length | 0,102 |
| width | 0,08 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590368780 |
| Package 3 | |
| volume | 0,01694 |
| weight | 15,048 |
| length | 0,35 |
| width | 0,22 |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 5027590373593 |
| Dimensions of product | |
| Volume | 0,00013746 |
| Weight | 0,197 |
| Length | 0,079 |
| Width | 0,03 |
| Depth | 0,058 |
