Descriere

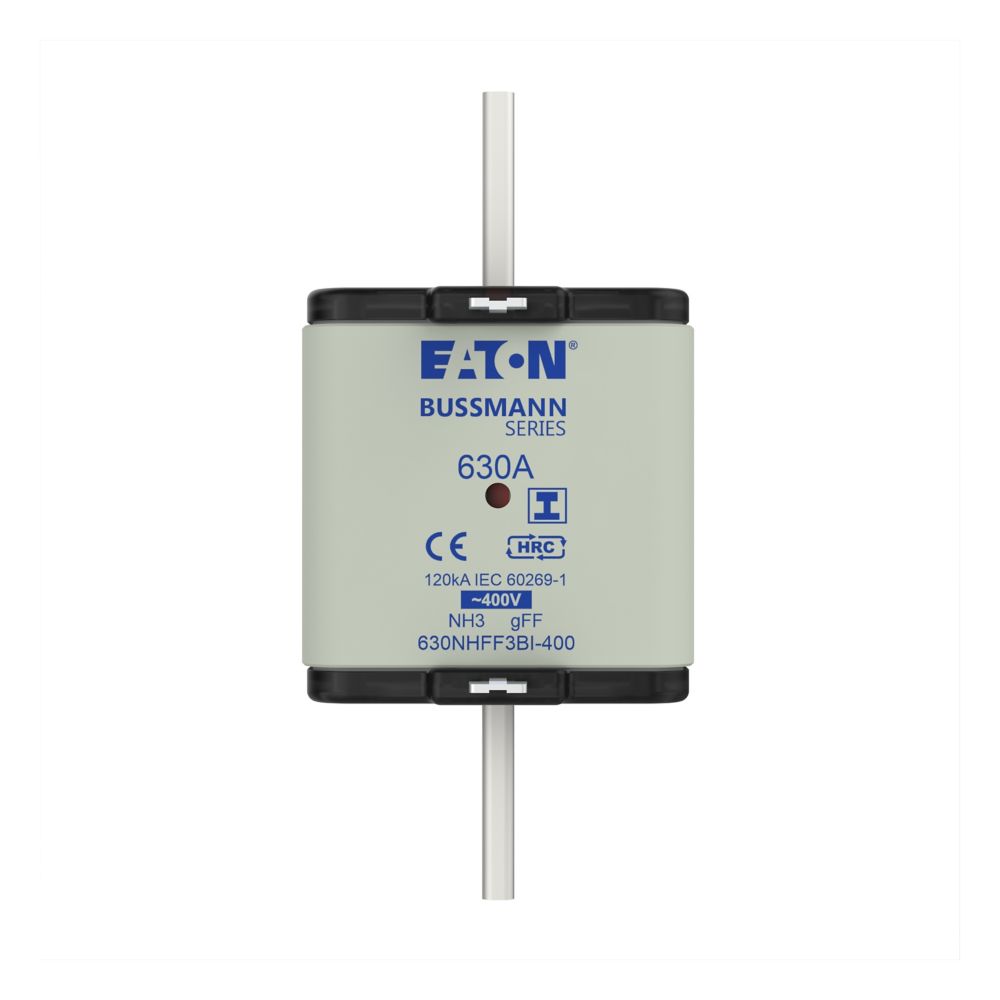

Fuse, fuse-link, low voltage, 630 A, AC 400 V, NH3, gFF, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-1. Breaking capacity 120 kA
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH3 |
| Voltage type | AC |
| Rated current | 630 |
| Rated voltage AC | 415 |
| Rated voltage DC | - |
| Power loss at rated current | 48 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | - |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Package 1 | |
| volume | 0,0009159 |
| weight | 0,904 |
| length | 0,152 |
| width | 0,073 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590484831 |
| Package 2 | |
| volume | 0,0034656 |
| weight | 2,712 |
| length | 0,24 |
| width | 0,152 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590369480 |
| Package 3 | |
| volume | 0,018711 |
| weight | 14 |
| length | 0,33 |
| width | 0,27 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 5027590369817 |
| Dimensions of product | |
| Volume | 0,0009159 |
| Weight | 0,904 |
| Length | 0,15 |
| Width | 0,071 |
| Depth | 0,086 |
