80NHG000B

Cod produs: 80NHG000B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590490726

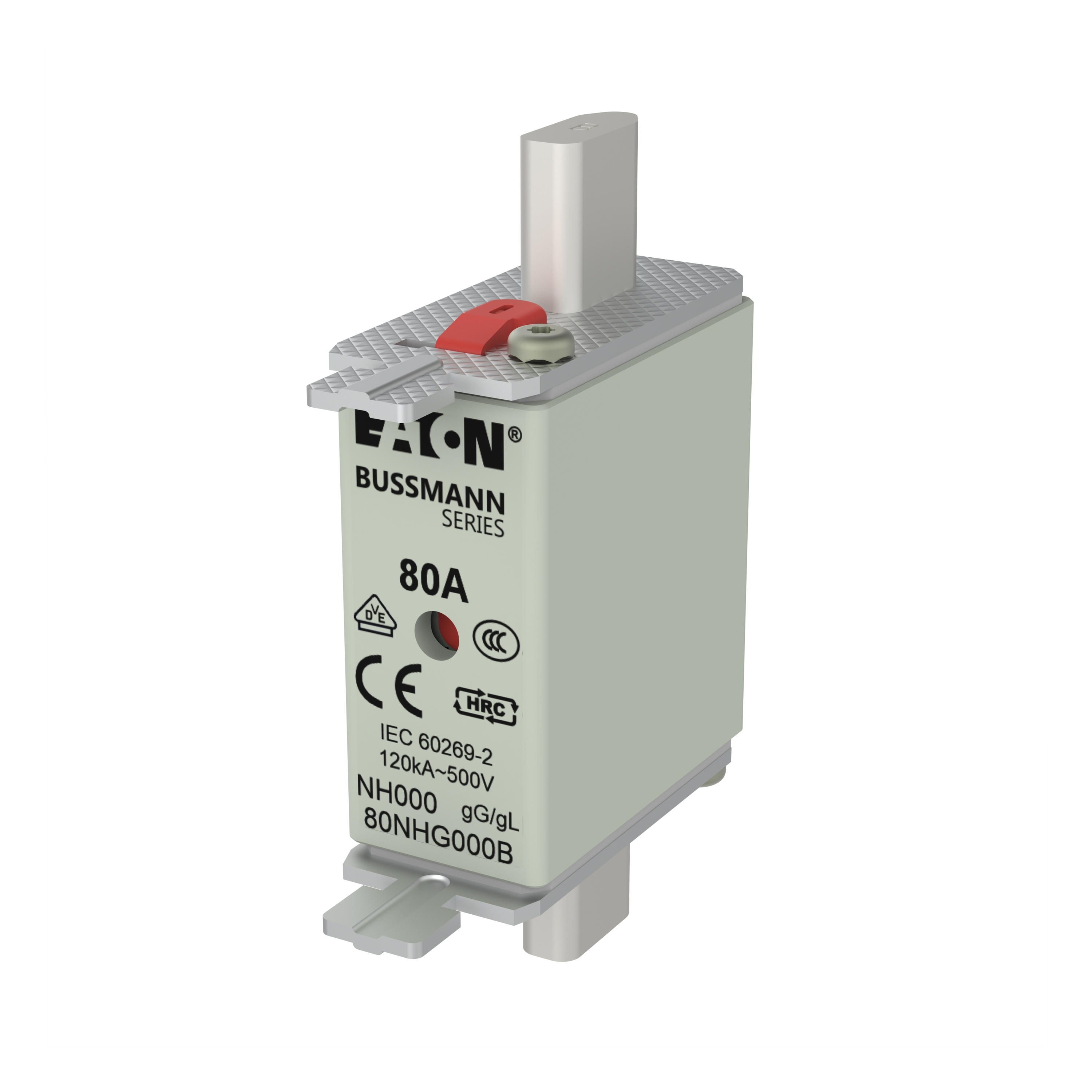

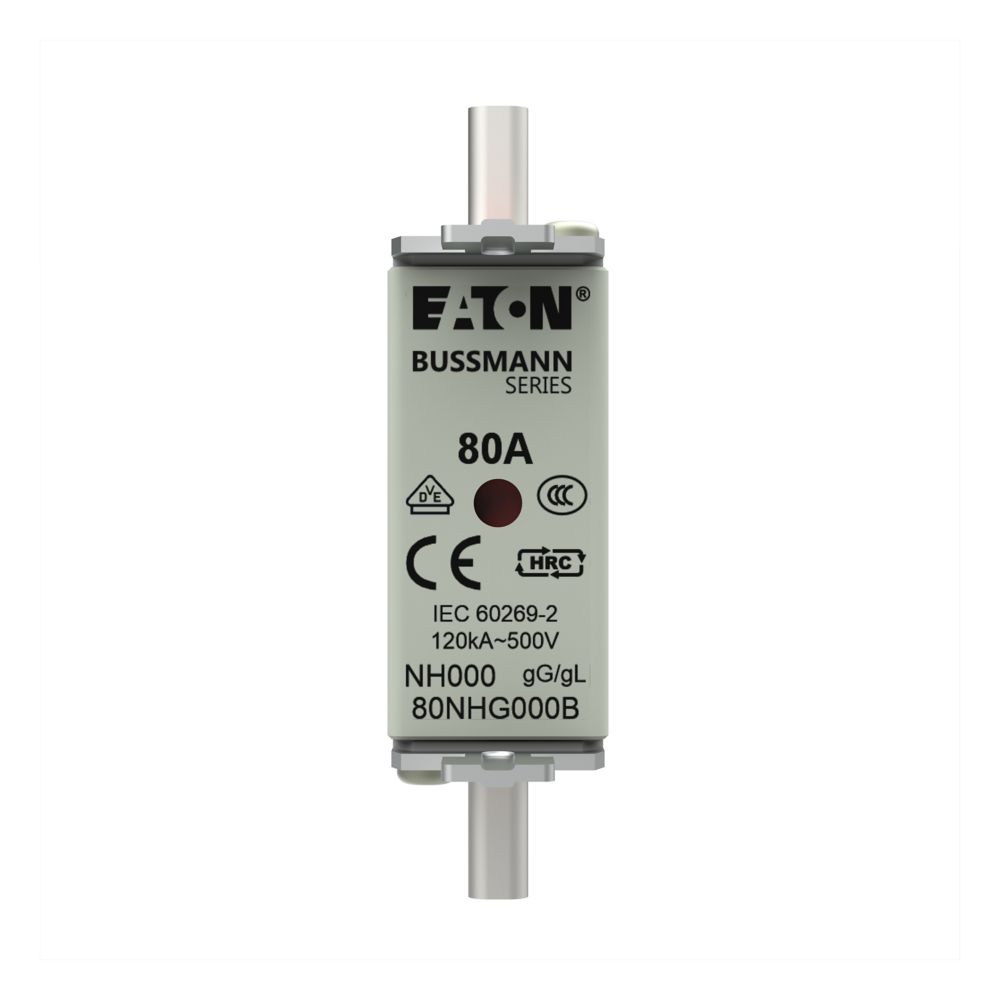

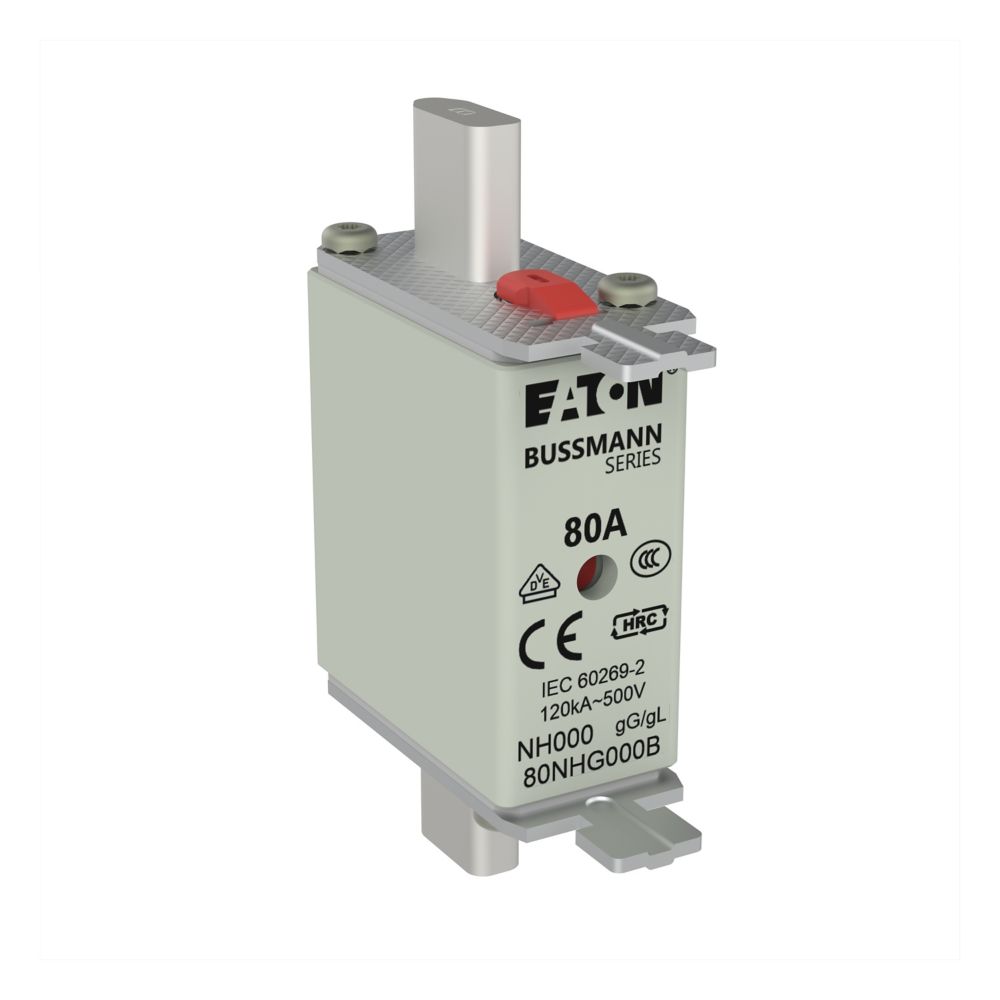

NH FUSE 80AMP 500V SIZE 000 GG MGL

Electrical
Fuse construction type according to IEC 60269	NH000
Voltage type	AC
Rated current	80
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,00008461
weight	0,130667
length	0,081
width	0,023
qmax	1
qmin	1
um	CS
gtin	5027590490726
Package 2
volume	0,00036254
weight	0,392
length	0,083
width	0,078
qmax	3
qmin	3
um	CT
gtin	5027590206143
Package 3
volume	0,010584
weight	8,205
length	0,42
width	0,18
qmax	60
qmin	60
um	CT
gtin	5027590364034
Dimensions of product
Volume	0,00008461
Weight	0,119333
Length	0,079
Width	0,021
Depth	0,051
