Descriere

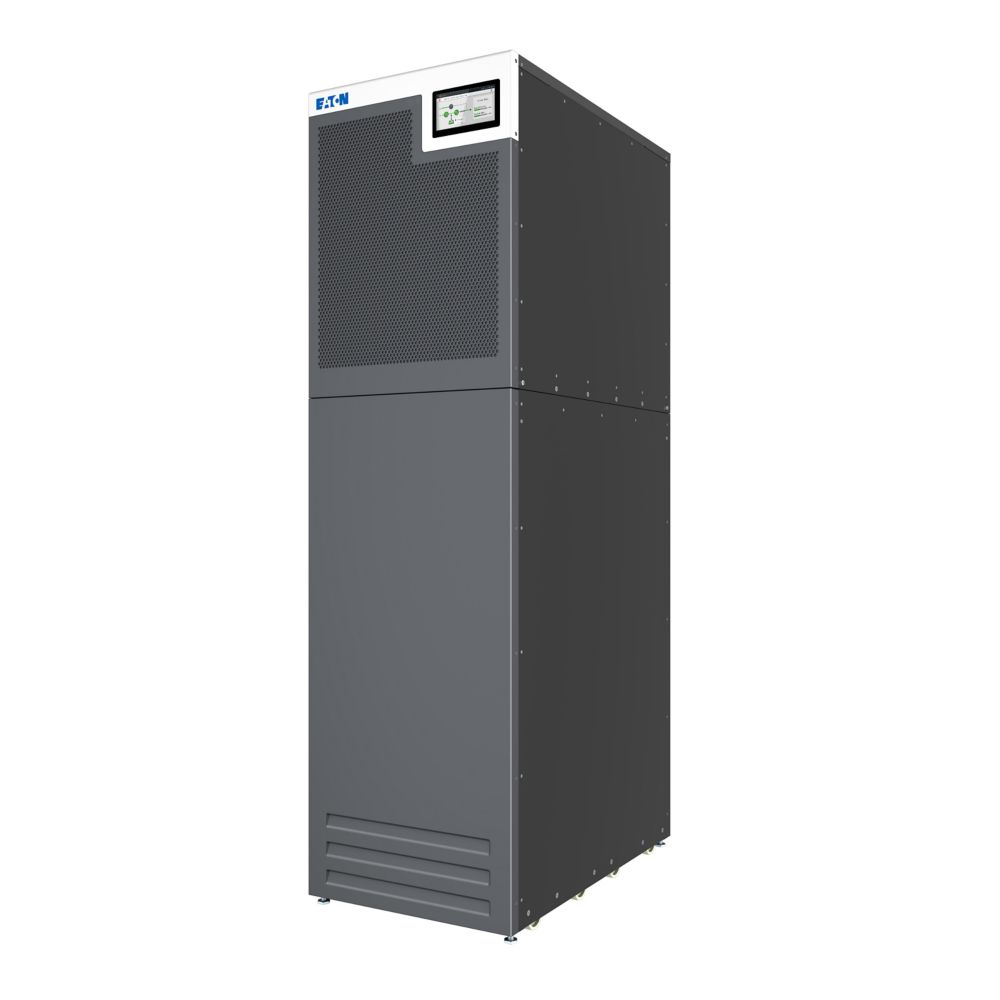

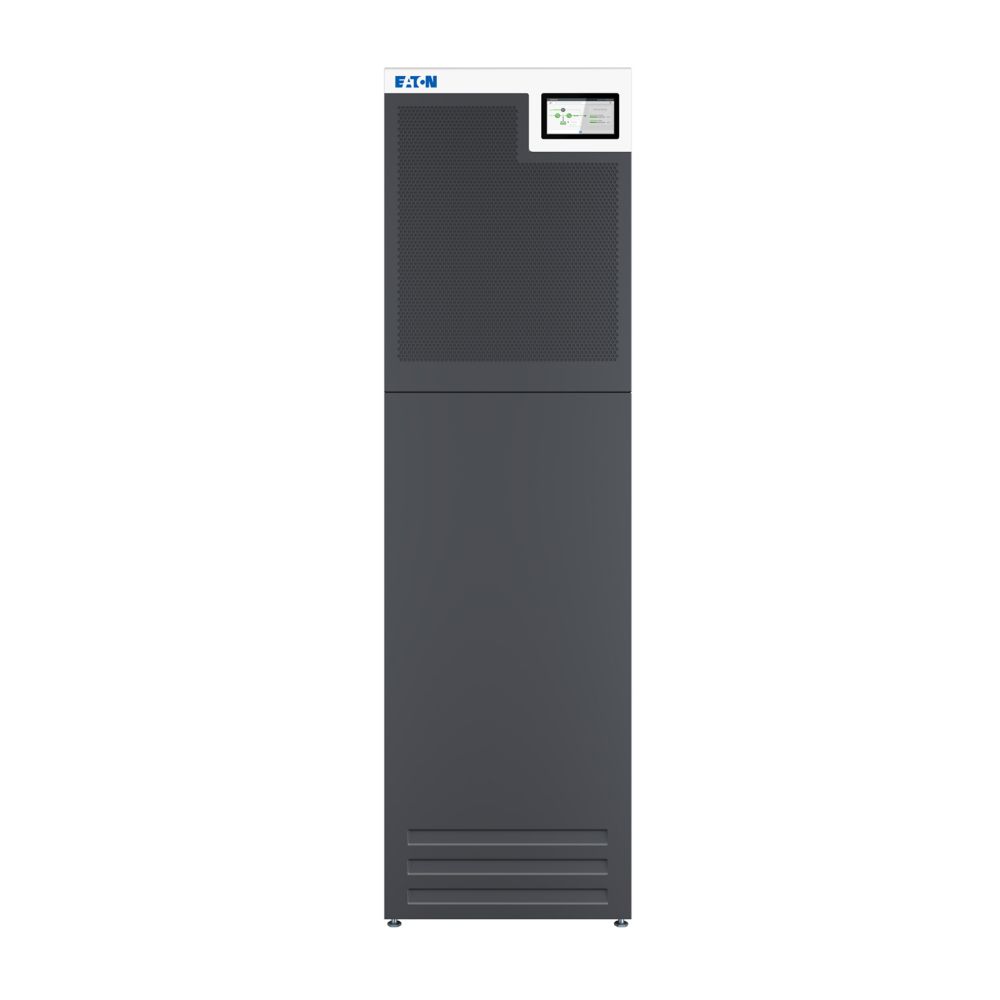

Eaton 93T UPS, Tower Online UPS, 60 kVA, 3 phase in/3 phase out, unity power factor, Internal Maintenance Bypass Switch, Internal Batteries 4x40x9Ah
Specificatii
| Electrical | |
| Input voltage | 380 |
| Number of phases primary | 3 |
| Output voltage | 380 |
| Output apparent power | 60000 |
| Power consumption | 296 |
| Number of phases secondary | 3 |
| Voltage type | AC |
| Max. voltage distortion output (linear load) | 2 |
| Output power factor | 1 |
| Other | |
| Primary frequency | 50 |
| Secondary frequency | 50 |
| Bridging time full load | 23 |
| USV- technology | Online |
| Performance | |
| Output effective power | 60000 |
| Overall efficiency | 96 |
| Efficiency in eco-mode | 99 |
| Connection | |
| USB interface | Yes |
| Input connection | Fixed connection |
| Number of output connections C13 | - |
| Number of output connections C19 | - |
| Number of output connections with protective contact CEE 7/3 (type F) | - |
| Number of output connections fixed connection | 1 |
| Number of output connections French standard (Type E) | - |
| Communication | |
| With communication interface RS-232 | Yes |
| Options | |
| SNMP | No |
| Modular | No |
| Potential free switch contact | Yes |
| Auto shut down function | Yes |
| Measurements | |
| Height | 1750 |
| Width | 500 |
| Depth | 820 |
| Weight | 644 |
| Application | |
| Suitable for network-management | Yes |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 1,848 |
| weight | 704 |
| length | 1,1 |
| width | 0,875 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 6430070724041 |
| Dimensions of product | |
| Volume | 0,7175 |
| Weight | 644 |
| Length | 0,82 |
| Width | 0,5 |
| Depth | 1,75 |
