Descriere

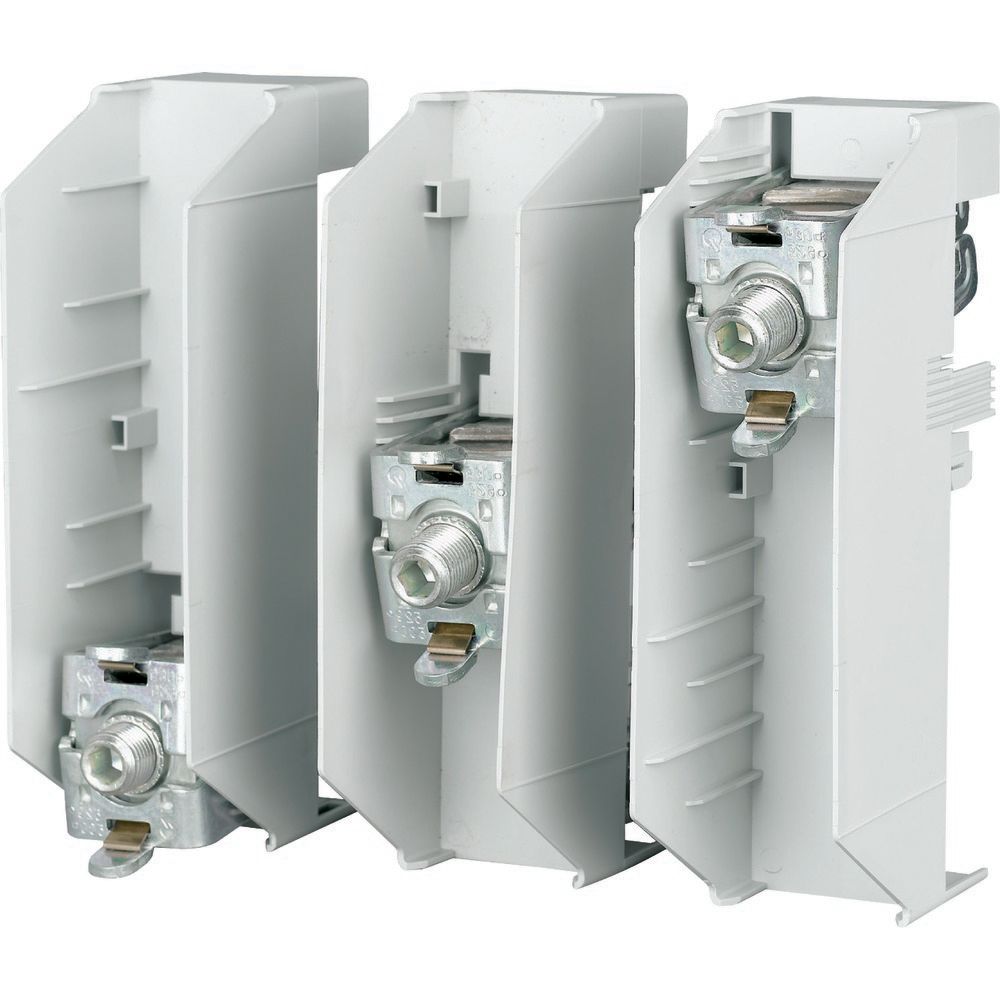

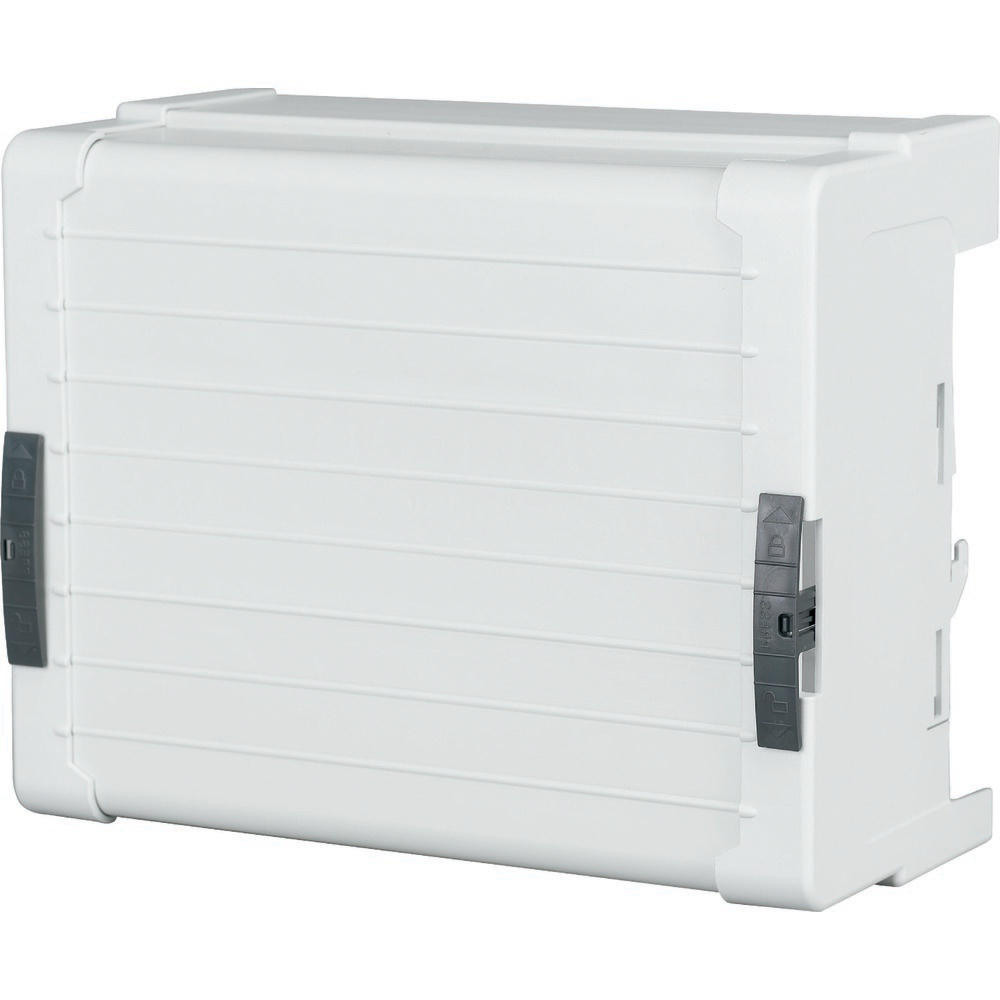

Connection kit, 60 mm system, poles=3, terminal capacity=95-300mm² MCM 300-MCM 600., Ie=560A, width=180-240mm, can be used for rail 20x5/10, 25x5/10, 30x5/10, double T profile, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, pole pitch adjustable, fixing direct over busbar terminals, including shroud with adjustable width, passing through is not possible
Documente
Fisa tehnica
Specificatii
| Measurements | |
| Busbar thickness | 5 |
| Busbar width | 12 |
| Width clamp | 240 |
| Application | |
| Suitable for | Flat rail |
| Connection | |
| Max. conductor cross section | 300 |
| Suitable for round conductor connection | Yes |
| Suitable for sector conductor connection | Yes |
| Suitable for strip conductor connection | Yes |
| Electrical | |
| Max. rated operation current Ie | 560 |
| Package 1 | |
| volume | 0,0072 |
| weight | 2,074 |
| length | 0,26 |
| width | 0,135 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081069484 |
| Dimensions of product | |
| Volume | 0,006825 |
| Weight | 1,991 |
| Length | 0,26 |
| Width | 0,125 |
| Depth | 0,21 |
