Descriere

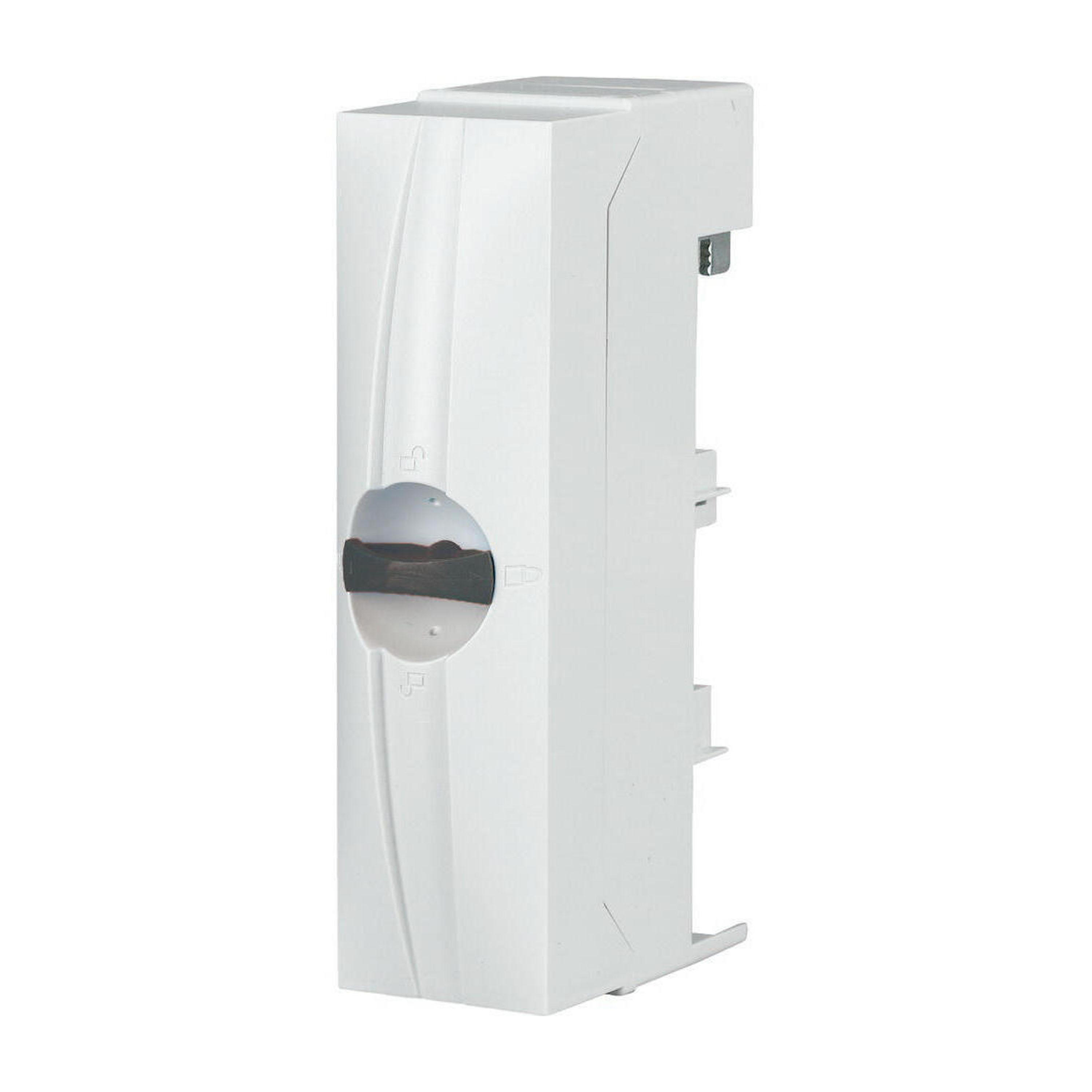

Connection terminal board, 60 mm system, poles=3, screw terminals, terminal capacity=6 up to 50mm² or AWG10-AWG2 or 6x9x0.8, Ie=300A, width=54mm, can be used for rail 12x5/10 to 30x5/10 and double T profile, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, the terminal can be removed for the connection of uncut conductors, termination space WxH = 15x10 mm, passing through is not possible
Documente
Specificatii
| Measurements | |
| Busbar thickness | 5 |
| Busbar width | 12 |
| Width clamp | 54 |
| Application | |
| Suitable for | Flat rail |
| Connection | |
| Max. conductor cross section | 50 |
| Suitable for round conductor connection | Yes |
| Suitable for sector conductor connection | Yes |
| Suitable for strip conductor connection | Yes |
| Electrical | |
| Max. rated operation current Ie | 300 |
| Package 1 | |
| volume | 0,001822 |
| weight | 0,453 |
| length | 0,22 |
| width | 0,115 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081069460 |
| Dimensions of product | |
| Volume | 0,002294 |
| Weight | 0,435 |
| Length | 0,095 |
| Width | 0,115 |
| Depth | 0,21 |
