Descriere

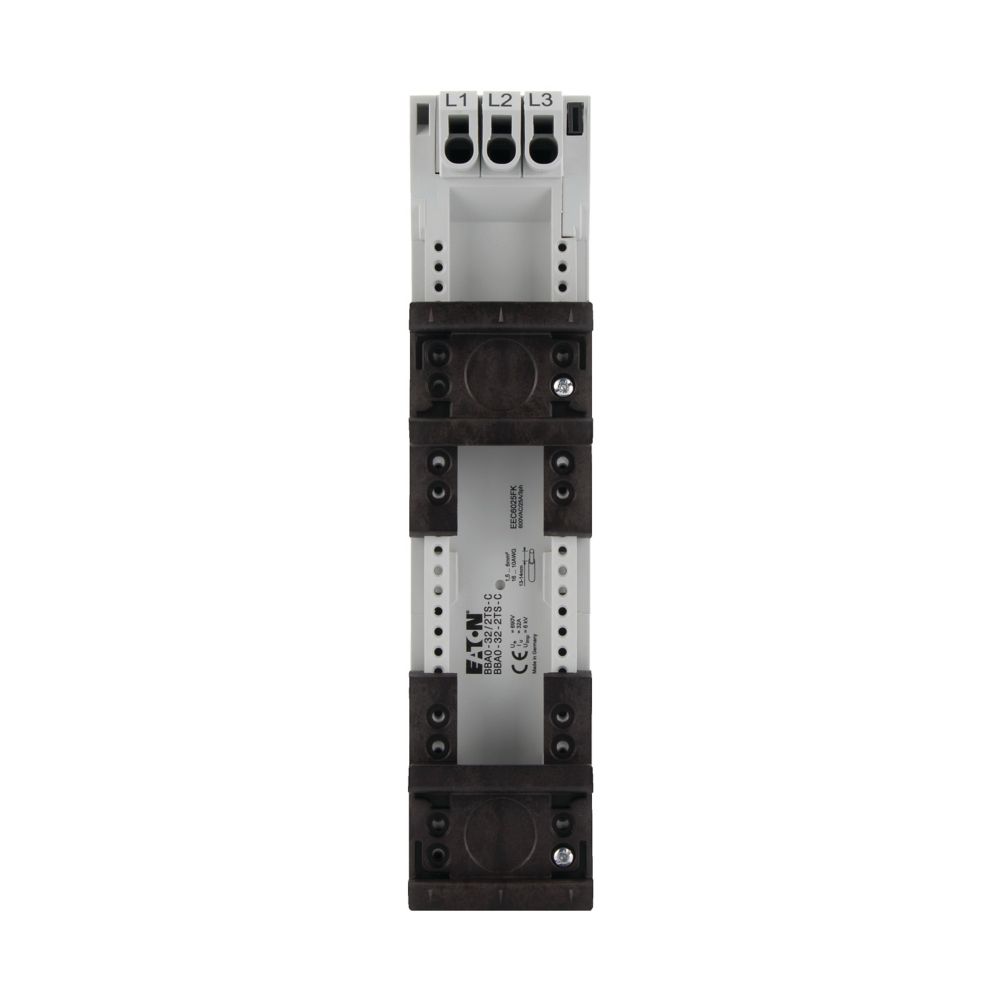

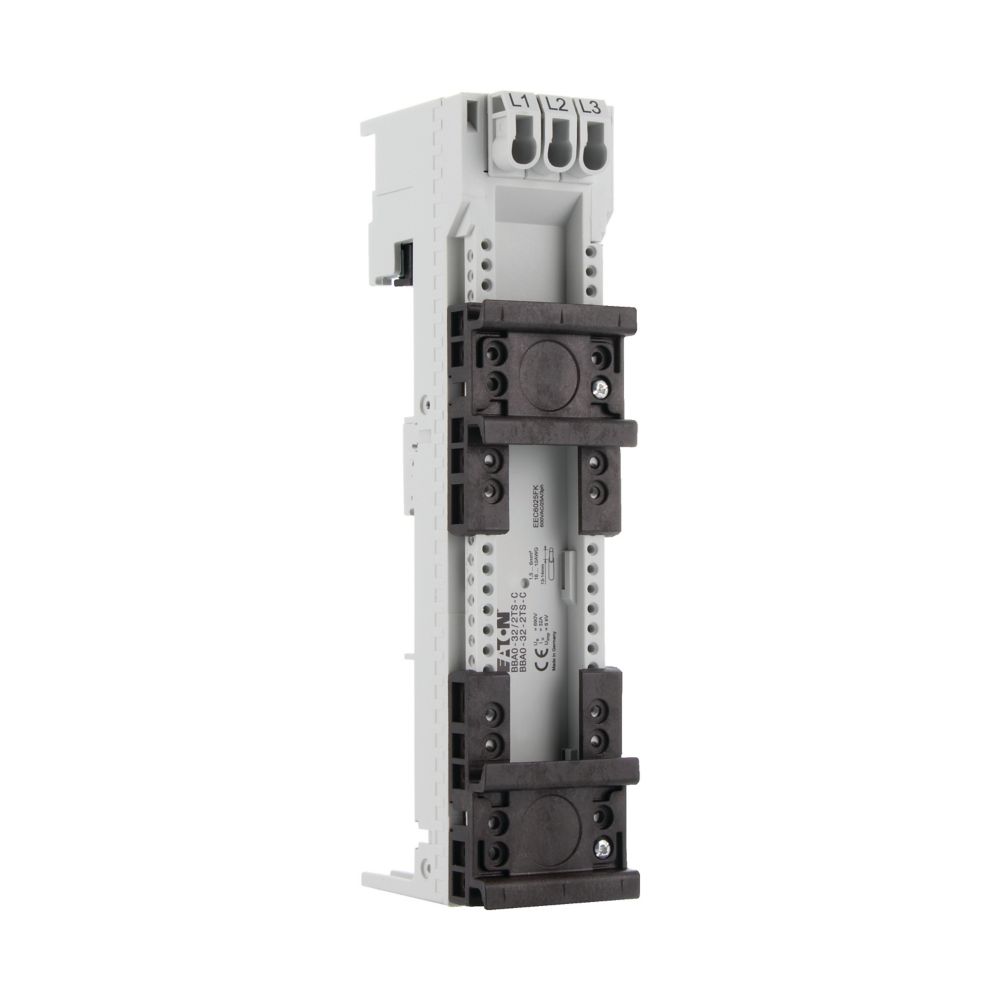

45mm busbar adapter for 60mm busbar system, two mounting rails, can be used universally for 1-, 2-, 3-phase applications, mounting rails can be moved within a 1.25 mm grid, for cable cross-sections, round cable up to 6mm², rated operational current: 32A
Specificatii
| Model/type | |
| Mounting rail armament | 2 mounting rails |
| Connection | |
| Type of electric connection | Spring clamp connection |
| Electrical | |
| Rated current In | 32 |
| Measurements | |
| Min. busbar thickness | 5 |
| Max. busbar thickness | 10 |
| Width of the adaptor | 45 |
| Rail width | 35 |
| Busbar distance | 60 |
| Package 1 | |
| volume | 0,000657 |
| weight | 0,28375 |
| length | 0,202 |
| width | 0,047 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081164530 |
| Package 2 | |
| volume | 0,003493 |
| weight | 1,135 |
| length | 0,225 |
| width | 0,115 |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 4015081843947 |
| Dimensions of product | |
| Volume | 0,000657 |
| Weight | 0,269 |
| Length | 0,2 |
| Width | 0,045 |
| Depth | 0,073 |
