Descriere

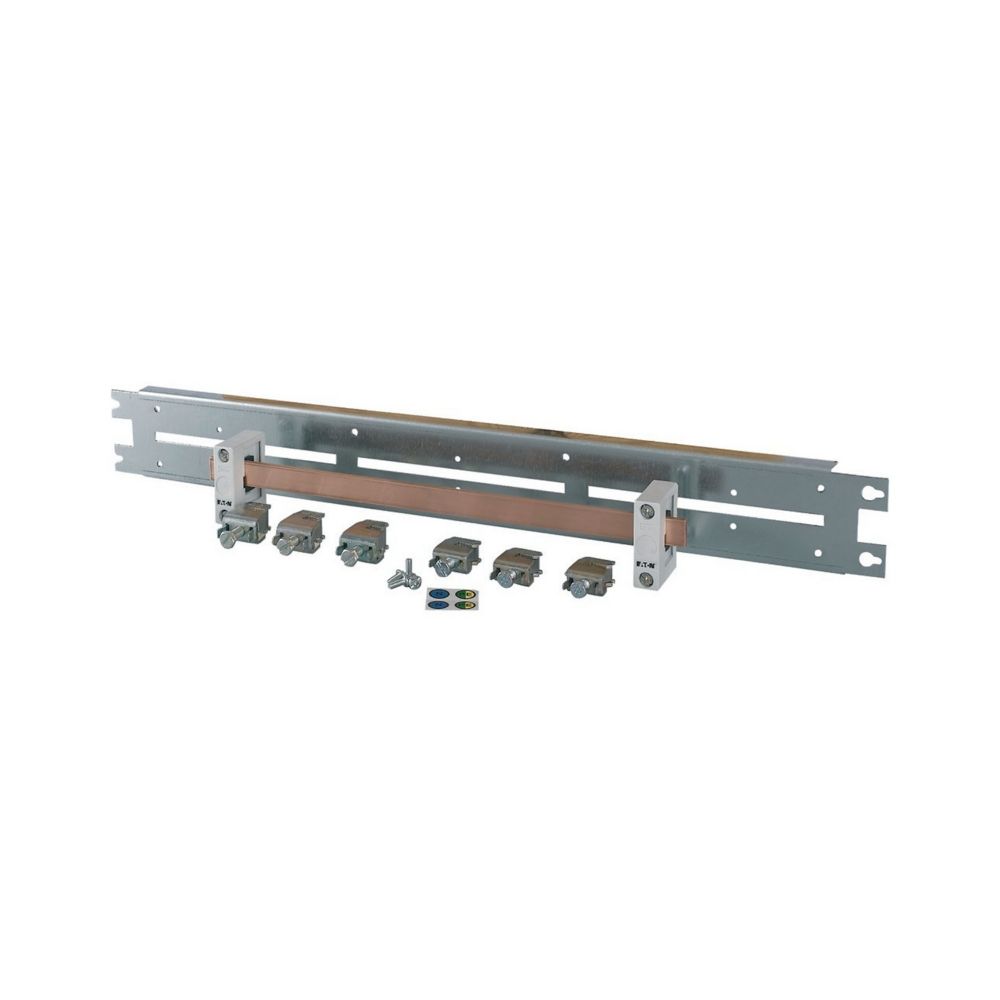

Insulated 20 x 5 mm copper busbar on modular 80-mm mounting plate, can be used as main grounding point in enclosure, wiring via AKU35/5 and AKU70/6 universal conductor connection terminals
Specificatii
| Connection | |
| Number of connections | 6 |
| Connection size, connection facility | Other |
| Electrical | |
| Rated current | 274 |
| Material | |
| Material | Copper |
| Surface of the contact rail | Untreated |
| Measurements | |
| Rail length | 408 |
| Rail width | 488 |
| Busbar thickness | 5 |
| Clearance from back plate | 29 |
| Mounting/installation | |
| Mounting method | Other |
| Horizontal mounting | Yes |
| Vertical mounting | No |
| Insulated mounting | Yes |
| Other | |
| Max. tightening torque | 0 |
| Package 1 | |
| volume | 0,001171 |
| weight | 2 |
| length | 0,08 |
| width | 0,488 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081855537 |
| Dimensions of product | |
| Volume | 0,001171 |
| Weight | 2 |
| Length | 0,08 |
| Width | 0,488 |
| Depth | 0,03 |
