Descriere

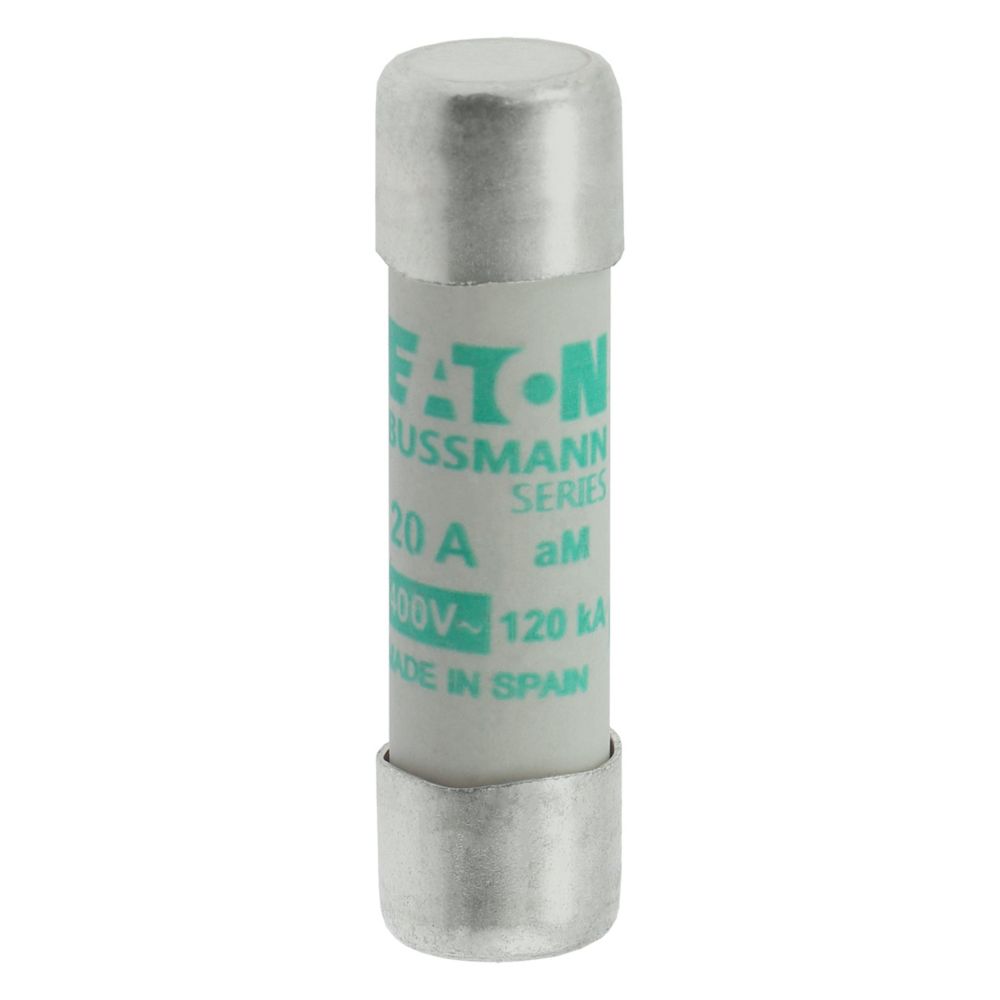

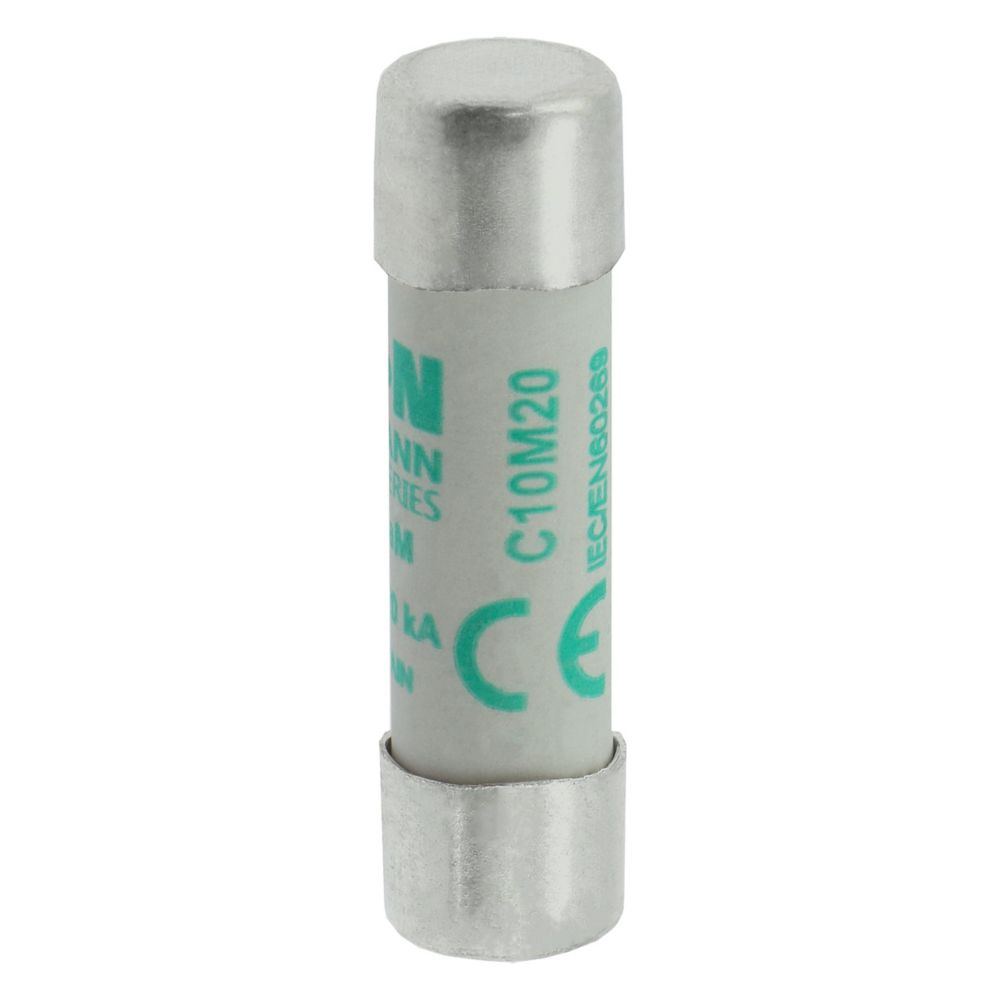

Fuse, fuse-link, low voltage, 20 A, AC 400 V, 10 x 38 mm, aM, IEC, cylindrical, motor protection, for industrial applications, IEC 60269-2
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 10x38 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 20 |
| Rated voltage | 400 |
| Release characteristic | Other |
| Breaking capacity | 120 |
| Power loss at rated current | 0.96 |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,0000038 |
| weight | 0,0082 |
| length | 0,04 |
| width | 0,012 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590493680 |
| Package 2 | |
| volume | 0,00005512 |
| weight | 0,082 |
| length | 0,013 |
| width | 0,08 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590058865 |
| Dimensions of product | |
| Volume | 0,0000038 |
| Weight | 0,0082 |
| Length | 0,038 |
| Width | 0,01 |
| Depth | 0,01 |
