Descriere

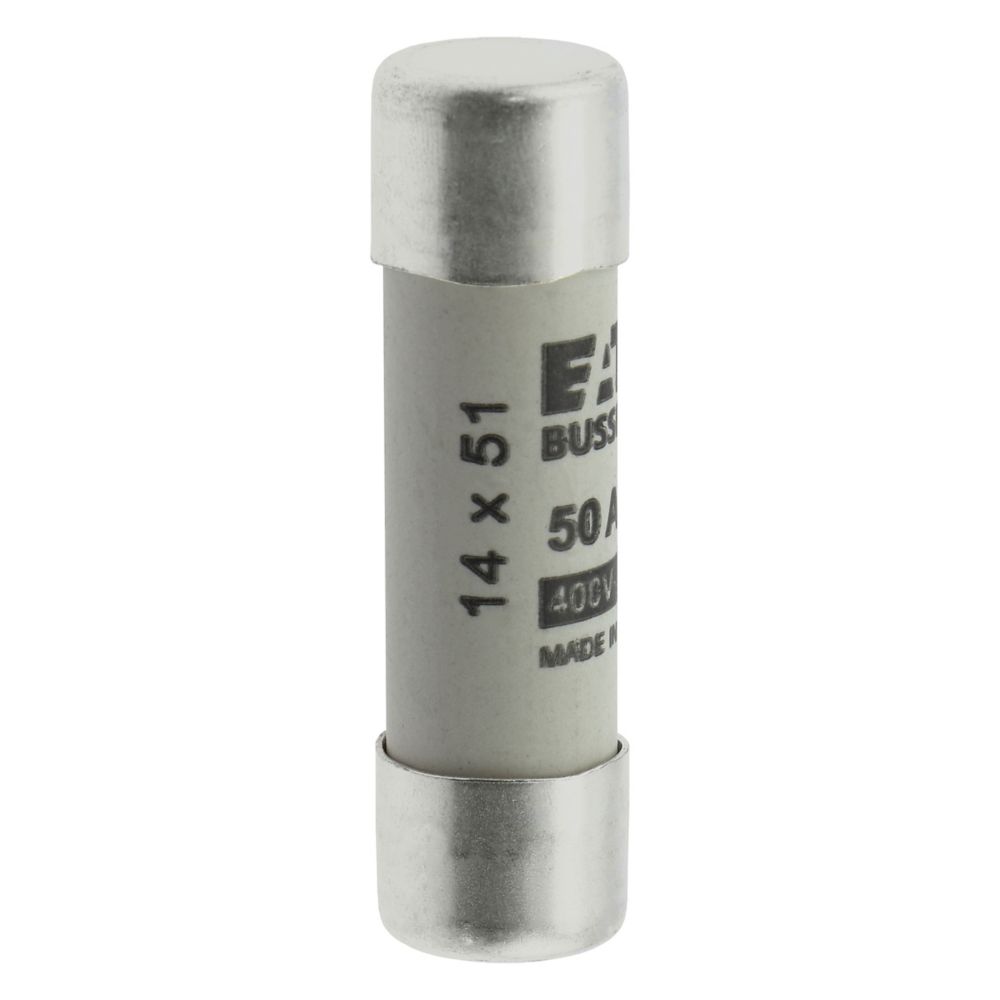

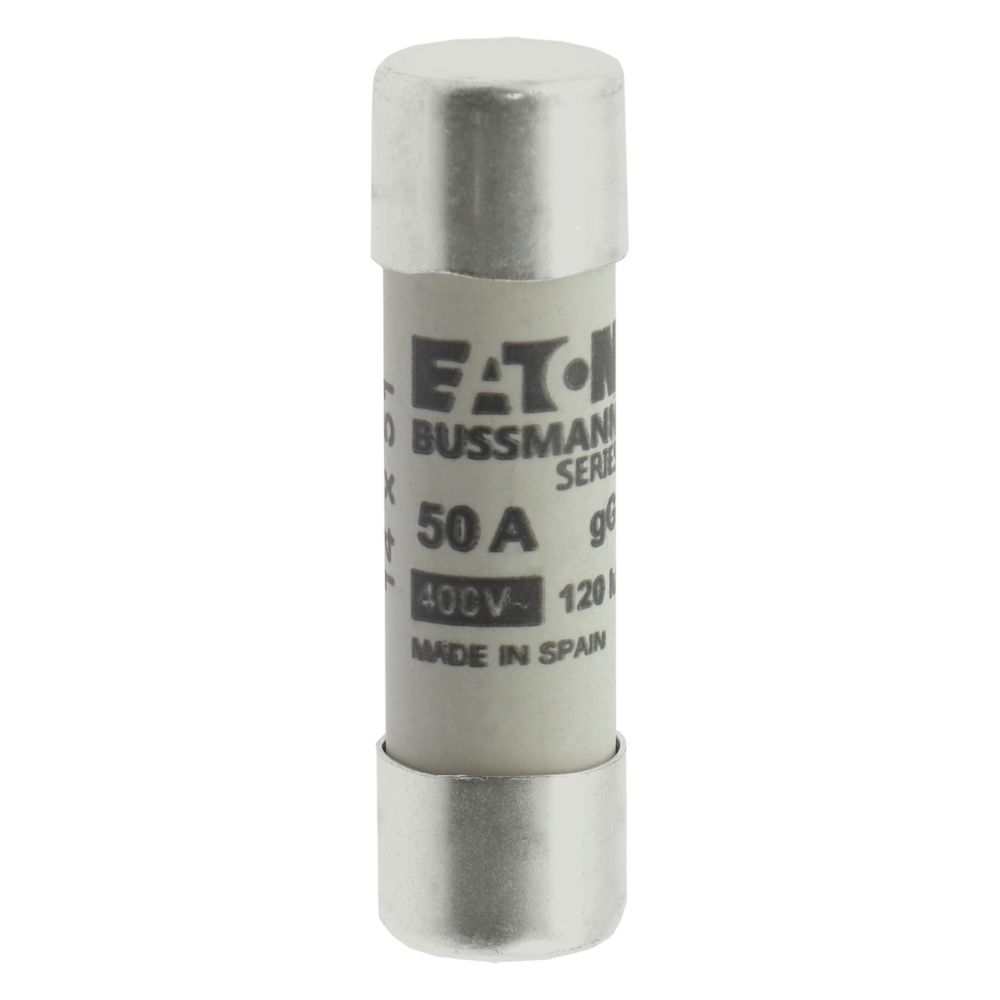

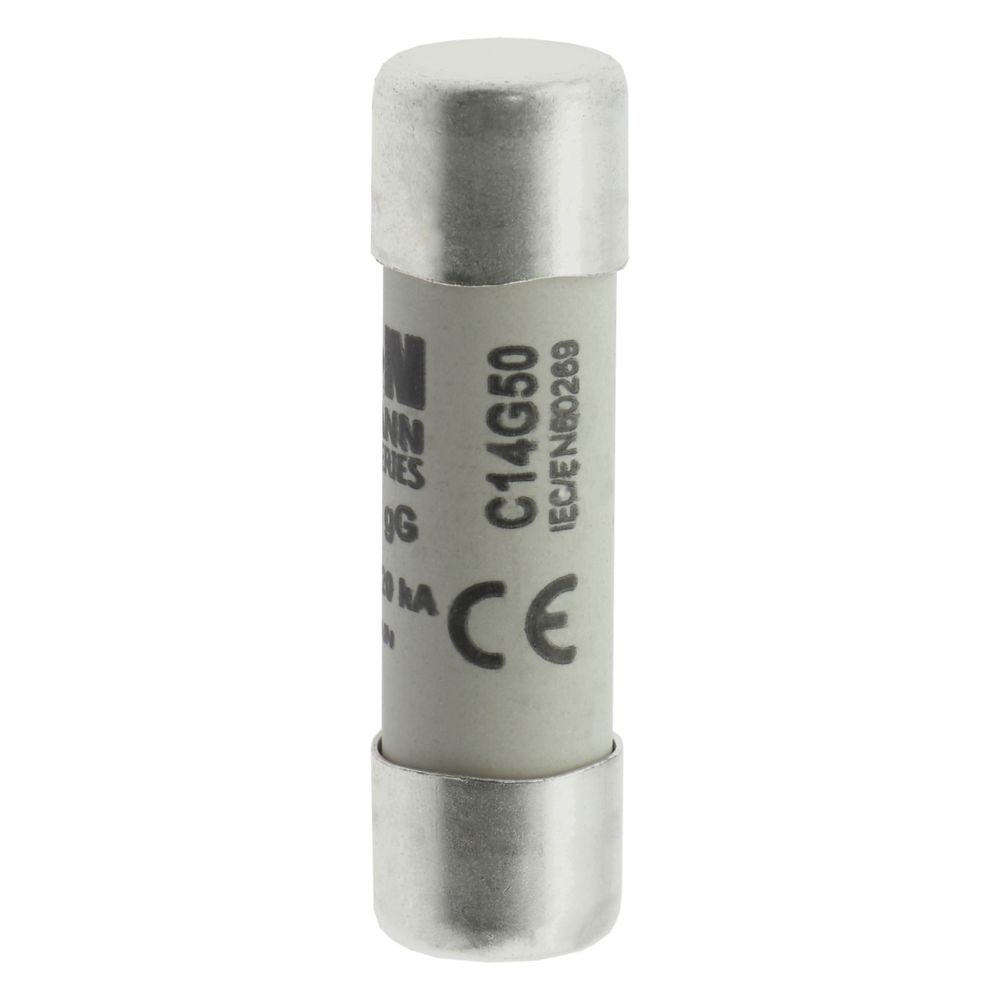

Fuse, fuse-link, low voltage, 50 A, AC 400 V, 14 x 51 mm, gL/gG, IEC, cylindrical, for industrial applications, for general purpose use, IEC 60269-2
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 14x51 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 50 |
| Rated voltage | 400 |
| Release characteristic | Other |
| Breaking capacity | 120 |
| Power loss at rated current | 4.8 |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00001043 |
| weight | 0,0206 |
| length | 0,053 |
| width | 0,0163 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590494120 |
| Package 2 | |
| volume | 0,00011655 |
| weight | 0,206 |
| length | 0,074 |
| width | 0,105 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590059015 |
| Dimensions of product | |
| Volume | 0,00001043 |
| Weight | 0,0206 |
| Length | 0,051 |
| Width | 0,0143 |
| Depth | 0,0143 |
