Descriere

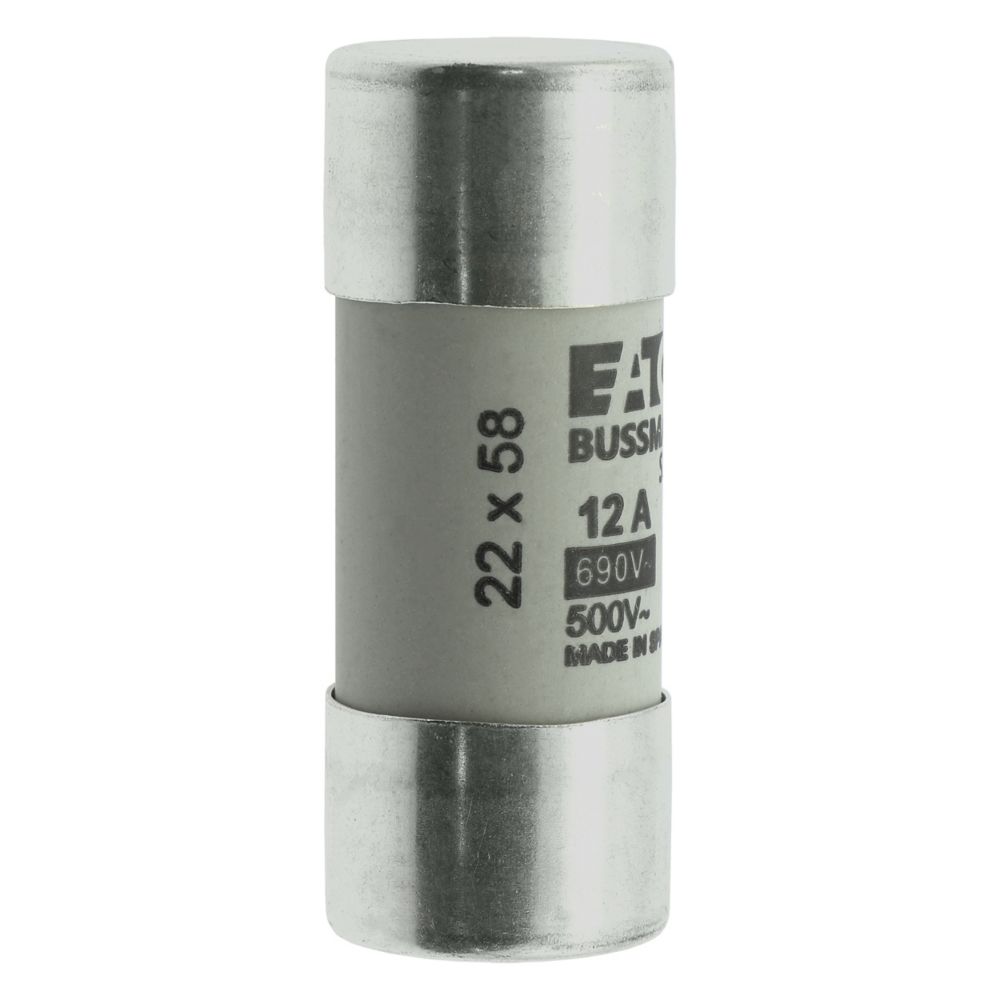

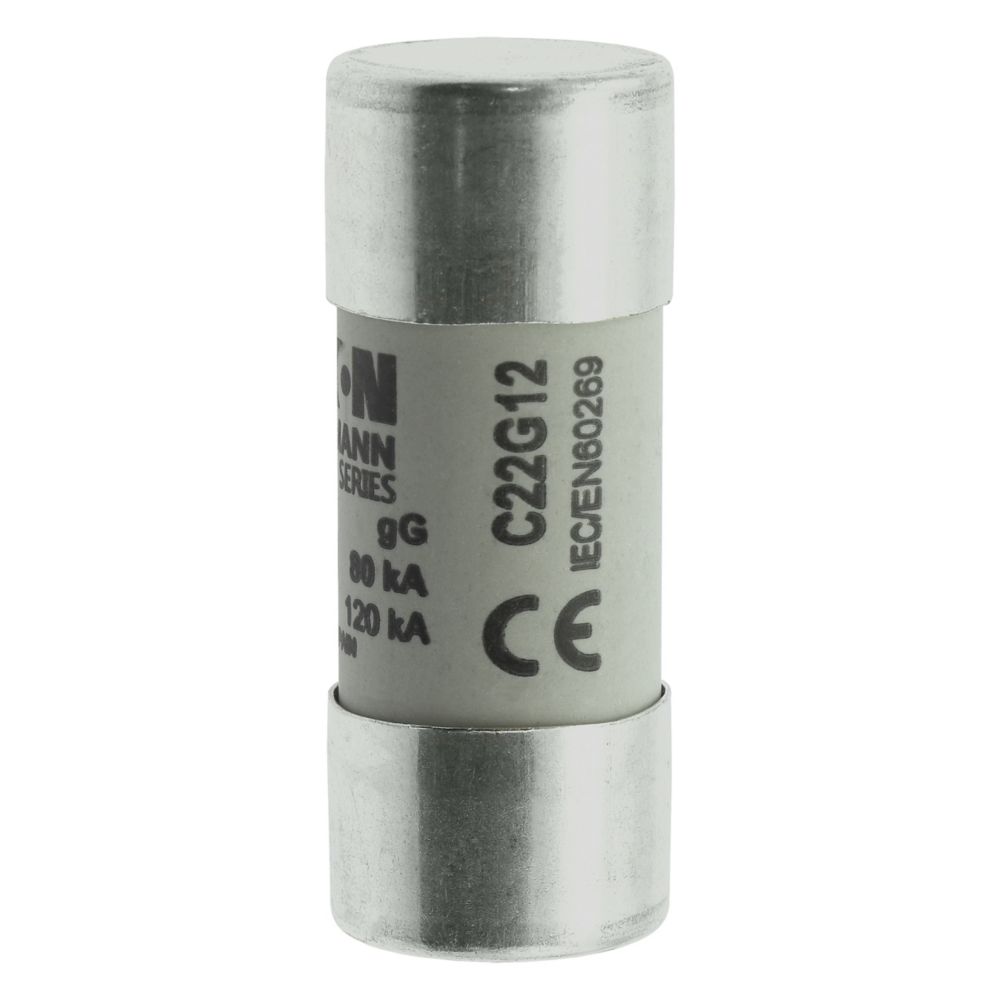

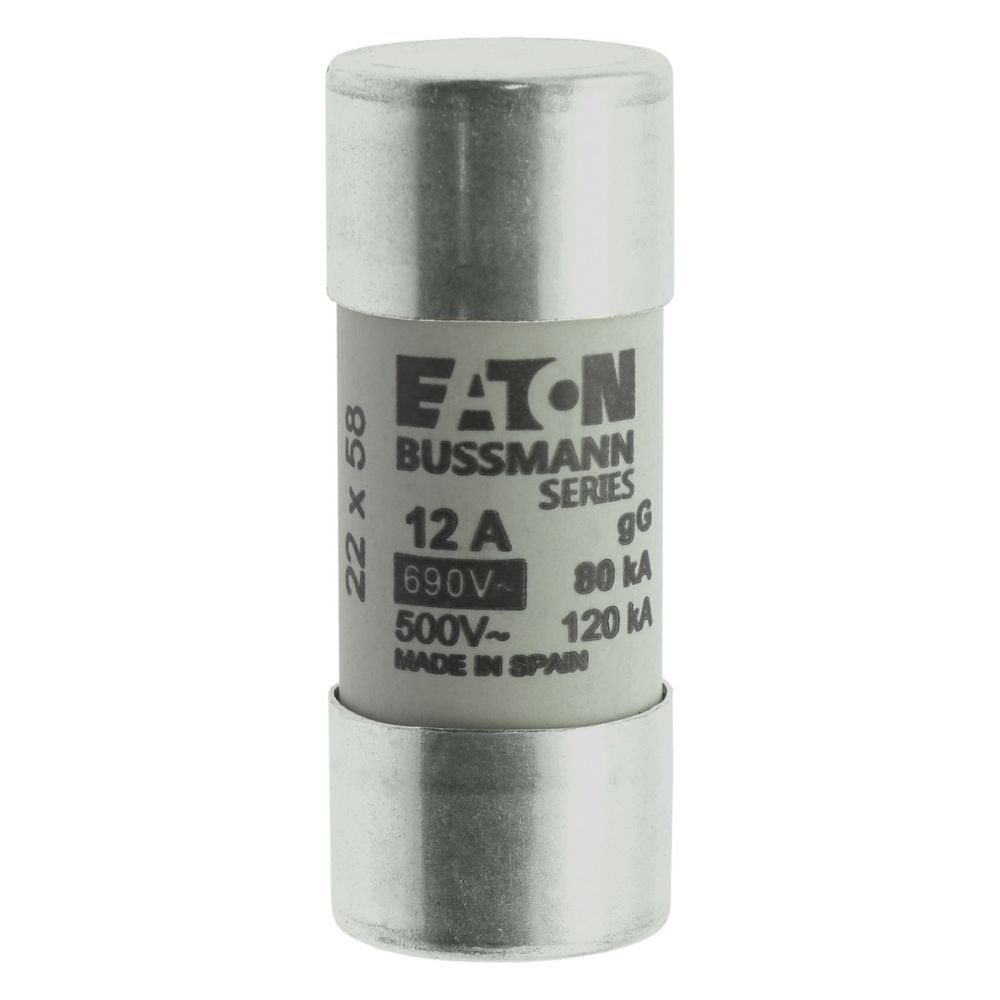

Fuse, fuse-link, low voltage, 12 A, AC 690 V, 22 x 58 mm, gL/gG, IEC, cylindrical, for industrial applications, for general purpose use, IEC 60269-2
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 22x58 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 12 |
| Rated voltage | 690 |
| Release characteristic | Other |
| Breaking capacity | 80 |
| Power loss at rated current | 1.8 |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00002859 |
| weight | 0,0557 |
| length | 0,06 |
| width | 0,0242 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590495240 |
| Package 2 | |
| volume | 0,00028571 |
| weight | 0,557 |
| length | 0,117 |
| width | 0,111 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590123044 |
| Dimensions of product | |
| Volume | 0,00002859 |
| Weight | 0,0557 |
| Length | 0,058 |
| Width | 0,0222 |
| Depth | 0,0222 |
