Descriere

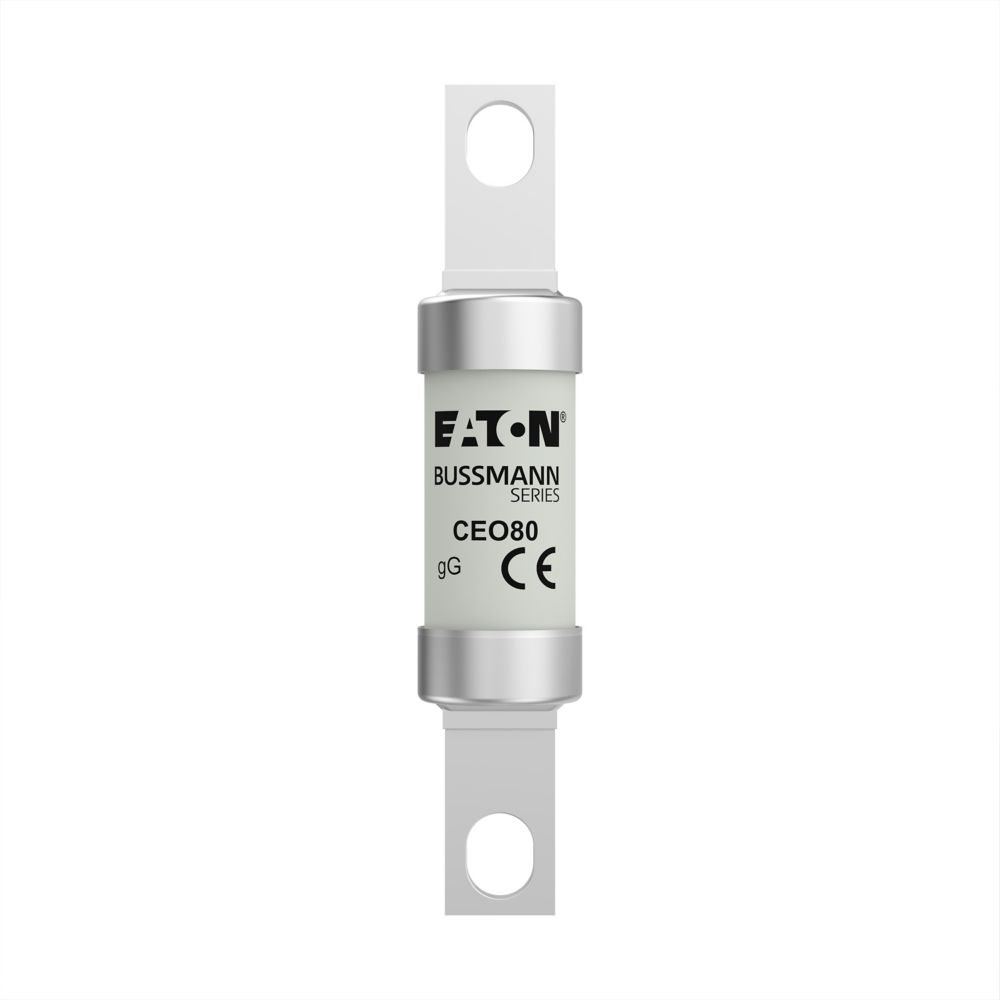

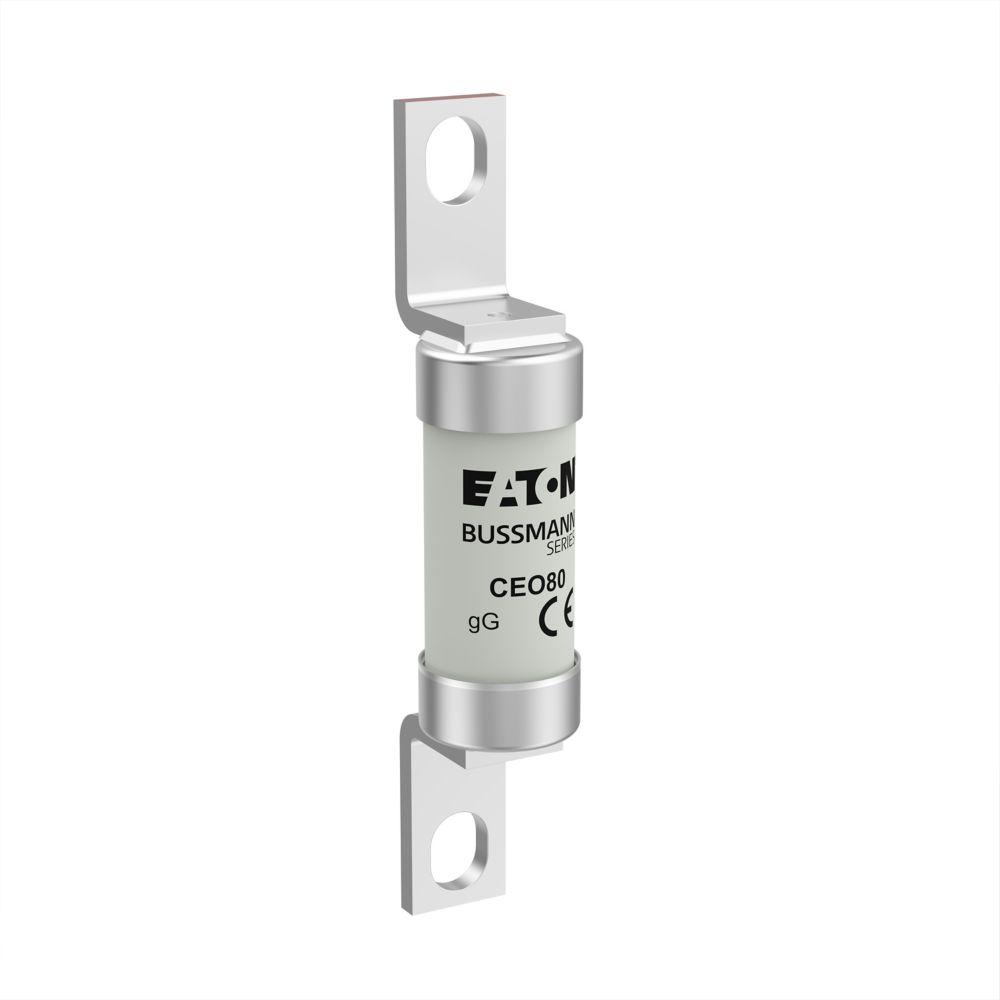

Fuse, 80 Amperage Rating, AC 500 Voltage Rating, BS88/A4, 25 x 110 mm, gL/gG, BS, offset bolted tags, general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 k Amperage Rating, Optional accessories fuse-holder RS100H
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Fuse system E |
| Fuse construction type according to IEC 60269 | A4 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Rated current | 80 |
| Breaking capacity | 80 |
| Power loss at rated current | 7.2 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 94 |
| Package 1 | |
| volume | 0,00005634 |
| weight | 0,0776 |
| length | 0,1115 |
| width | 0,023 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590496322 |
| Package 2 | |
| volume | 0,00062317 |
| weight | 0,776 |
| length | 0,112 |
| width | 0,107 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590017954 |
| Package 3 | |
| volume | 0,018865 |
| weight | 13,968 |
| length | 0,385 |
| width | 0,28 |
| qmax | 180 |
| qmin | 180 |
| um | CT |
| gtin | 5027590356053 |
| Dimensions of product | |
| Volume | 0,00005634 |
| Weight | 0,0776 |
| Length | 0,1095 |
| Width | 0,021 |
| Depth | 0,0245 |
