Descriere

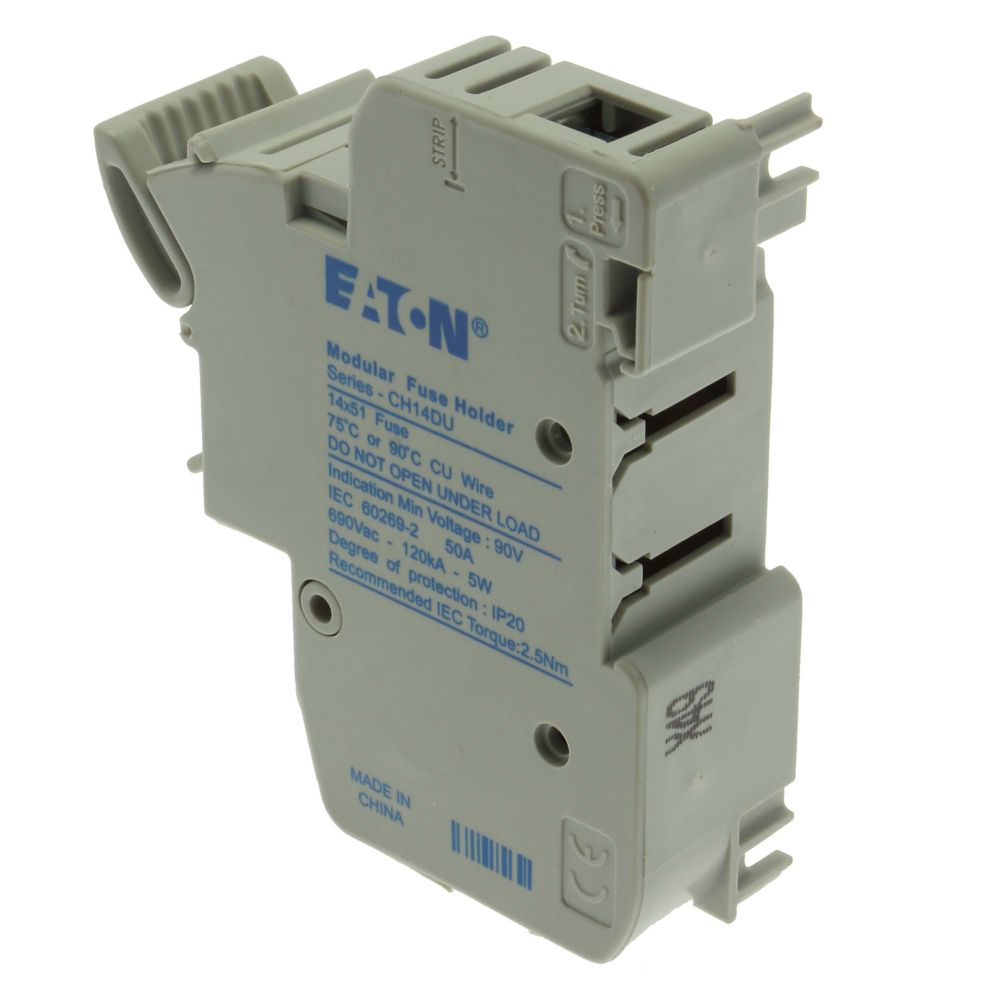

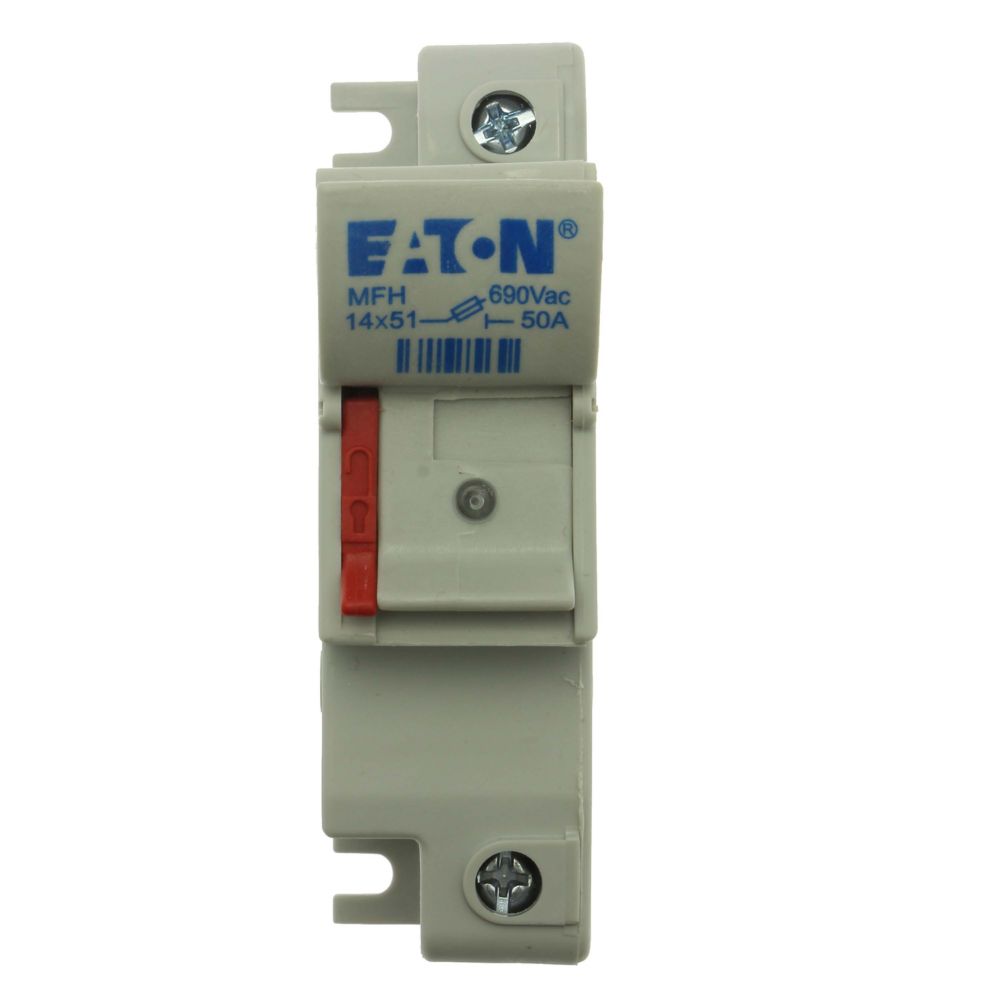

Fuse accessory, Fuse-holder, low voltage, 50 A, AC 690 V, 14 x 51 mm, 1P, IEC, with indicator, replaced by CH141BI, C14G fuses, C14M fuses, IEC 60269-1
Documente
Specificatii
| Electrical | |
| Nominal voltage | 690 |
| Number of poles | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Measurements | |
| For fuse size | 14x51 mm |
| Width in number of modular spacings | 1.5 |
| Built-in depth | 51.5 |
| Options | |
| Concurrently switching neutral conductor | No |
| Lockable | Yes |
| Model/type | |
| With optical defect indication | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 0,00018878 |
| weight | 0,097 |
| length | 0,078 |
| width | 0,029 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590496612 |
| Package 2 | |
| volume | 0,00132096 |
| weight | 0,582 |
| length | 0,172 |
| width | 0,096 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590326124 |
| Dimensions of product | |
| Volume | 0,00018878 |
| Weight | 0,087333 |
| Length | 0,076 |
| Width | 0,027 |
| Depth | 0,092 |
