Descriere

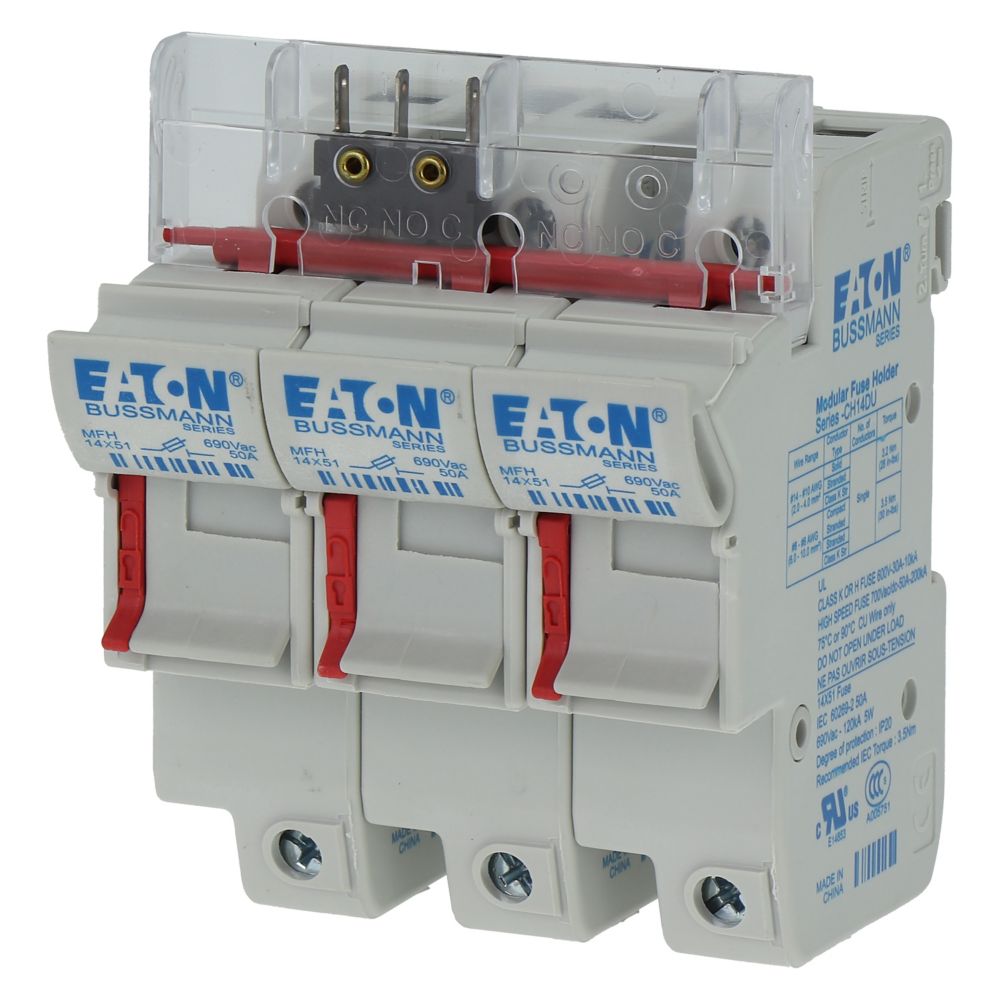

Fuse accessory, Fuse-holder, low voltage, 50 A, AC 690 V, 14 x 51 mm, 3P + neutral, IEC, with microswitch, replaced by CH143BNMS-F, C14G(A)S fuses, IEC 60269-1
Documente
Specificatii
| Electrical | |
| Nominal voltage | 690 |
| Number of poles | 3 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Measurements | |
| For fuse size | 14x51 mm |
| Width in number of modular spacings | 6 |
| Built-in depth | 51.5 |
| Options | |
| Concurrently switching neutral conductor | No |
| Lockable | Yes |
| Model/type | |
| With optical defect indication | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 0,00062016 |
| weight | 0,8 |
| length | 0,078 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590328272 |
| Package 2 | |
| volume | 0,0013056 |
| weight | 1,6 |
| length | 0,17 |
| width | 0,096 |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 5027590332163 |
| Dimensions of product | |
| Volume | 0,00062016 |
| Weight | 0,7495 |
| Length | 0,076 |
| Width | 0,08 |
| Depth | 0,102 |
