Descriere

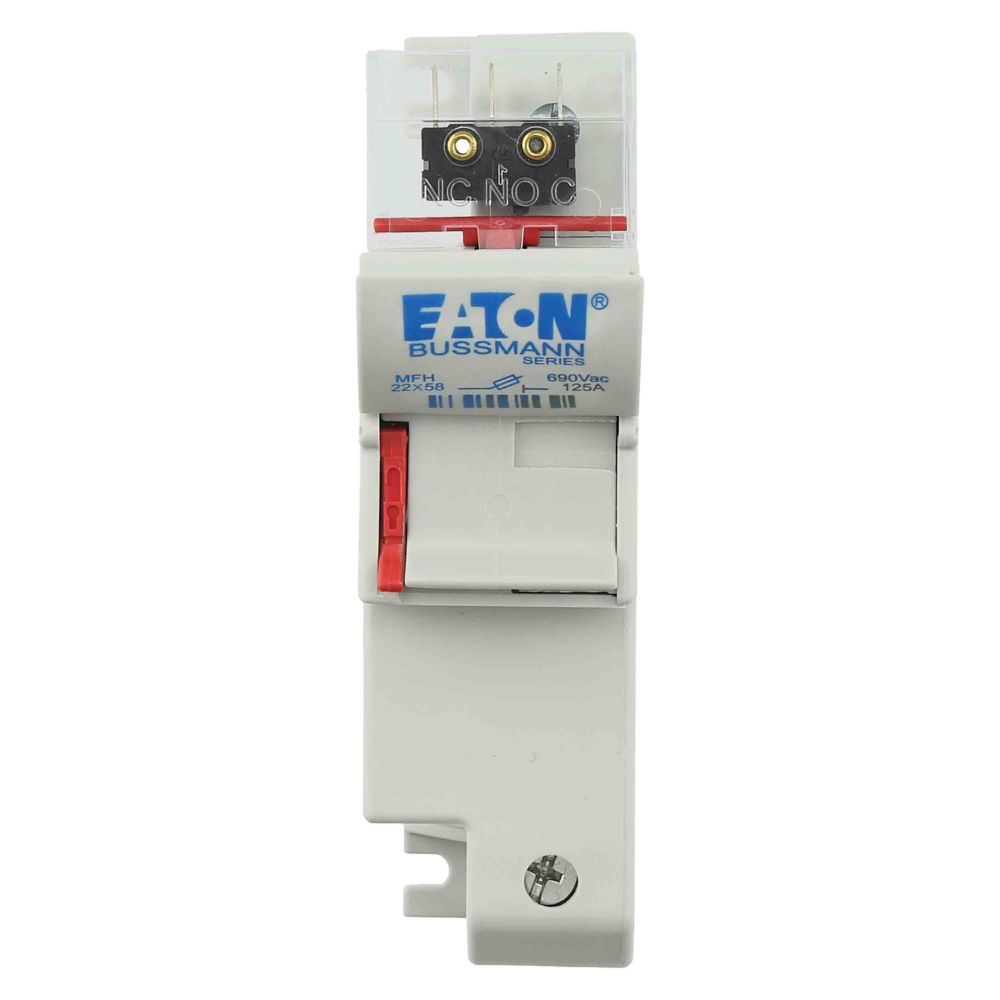

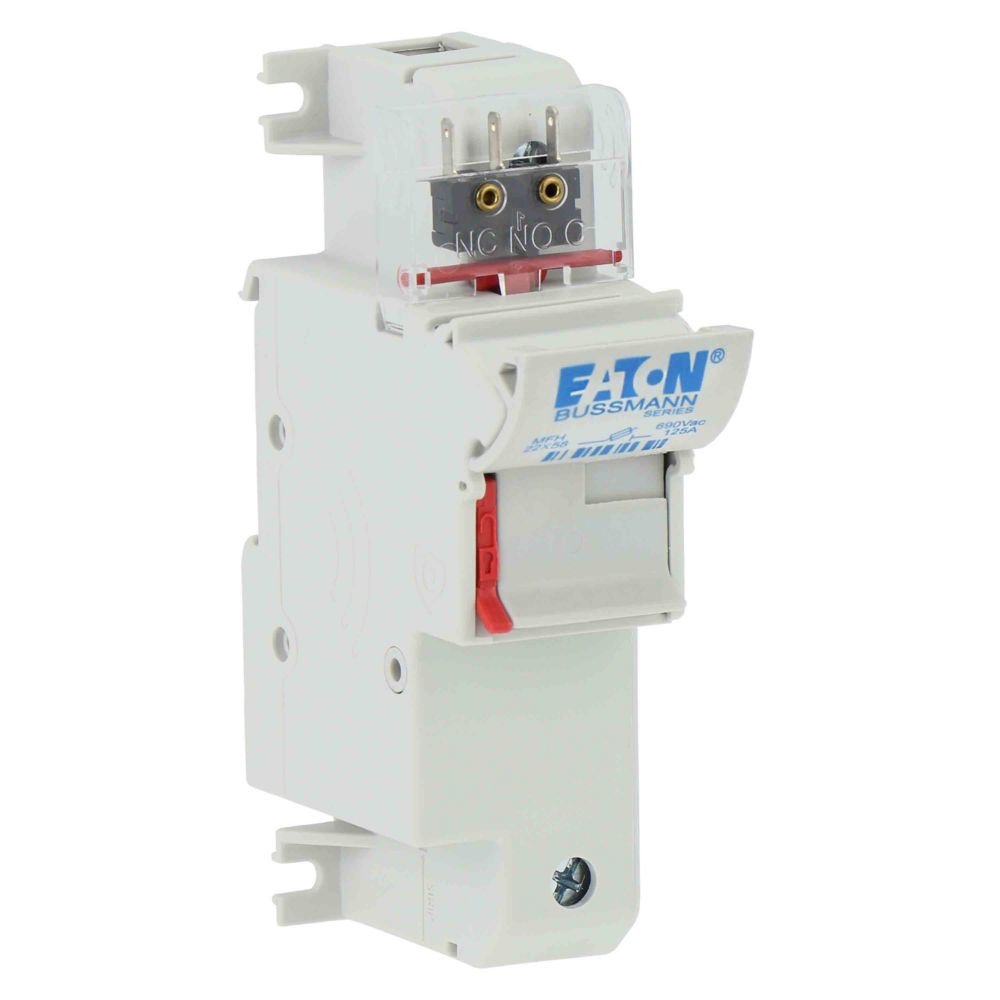

Fuse accessory, Fuse-holder, low voltage, 125 A, AC 690 V, 22 x 58 mm, 1P, IEC, UL, with microswitch, C22M and C22G fuses, IEC 60269-1, IEC 60269-2, IP20
Documente
Specificatii
| Electrical | |
| Nominal voltage | 690 |
| Number of poles | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Measurements | |
| For fuse size | 22x58 mm |
| Width in number of modular spacings | 2 |
| Built-in depth | 51.5 |
| Options | |
| Concurrently switching neutral conductor | No |
| Lockable | Yes |
| Model/type | |
| With optical defect indication | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 0,00034096 |
| weight | 0,1875 |
| length | 0,079 |
| width | 0,038 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590496995 |
| Package 2 | |
| volume | 0,00276008 |
| weight | 1,125 |
| length | 0,235 |
| width | 0,135 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590328371 |
| Dimensions of product | |
| Volume | 0,00034096 |
| Weight | 0,184167 |
| Length | 0,077 |
| Width | 0,036 |
| Depth | 0,123 |
