Descriere

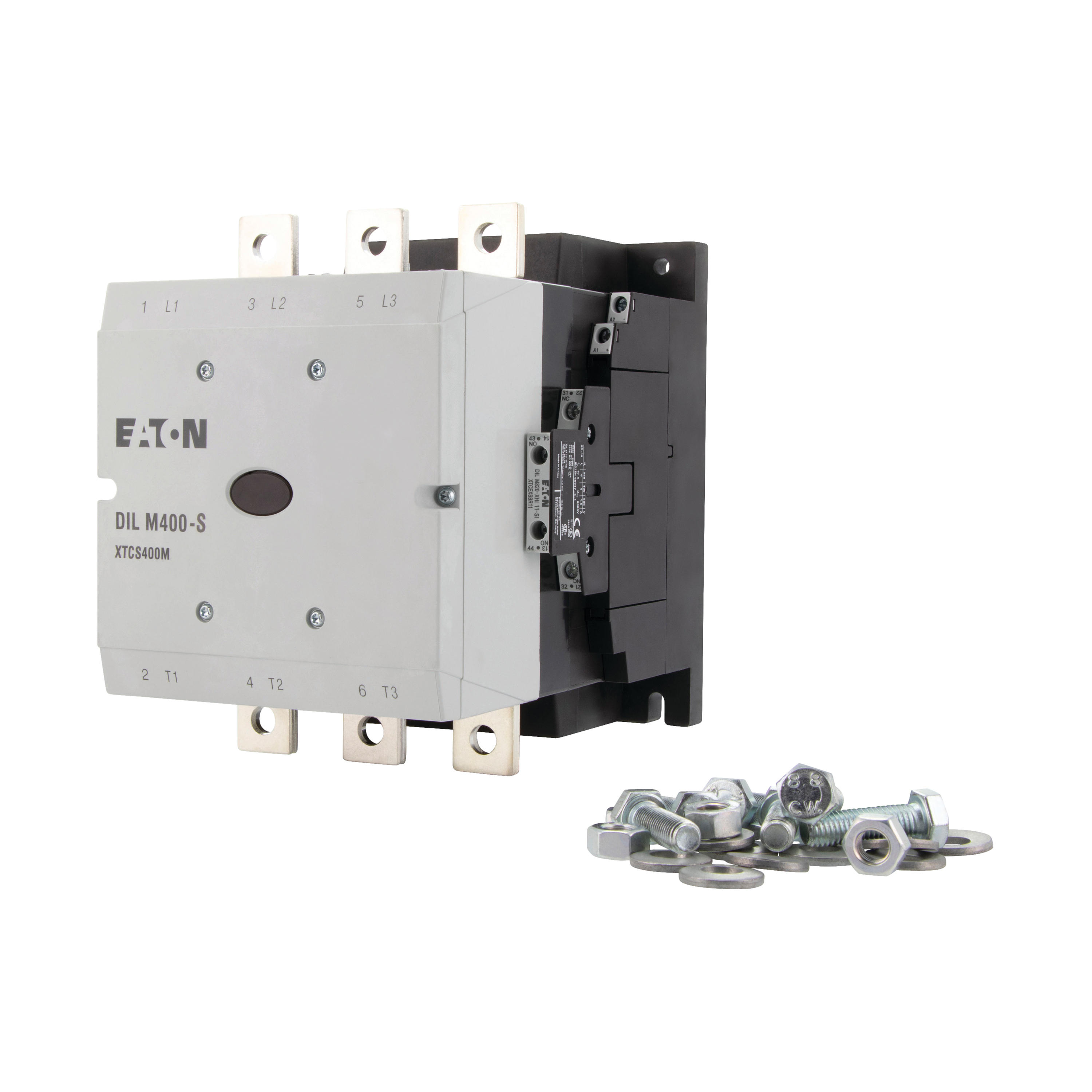

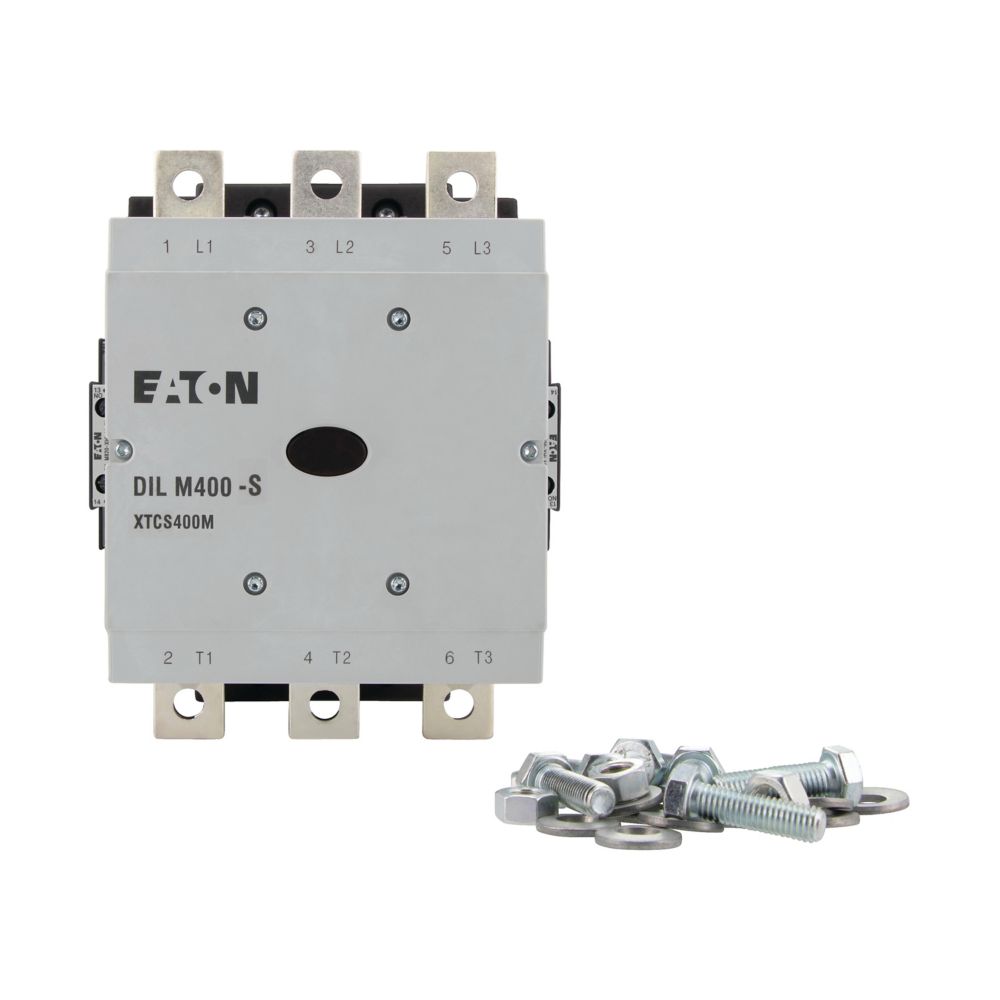

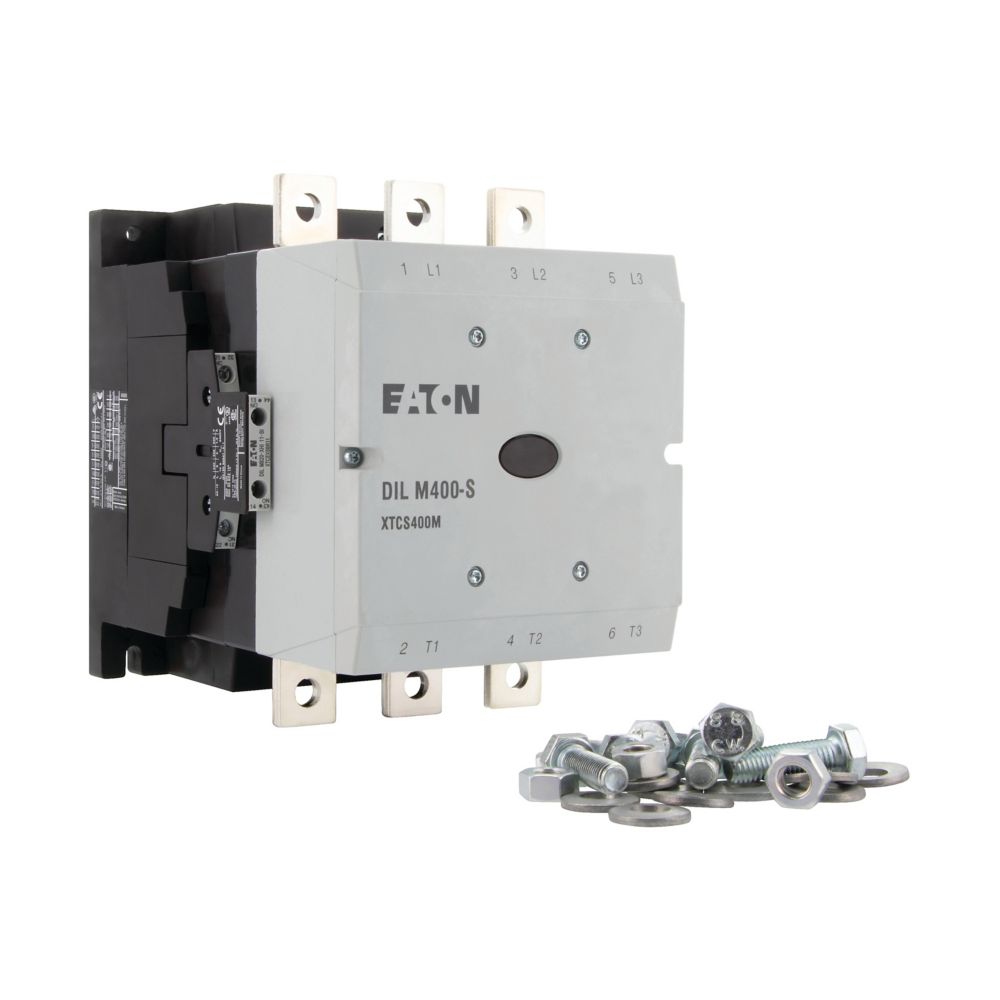

Contactor, Application: Contactors for Motors, Standard devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw connection, Rated operational current AC-3 380 V 400 V: Ie= 400 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 612 A, enclosed: Ith= 450 A, Rated operational current AC-1 Conventional free air thermal current , 1 pole open: Ith= 1250 A, enclosed: Ith= 1125 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 125 kW, 380 V 400 V: P= 212 kW, 660 V 690 V: P= 300 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 92 kW, 380 V 400 V: P= 160 kW, 660 V 690 V: P= 240 kW, Can be combined with auxiliary contact: DILM820-XHI…, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC operation
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 110 |
| Rated control supply voltage AC 60 Hz | 110 |
| Rated control supply voltage DC | 0 |
| Voltage type for actuating | AC |
| Operating voltage AC 50 Hz | 110 |
| Operating voltage AC 60 Hz | 110 |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 400 |
| Rated operation power at AC-3, 400 V | 200 |
| Rated operation current Ie at AC-4, 400 V | 296 |
| Rated operation power at AC-4, 400 V | 160 |
| Rated operation power NEMA | 223 |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection of main circuit | Rail connection |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 160 |
| Height | 209 |
| Depth | 216 |
| Package 1 | |
| volume | 0,012694 |
| weight | 8,958 |
| length | 0,262 |
| width | 0,19 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082741952 |
| Dimensions of product | |
| Volume | 0,007223 |
| Weight | 8,5 |
| Length | 0,216 |
| Width | 0,16 |
| Depth | 0,209 |
