Descriere

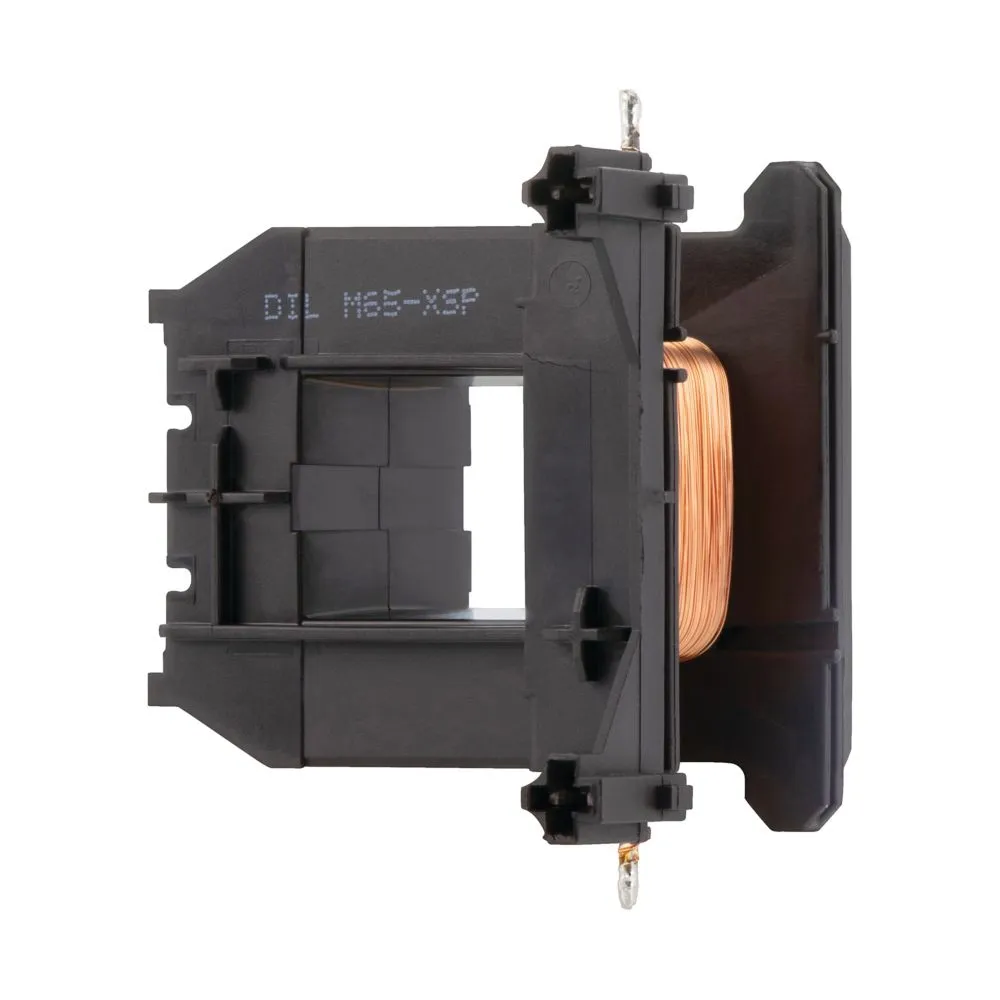

Contactor, Application: Contactors for 4 pole electric consumers, Contactors up to 200 A, 4 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, Connection technique: Screw terminals, Number of poles: 4 pole, 380 V 400 V: Ie= 50 A, Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 80 A, enclosed: Ith= 64 A, Conventional free air thermal current, 1 pole open: Ith= 207 A, enclosed: Ith= 186 A, 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW , Instructions: Contacts to EN 50 012., integrated suppressor circuit in actuating electronics, Voltage AC/DC: DC operation
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 0 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 24 |
| Voltage type for actuating | DC |
| Operating voltage AC 50 Hz | 230 |
| Operating voltage AC 60 Hz | 230 |
| Rated operation current Ie at AC-1, 400 V | 80 |
| Rated operation current Ie at AC-3, 400 V | 50 |
| Rated operation power at AC-3, 400 V | 22 |
| Rated operation current Ie at AC-4, 400 V | 40 |
| Rated operation power at AC-4, 400 V | 20 |
| Rated operation power NEMA | 29.8 |
| Connection | |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 4 |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Options | |
| Suitable for distribution board | No |
| Measurements | |
| Width | 74 |
| Height | 115 |
| Depth | 132 |
| Package 1 | |
| volume | 0,002109 |
| weight | 1,252 |
| length | 0,15 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081094646 |
| Dimensions of product | |
| Volume | 0,001123 |
| Weight | 1,2 |
| Length | 0,132 |
| Width | 0,074 |
| Depth | 0,115 |
