Descriere

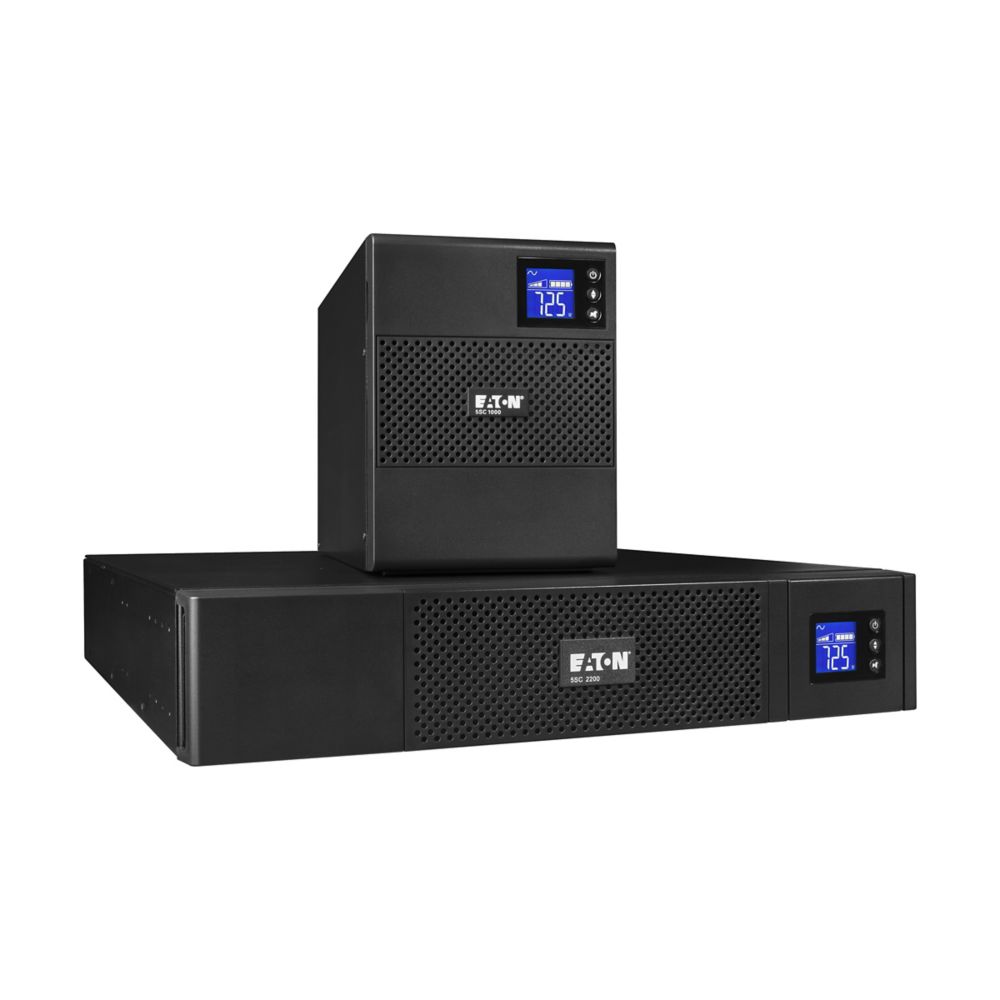

Eaton 5SC UPS, 750 VA, 525 W, Input: C14, Outputs: (6) C13, Tower
Alte coduri:
upc: 743172045157
upc: 743172045157
Specificatii
| Electrical | |
| Input voltage | 184 |
| Number of phases primary | 1 |
| Output voltage | 220 |
| Output apparent power | 750 |
| Power consumption | 31 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Max. voltage distortion output (linear load) | - |
| Output power factor | 0.7 |
| Other | |
| Primary frequency | 45 |
| Secondary frequency | 50 |
| Bridging time full load | 12.5 |
| USV- technology | Line-interactive |
| Performance | |
| Output effective power | 525 |
| Overall efficiency | 96 |
| Efficiency in eco-mode | - |
| Connection | |
| USB interface | No |

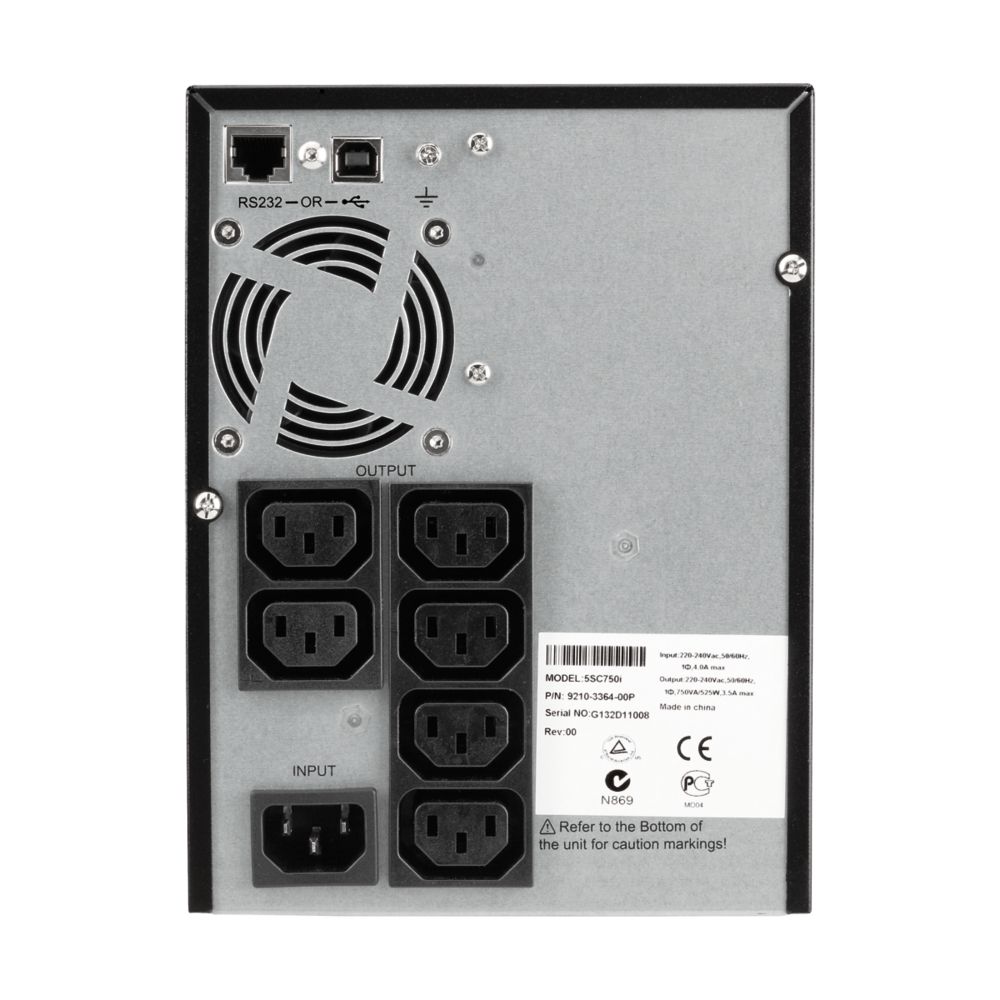

| Input connection | C14 |
| Number of output connections C13 | 6 |
| Number of output connections C19 | - |
| Number of output connections with protective contact CEE 7/3 (type F) | - |
| Number of output connections fixed connection | - |
| Number of output connections French standard (Type E) | - |
| Communication | |
| With communication interface RS-232 | No |
| Options | |
| SNMP | No |
| Modular | No |
| Potential free switch contact | No |
| Auto shut down function | Yes |
| Measurements | |
| Height | 210 |
| Width | 340 |
| Depth | 150 |
| Weight | 10.4 |
| Application | |
| Suitable for network-management | No |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 0,02462858 |
| weight | 11,5 |
| length | 0,476 |
| width | 0,238 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 743172045157 |
| Dimensions of product | |
| Volume | 0,01071 |
| Weight | 10,4 |
| Length | 0,15 |
| Width | 0,34 |
| Depth | 0,21 |
