Descriere

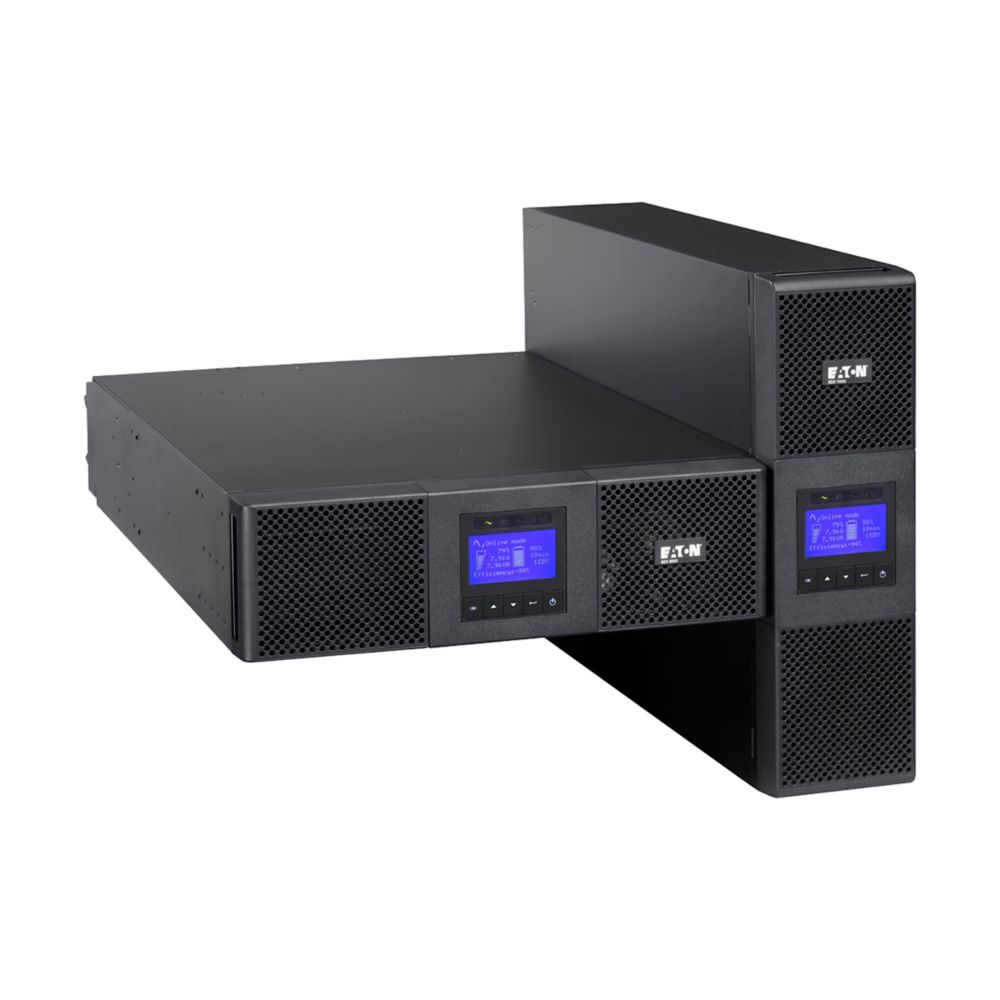

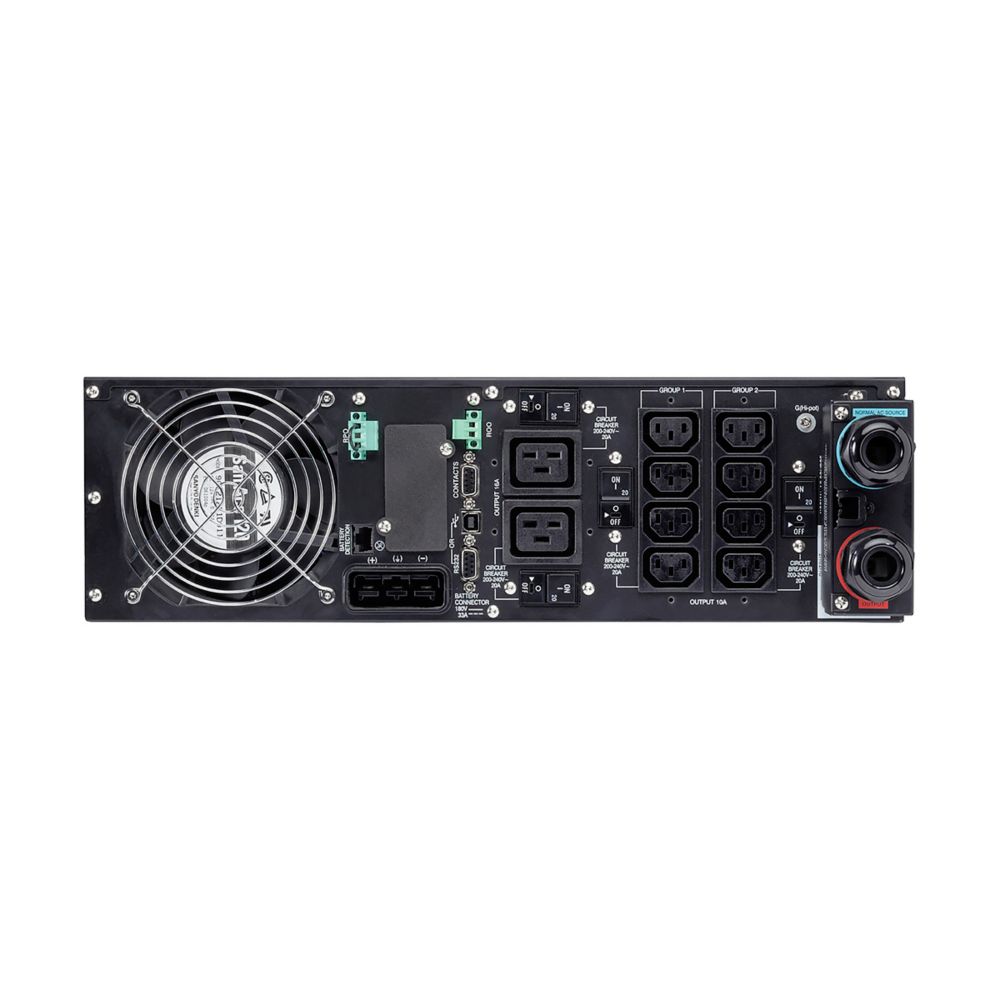

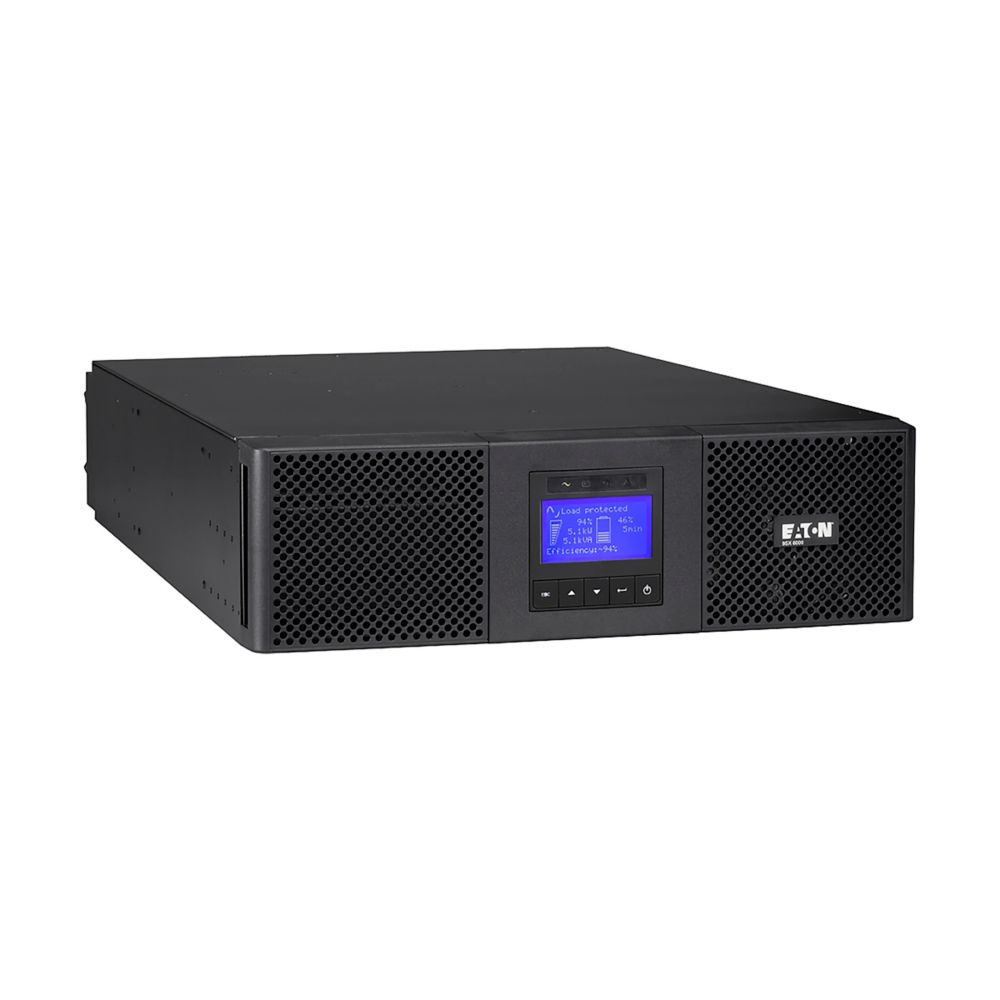

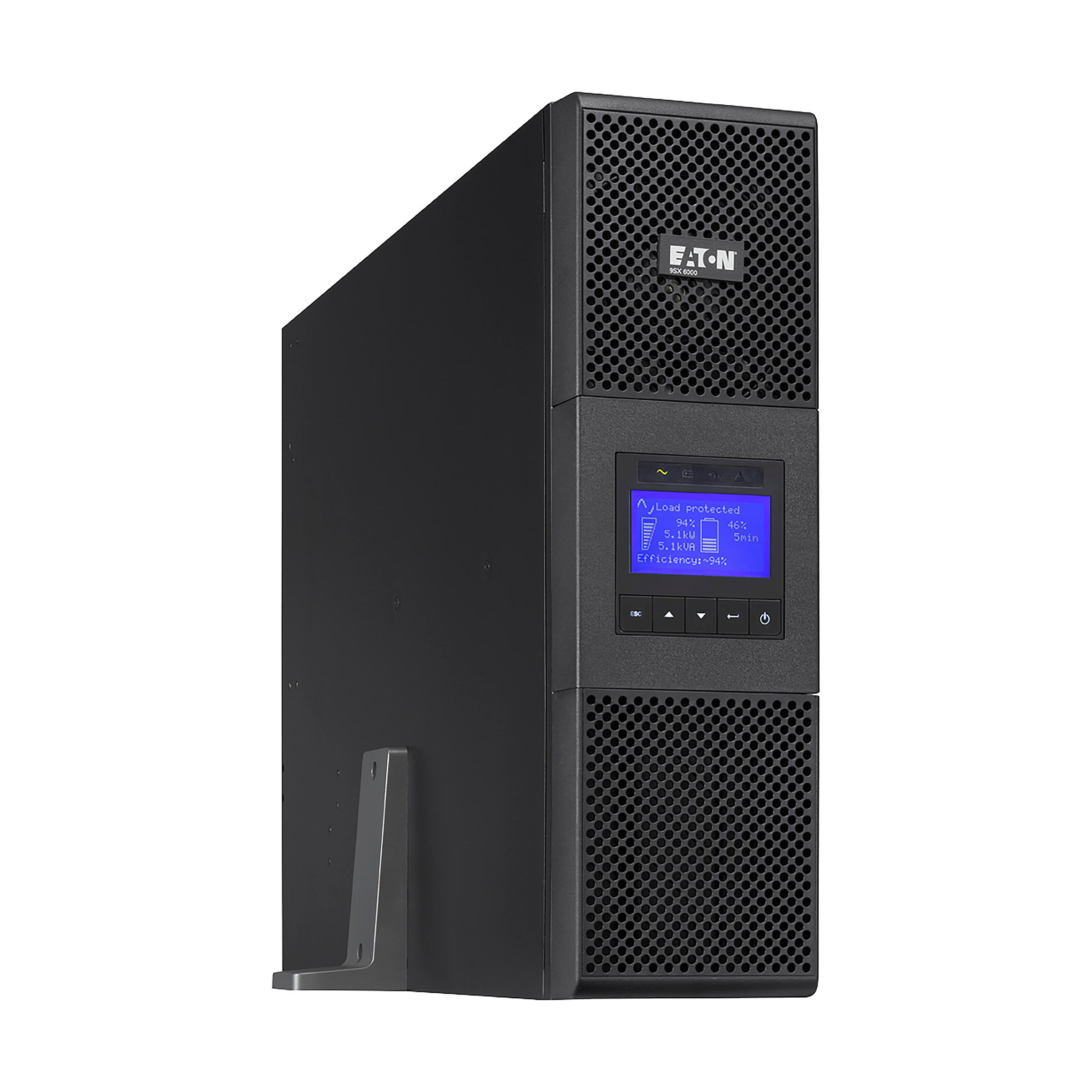

Eaton 9SX UPS, 6000 VA, 5400 W, Input: Hardwired, Outputs: (8) C13, (2) C19, Hardwired, Rack/tower, 3U
Documente
Specificatii
| Electrical | |
| Input voltage | 100 |
| Number of phases primary | 1 |
| Output voltage | 200 |
| Output apparent power | 6000 |
| Power consumption | 270 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Max. voltage distortion output (linear load) | 2 |
| Output power factor | 0.9 |
| Other | |
| Primary frequency | 40 |
| Secondary frequency | 50 |
| Bridging time full load | 8.5 |
| USV- technology | Online |
| Performance | |
| Output effective power | 5400 |
| Overall efficiency | 94 |
| Efficiency in eco-mode | 98 |
| Connection | |
| USB interface | No |
| Input connection | Fixed connection |
| Number of output connections C13 | 8 |
| Number of output connections C19 | 2 |
| Number of output connections with protective contact CEE 7/3 (type F) | - |
| Number of output connections fixed connection | 1 |
| Number of output connections French standard (Type E) | - |
| Communication | |
| With communication interface RS-232 | No |
| Options | |
| SNMP | No |
| Modular | No |
| Potential free switch contact | Yes |
| Auto shut down function | Yes |
| Measurements | |
| Height | 130 |
| Width | 440 |
| Depth | 685 |
| Weight | 48 |
| Application | |
| Suitable for network-management | No |
| Model/type | |
| Construction type | 482.6 mm (19 inch) device |
| Package 1 | |
| volume | 0,17814128 |
| weight | 59,1 |
| length | 0,595 |
| width | 0,96 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 743172039354 |
| Dimensions of product | |
| Volume | 0,039182 |
| Weight | 48 |
| Length | 0,685 |
| Width | 0,44 |
| Depth | 0,13 |
