Descriere

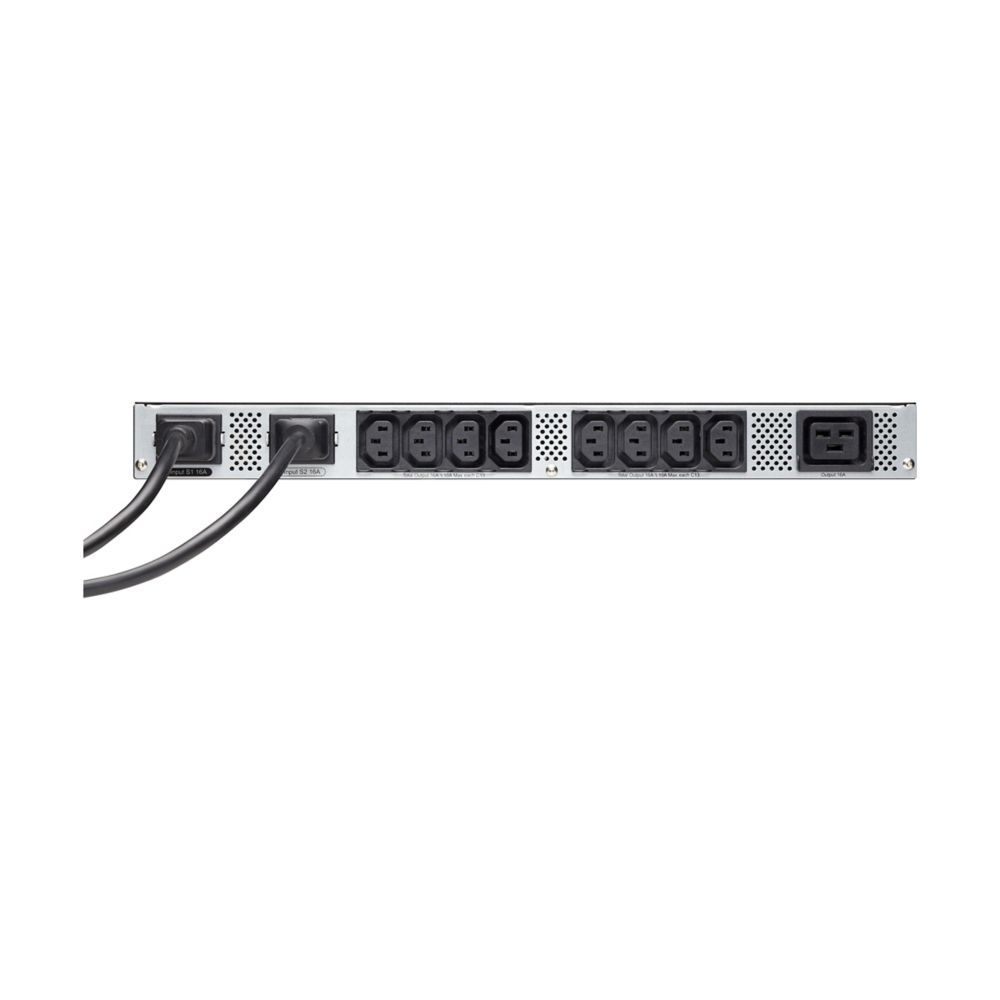

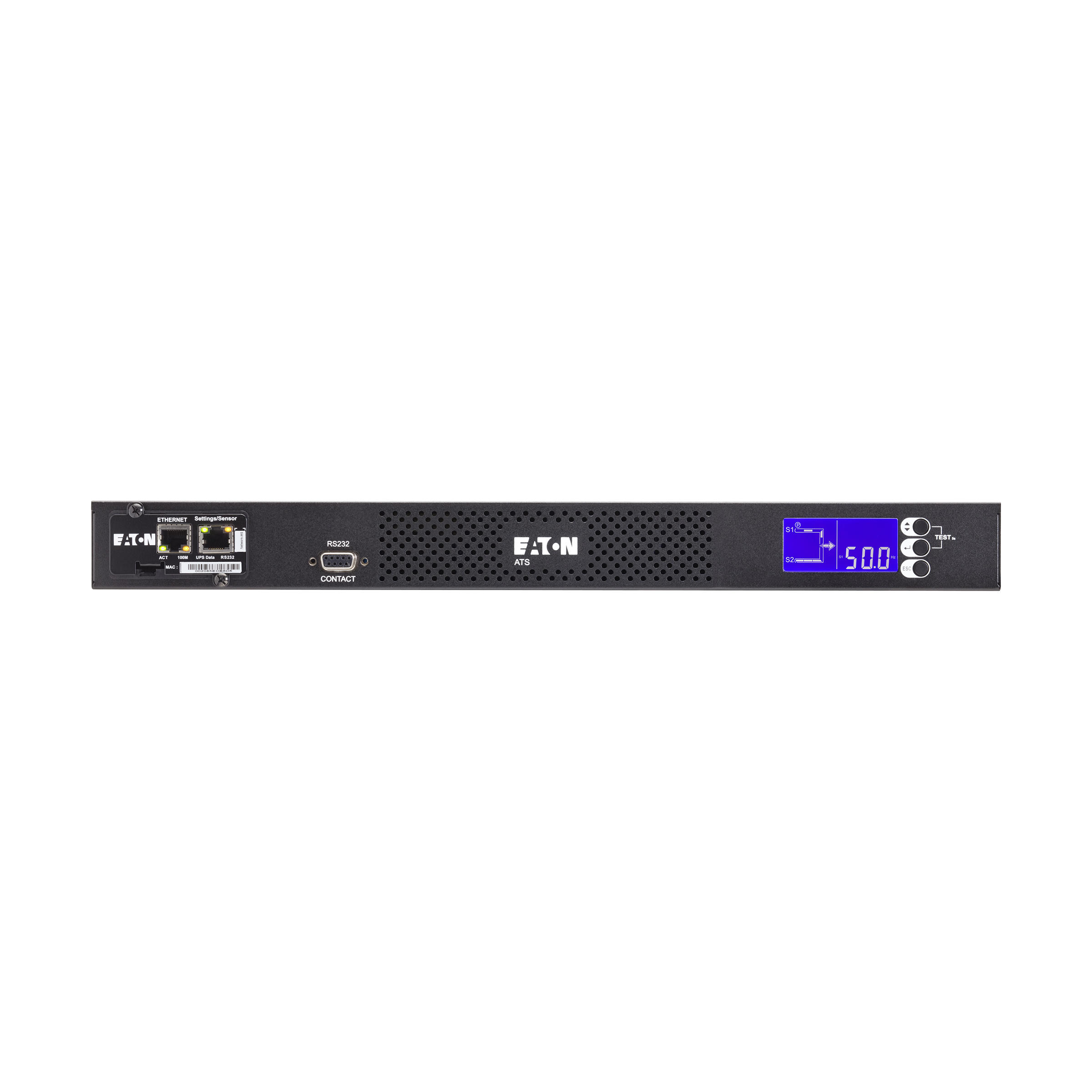

Eaton ATS rack PDU, Netpack, 1U, Inputs (2) C20, 3.84 kW max, 16A, 200-240V, Outlets 8XC13:1XC19
Specificatii
| Measurements | |
| Mounting dimension (standardised) | 482.6 mm (19 inch) |
| Mounting size | 43 |
| Cable length | 2 |
| Number of height units | 1 |
| Length | 430 |
| Width | 250 |
| Height | 43 |
| Depth | 430 |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting material | Yes |
| Connection | |
| Electrical connection | Connection cable with plug |
| Type of electric connection | C20 |
| Number of RJ45 connections | - |
| Number of USB connections | - |
| Control function | No |
| Electrical | |
| Number of phases | 1 |
| Supply voltage | 230 |
| Overvoltage category | 2 |
| Model/type | |
| Number of miniature circuit breakers (MCB) | - |
| Number of socket outlets with protective contact CEE 7/3 (type F) | - |
| Number of socket outlets with earth pin | 9 |
| Number of C13 socket outlets | 8 |
| Number of C19 socket outlets | 1 |
| Number of C20 socket outlets | 2 |
| Number of socket outlets British Standard BS 1363 | - |
| Number of socket outlets Swiss standard type 13 | - |
| Number of socket outlets Swiss standard type 15 | - |
| Number of socket outlets Swiss standard type 23 | - |
| Number of socket outlets Swiss standard type 25 | - |
| Number of other socket outlets | - |
| With surge protection module | - |
| With meter | Yes |
| With display | Yes |
| With LED indication | Yes |
| With fuse | No |
| Ampere meter | Yes |
| Options | |
| Mains filter | No |
| Switchable | No |
| SNMP | Yes |
| Temperature measurement | No |
| Other | |
| Evaluation | At distance |
| Colour | |
| Colour | Black |
| Package 1 | |
| volume | 0,031 |
| weight | 5,3 |
| length | 0,58 |
| width | 0,38 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 743172079411 |
| Package 2 | |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| Dimensions of product | |
| Volume | 0,004623 |
| Weight | 3,54 |
| Length | 0,43 |
| Width | 0,25 |
| Depth | 0,043 |
