Descriere

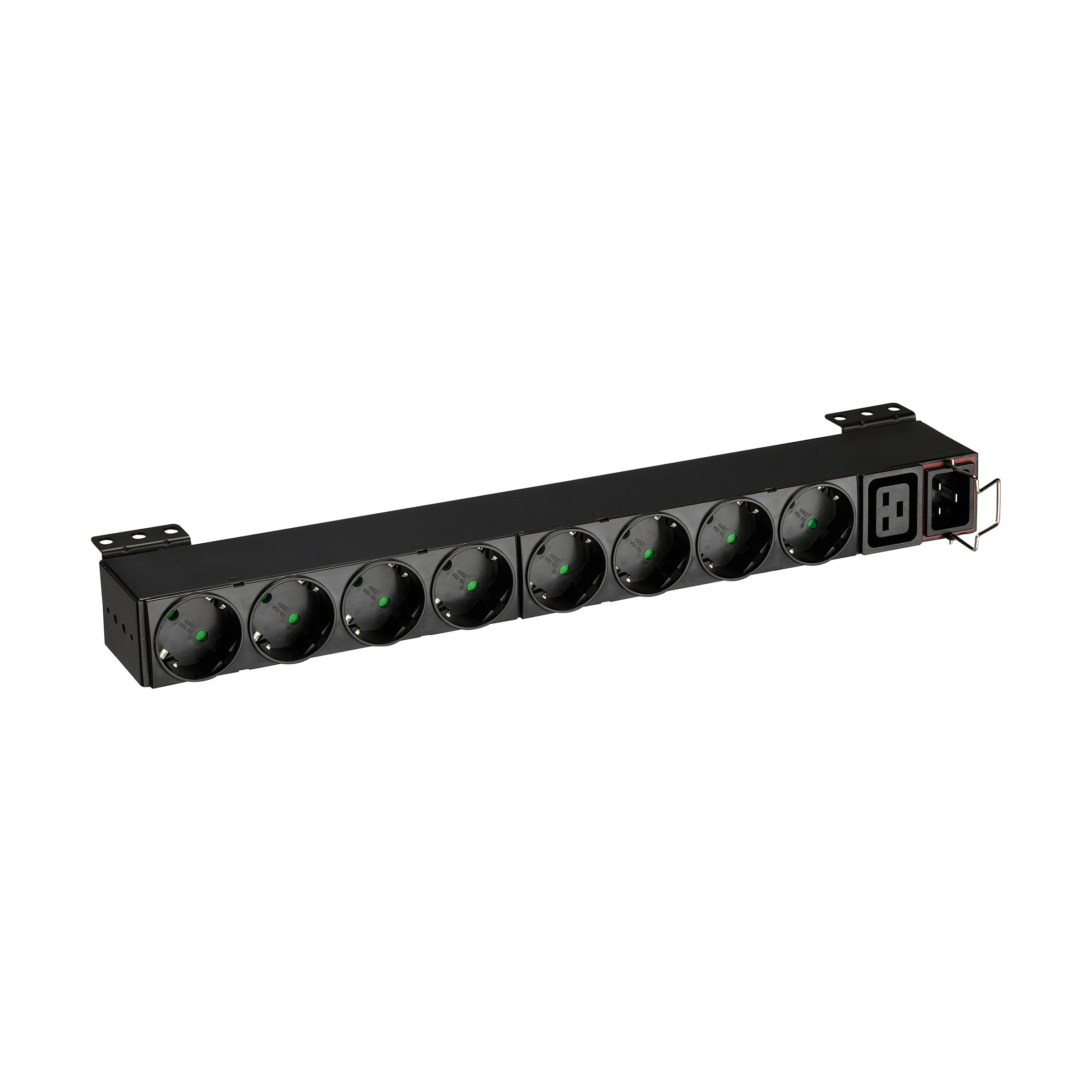

Eaton FlexPDU, 1U, C20 input, 4 kW, 16A, 200-240V, Outlets: (1) C19/(8) SHUKO, DIN
Specificatii
| Measurements | |
| Mounting dimension (standardised) | 482.6 mm (19 inch) |
| Mounting size | 44 |
| Cable length | 2 |
| Number of height units | 1 |
| Length | 80 |
| Width | 483 |
| Height | 44 |
| Depth | 80 |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting material | Yes |
| Connection | |
| Electrical connection | Socket outlet |
| Type of electric connection | C20 |
| Number of RJ45 connections | - |
| Number of USB connections | - |
| Control function | No |
| Electrical | |
| Number of phases | 1 |
| Supply voltage | 230 |
| Overvoltage category | 2 |
| Model/type | |
| Number of miniature circuit breakers (MCB) | - |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 8 |
| Number of socket outlets with earth pin | 0 |
| Number of C13 socket outlets | 0 |
| Number of C19 socket outlets | 1 |
| Number of C20 socket outlets | 0 |
| Number of socket outlets British Standard BS 1363 | 0 |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of other socket outlets | 8 |
| With surge protection module | No |
| With meter | No |
| With display | No |
| With LED indication | No |
| With fuse | No |
| Ampere meter | No |
| Options | |
| Mains filter | No |
| Switchable | No |
| SNMP | No |
| Temperature measurement | No |
| Other | |
| Evaluation | Other |
| Colour | |
| Colour | Black |
| Package 1 | |
| volume | 0,006048 |
| weight | 1,9 |
| length | 0,49 |
| width | 0,19 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 3553340684258 |
| Dimensions of product | |
| Volume | 0,0017 |
| Weight | 1,6 |
| Length | 0,08 |
| Width | 0,483 |
| Depth | 0,044 |
