Descriere

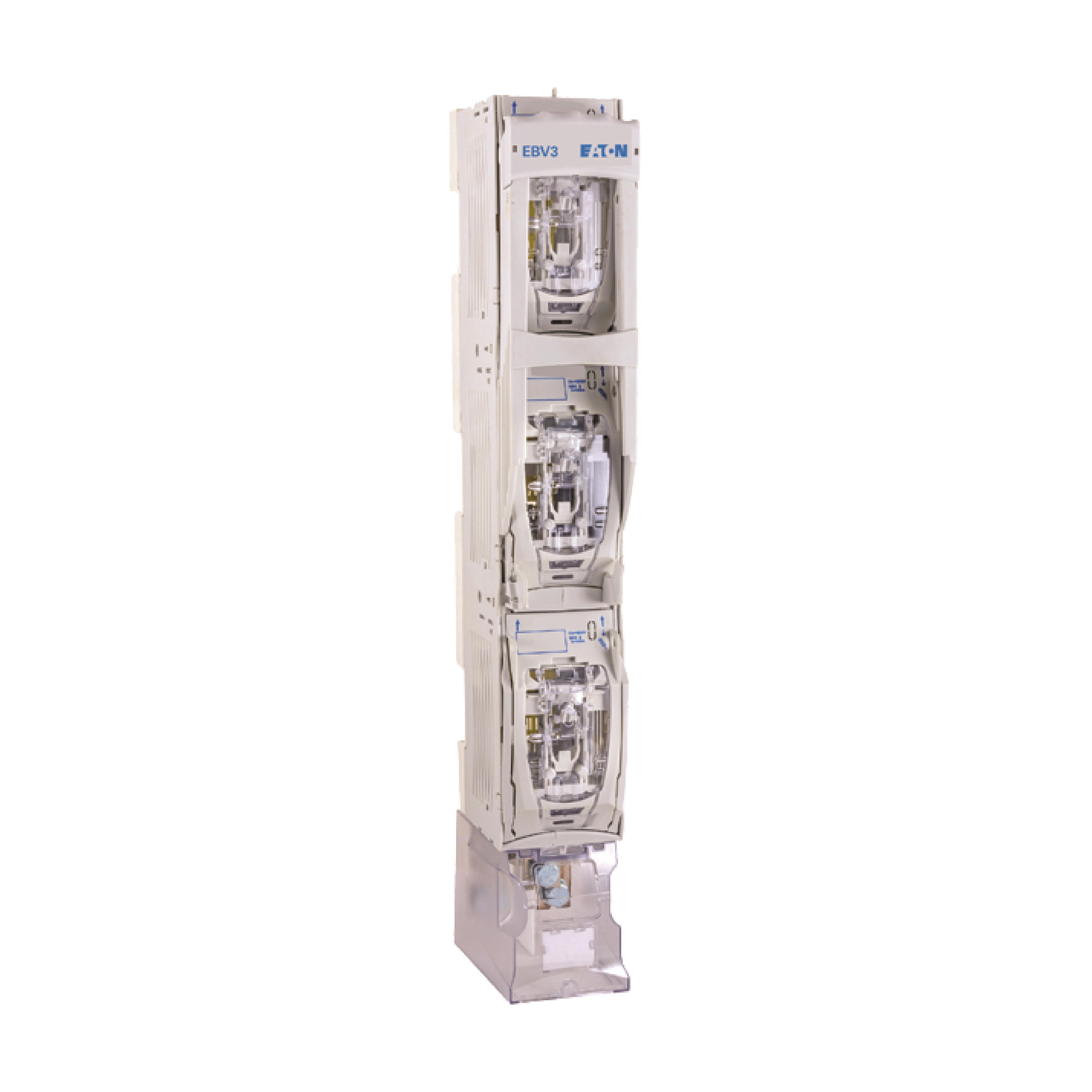

Fuse accessory, Fuse rail, low voltage, 630 A, AC 690 V, NH3, 3P, IEC, vertical, 185 mm busbar mounting, V-clamps, NH3 fuse-links, IEC 60269-1, IP20 (with fuse-link shrouds)
Specificatii
| Model/type | |
| Model | Fuse base |
| Options | |
| Double interrupting | No |
| Electrical | |
| Rated permanent current Iu | 630 |
| Max. rated operation voltage Ue AC | 690 |
| Conditioned rated short-circuit current Iq | 0.1 |
| Number of poles | 3 |
| Measurements | |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 50 mm | No |
| Distance between rail centre, 60 mm | No |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 185 mm | Yes |
| Construction size fuse insert | NH3 |
| Connection | |
| Type of electrical connection of main circuit | Cable clamp |
| Other | |
| Release indication | None |
| Package 1 | |
| volume | 0,011263 |
| weight | 4,02 |
| length | 0,675 |
| width | 0,103 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590335256 |
| Dimensions of product | |
| Volume | 0,011263 |
| Weight | 3,742 |
| Length | 0,675 |
| Width | 0,103 |
| Depth | 0,162 |
