Descriere

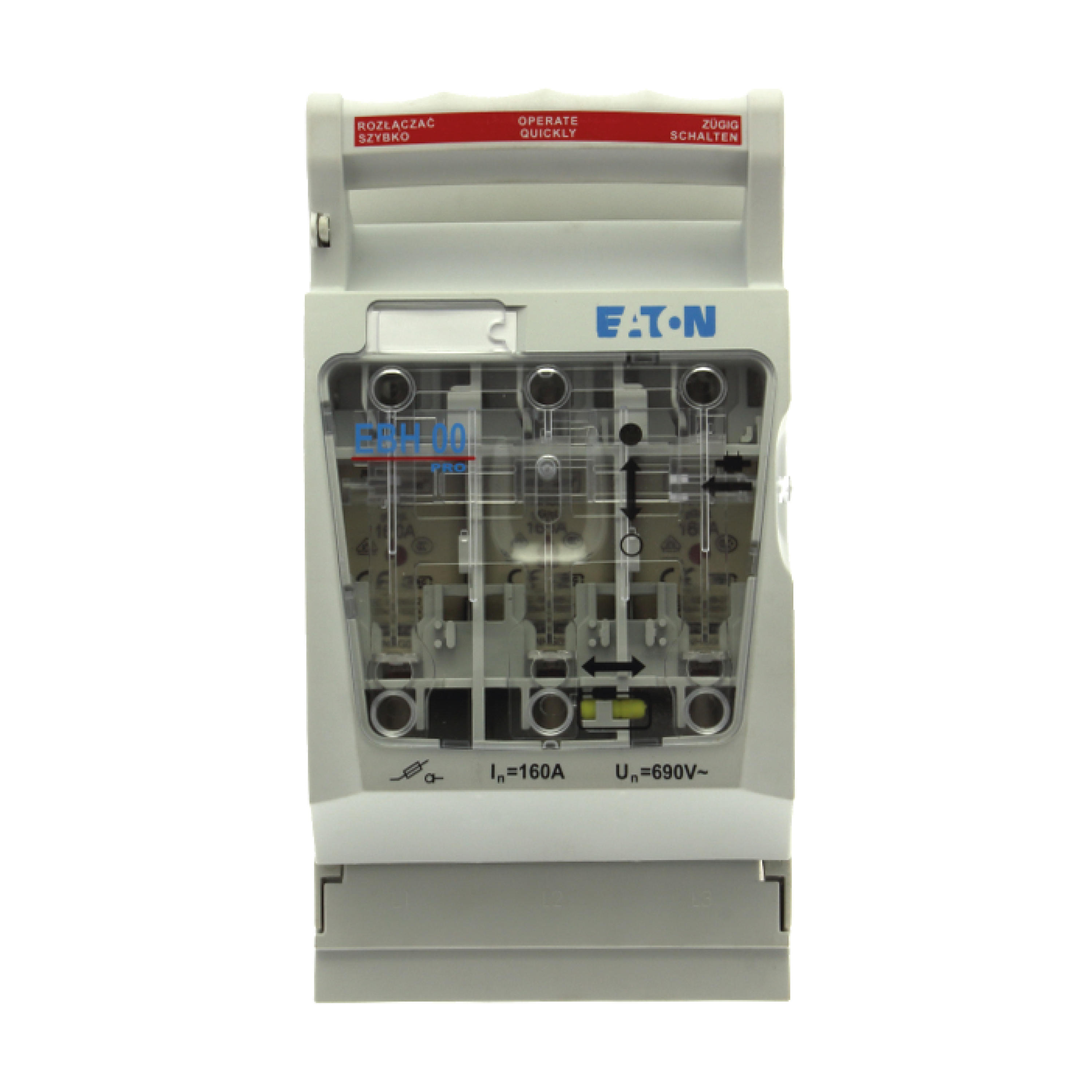

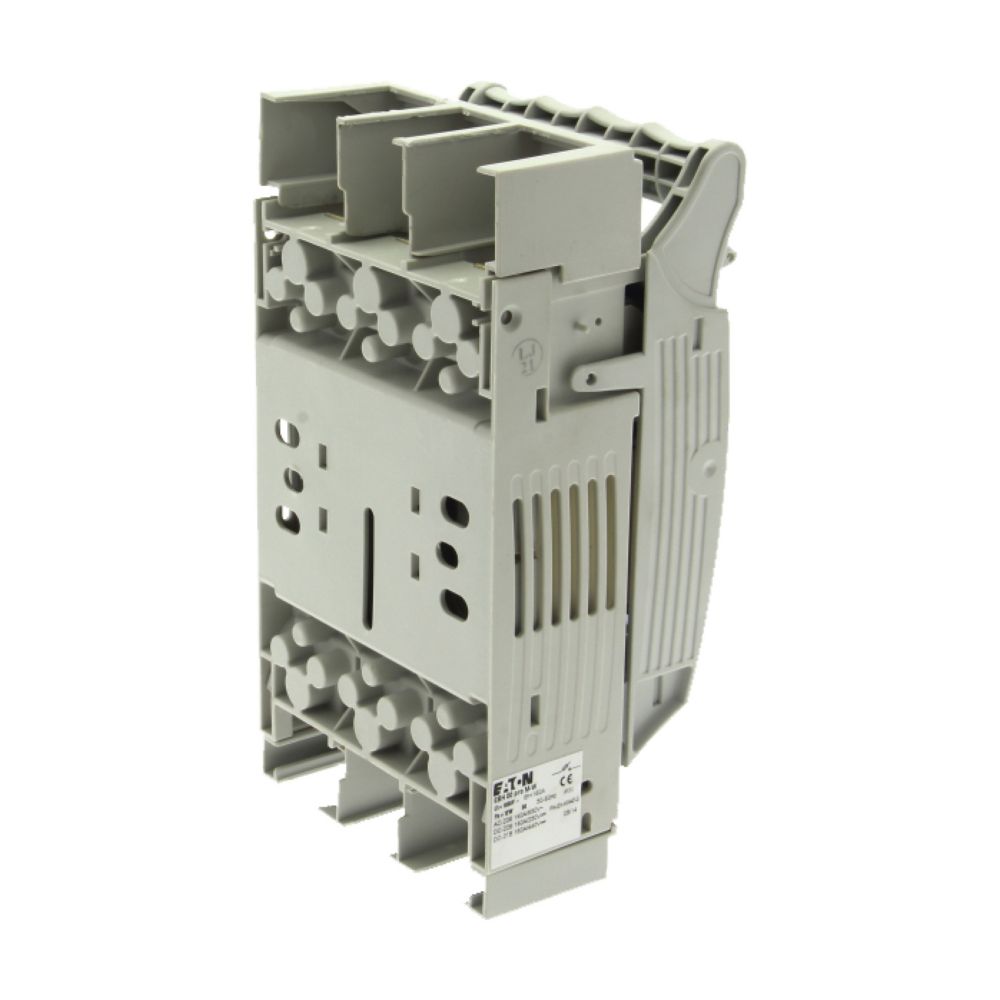

Fuse accessory, Switch disconnector, low voltage, 160 A, AC 690 V, NH00, AC23B, 3P, IEC, Horizontal, 60 mm busbar mounting, Bottom cable terminal, box terminals, NH00 fuse-links, IEC 60947-1, IEC 60947-3, IP20
Specificatii
| Model/type | |
| Version as main switch | No |
| Version as safety switch | No |
| With error protection | No |
| Type of control element | Cover grip |
| Motor drive integrated | No |
| Version as emergency stop installation | No |
| Electrical | |
| Max. rated operation voltage Ue AC | 690 |
| Rated permanent current Iu | 160 |
| Rated operation power at AC-23, 400 V | 0.064 |
| Conditioned rated short-circuit current Iq | 0.08 |
| Rated short-time withstand current lcw | - |
| Number of poles | 3 |
| Application | |
| Suitable for fuses | NH00 |
| Connection | |
| Type of electrical connection of main circuit | Cable clamp |
| Cable entry | Bottom |
| Equipped with connectors | No |
| Mounting/installation | |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for busbar mounting | Yes |
| Setting/control | |
| Position control element | Front side |
| Options | |
| Motor drive optional | No |
| Protection | |
| Degree of protection (IP), front side | IP30 |
| Package 1 | |
| volume | 0,003234 |
| weight | 1,104 |
| length | 0,21 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590335072 |
| Dimensions of product | |
| Volume | 0,003234 |
| Weight | 0,999 |
| Length | 0,21 |
| Width | 0,11 |
| Depth | 0,14 |
